Description

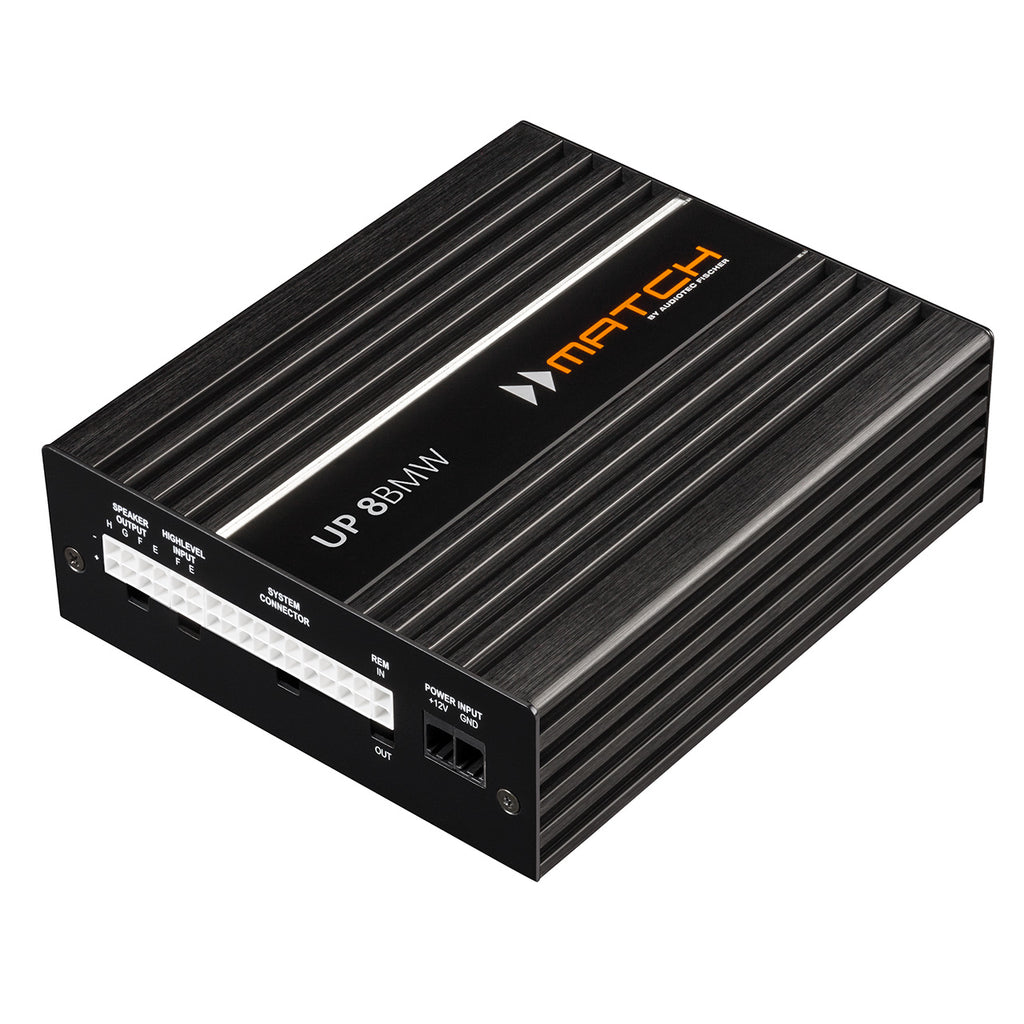

MATCH UP 8BMW
„M-Power“ for your BMW HiFi sound system
The MATCH UP 8BMW is the "M Package" for your BMW HiFi sound system! This high performance 8-channel plug & play upgrade amplifier with integrated 9-channel 64 Bit DSP was specifically designed for BMW E & F as well as G30 / G31 (pre-facelift) with HiFi sound system (Option 676). It ensures a significantly more powerful and dynamic audio experience while offering seamless integration. Because a BMW deserves sound that matches its dynamics!
ABOUT
Seamless Integration and Convenient Upgrade Options
With the UP 8BMW, a simple and seamless integration into the BMW HiFi sound system at the original installation location is easily achievable thanks to the included plug & play connection cable and BMW-specific mounting plate. To facilitate further upgrades, it is perfectly designed for combination with other MATCH UPGRADE components for BMW vehicles, such as subwoofers, 2-way systems, and center speakers. With a total of eight amplifier channels and an additional preamp output, individual speaker configurations can be easily realized, thanks to the powerful 9-channel DSP. Two amplifier channels, each delivering 160 W output power at 2 Ohms, provide enough power to boost even large subwoofers. Furthermore, the MATCH UP 8BMW boasts enhanced connectivity, featuring an intelligent 6-channel highlevel input with the ADEP.3 circuit and a MEC slot for system expansions such as Bluetooth® HD audio streaming. It also includes a 1-channel mono line output for connecting external amplifiers like the MATCH UP 1FX and an optical input in SPDIF format with a sampling rate up to 96 kHz. Last but not least, it also comes with our SCP port for optional accessories like the DIRECTOR, CONDUCTOR etc.
Virtual Channel Processing – The Modern Way of Signal Routing
The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels – so it was no question that the UP 8BMW is also equipped with Audiotec Fischer's innovative virtual channel processing. Especially when front, rear and center systems are split into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. The multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to map even highly complex system configurations and to freely assign our proprietary FX sound features. Additionally, thanks to its generous number of channels in combination with the optional MEC ANALOG IN module, the UP 8BMW is also a prime example for applications where 1 to 1 routing (IOR) makes sense.
ACO – Advanced 32 Bit CoProcessor Plattform
Of course, the UP 8BMW is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default.
DSP PC-Tool 5 feat. TuneEQ – Powerful features for the ultimate sound experience
Of course, the MATCH UP 8BMW can be easily configured via our professional and exceptionally intuitive DSP PC-Tool 5. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the proprietary TuneEQ function for automated frequency response correction, you also save a lot of time when optimizing your sound.
Features
- High-performance 8-channel Plug & Play upgrade amplifier with integrated 9-channel 64 Bit DSP for significantly more power and dynamics
- Specially developed for BMW E & F as well as G30 / G31 (pre-facelift) models with BMW HiFi sound system (Option 676)

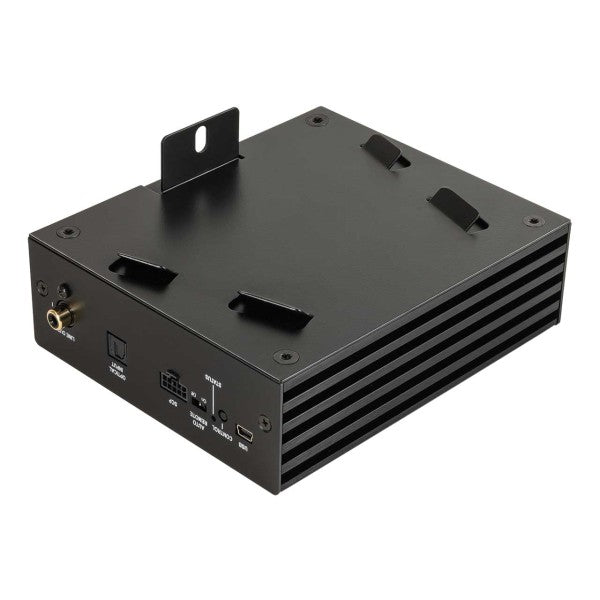

- Easy and seamless installation at the original mounting location via included Plug & Play connection cable and mounting plate*
- Perfectly combinable with MATCH UPGRADE components – subwoofer, 2-way system & center speaker
- ACO – Advanced 32 Bit CoProcessor platform for extended feature set
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
- Proprietary TuneEQ function for automated adjustment of the output equalizers
- SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.

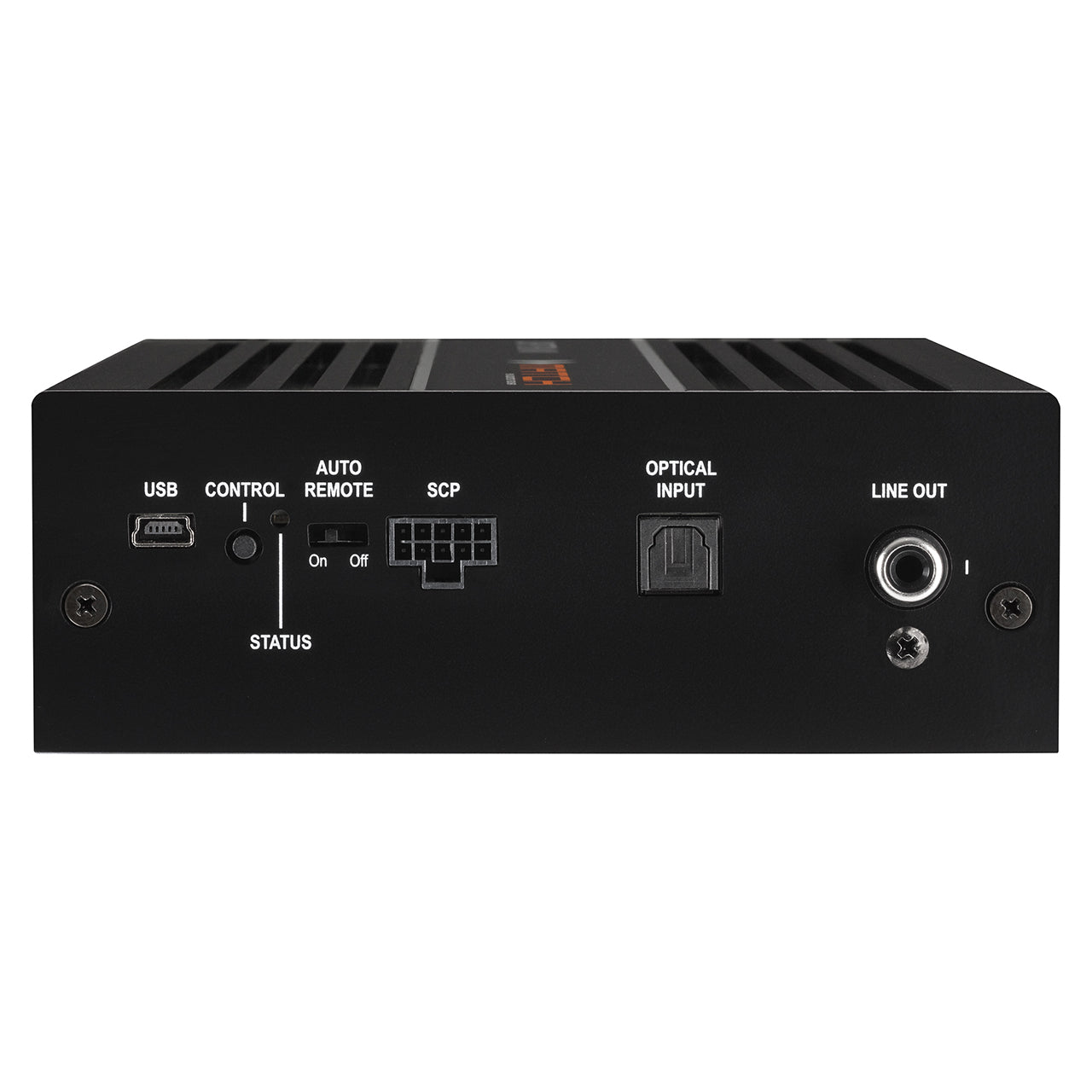

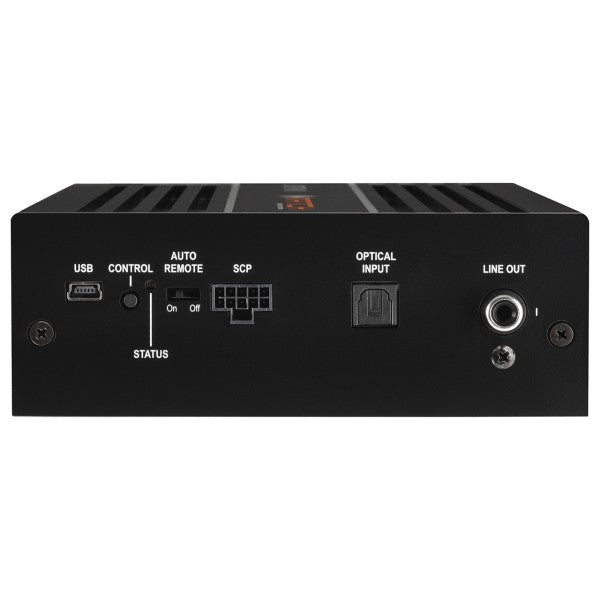

- MEC slot for system expansions like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc.
- Start-Stop capability down to 6V supply voltage
- Mono RCA output for the connection of an external amplifier e.g. subwoofer amplifier MATCH UP 1FX
- Optical input in SPDIF format with sampling rate between 12 and 96 kHz
- SCP (Smart Control Port) for optional accessory like DIRECTOR, CONDUCTOR & Co.
- Easiest configuration via the intuitive DSP PC-Tool Software incl. VCP (Virtual Channel Processing) and TuneEQ
* Mounting plate not suitable for 1-series E models
Special Features:
Class GD technology
Audiotec Fischer´s proprietary Class GD concept takes the efficiency of conventional Class D amps to the next level. By varying the internal supply voltage in several steps depending on the amplifier’s input signals, idle losses are significantly reduced and overall efficiency is close to maximum at any time. So heat dissipation is almost negligible, thus allowing smallest heat sinks and most compact form factors.
ACO – Advanced 32 Bit CoProcessor
The UP 8BMW incorporates an extraordinary powerful 32 Bit CoProcessor of the latest generation. This not only takes over all control tasks ultra-fast, but also the lightning-fast switching between up to ten possible sound setups.
But ACO offers much more – besides a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios and fantastic sound effects like Augmented Bass Processing or RealCenter, there is now the revolutionary TuneEQ function for automated adjustment of the output equalizers.
A further significant advantage is the integrated, native boot loader of the CoProcessor. It allows software upgrades of all components of the DSP in order to adjust the microcontroller-controlled ADEP.3 circuit for example at future modifications / changes in the diagnostic system of factory radios or if the device will be extended with additional interfaces.
Smart highlevel input ADEP.3
Modern, factory-installed car radios incorporate sophisticated possibilities of diagnosing the connected speakers. In particular the latest generation of BMW car radios are equipped with additional monitoring functions so that failure messages and loss of specific features (e.g. fader function) quite often appear if a common amplifier will be hooked up - but not with the UP 8BMW.
The new ADEP.3 circuit (Advanced Diagnostics Error Protection, 3rd Generation) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the MATCH UP 8BMW assures a constant internal supply voltage even if the battery’s voltage drops to 6 Volts during engine crank. If the supply voltage drops below 10.5 Volts for more than five seconds the amplifier goes to “Protect mode” (Status LED lights up red) in order to avoid any further discharge of the car’s battery.
Automatic Digital Signal Detection
Switching from analog input to the digital input is done automatically as soon as a signal is detected on the Optical Input. This feature can be deactivated in the DSP PC-Tool software. Alternatively you can use an optional remote control for manual switching between analog and digital inputs.
Power Save Mode
The Power Save Mode is incorporated in the basic setup. It allows to significantly reduce the power consumption of the UP 8BMW and potentially connected amplifiers once there’s no input signal present for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the radio remains “invisibly” turned on for up to 45 min. even after locking and leaving the car! Once the “Power Save Mode“ is active the remote output and therefore the connected amplifiers will be turned off. The MATCH UP 8BMW will reactivate the remote output within a second if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save Mode” via the DSP PC-Tool software.
Note: “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Audiotec Fischer GmbH is under license. Other trademarks and trade names are those of their respective owners.”
DSP features
TuneEQ
TuneEQ is an extremely flexible and particularly easy-to-use function for automated frequency response correction. A single measurement per audio channel or channel pair with a suitable measurement microphone (e.g. our MTK1) is sufficient for TuneEQ to independently and precisely adjust the equalizers to the desired reference curve. TuneEQ uses the full function set of the parametric equalizer including center frequency, Q-factor and gain adjustment. And since the highly complex arithmetic operations required for this run in the background, you also save a lot of time when optimizing your sound with TuneEQ.
RealCenter
The “RealCenter” feature is an algorithm, developed by Audiotec Fischer, that emphasizes the music information which is present in both the left and right front channel to create an unique center signal. In contrast to common procedures, in which only the channels are summed up, the intensity of the center signal is also dynamically controlled by the stereophonic informational content of the left and right channel.
Sounds complicated but this effect is astonishing: That means if solely the left or right channel delivers an audio signal, the center channel will not reproduce a signal. In the case of common algorithms, the volume level of the center channel is only reduced by 6 dB (= half volume level). Audiotec Fischer’s “RealCenter” allows a unique, broadened sound staging for both driver and co-driver at the same time! Therefore, the disadvantages of a conventional center channel, such as an intrusive, small sound stage, are things of the past.
Augmented Bass Processing
Audiotec Fischer’s proprietary “Augmented Bass Processing”, consisting of the two revolutionary sound features “Dynamic Bass Enhancement” and “SubXpander”, has been especially developed to dramatically improve the bass reproduction of subwoofers.
The “Dynamic Bass Enhancement” ingeniously combines maximum deep bass and highest sound pressure – regardless of the music style or the tone controls in the head unit. Depending on the input signal, the “Dynamic Bass Enhancement” gains the lower frequency range and varies the cut-off frequency of the subsonic filter. The result is a significantly more powerful and deeper bass response at low and medium volume levels without the risk of overloading the subwoofer neither mechanically nor electrically at high volume levels. It is simply fascinating which bass performance is suddenly possible.
If you want an even lower and “darker” bass reproduction, the “SubXpander” can be additionally activated. Therefore, subharmonic tones are added to the fundamental tones in the frequency range between 50 and 100 Hz.
Technical data
| Output power RMS | |
| - @ 4 Ohms | Channels A - F: 6 x 65 Watts |
| - @ 2 Ohms | - |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| - Subwoofer output @ 4 Ohms | Kanal G - H: 2 x 90 Watts |
| - Subwoofer output @ 2 Ohms | Kanal G - H: 2 x 160 Watts |
| Amplifier technology | Class GD |

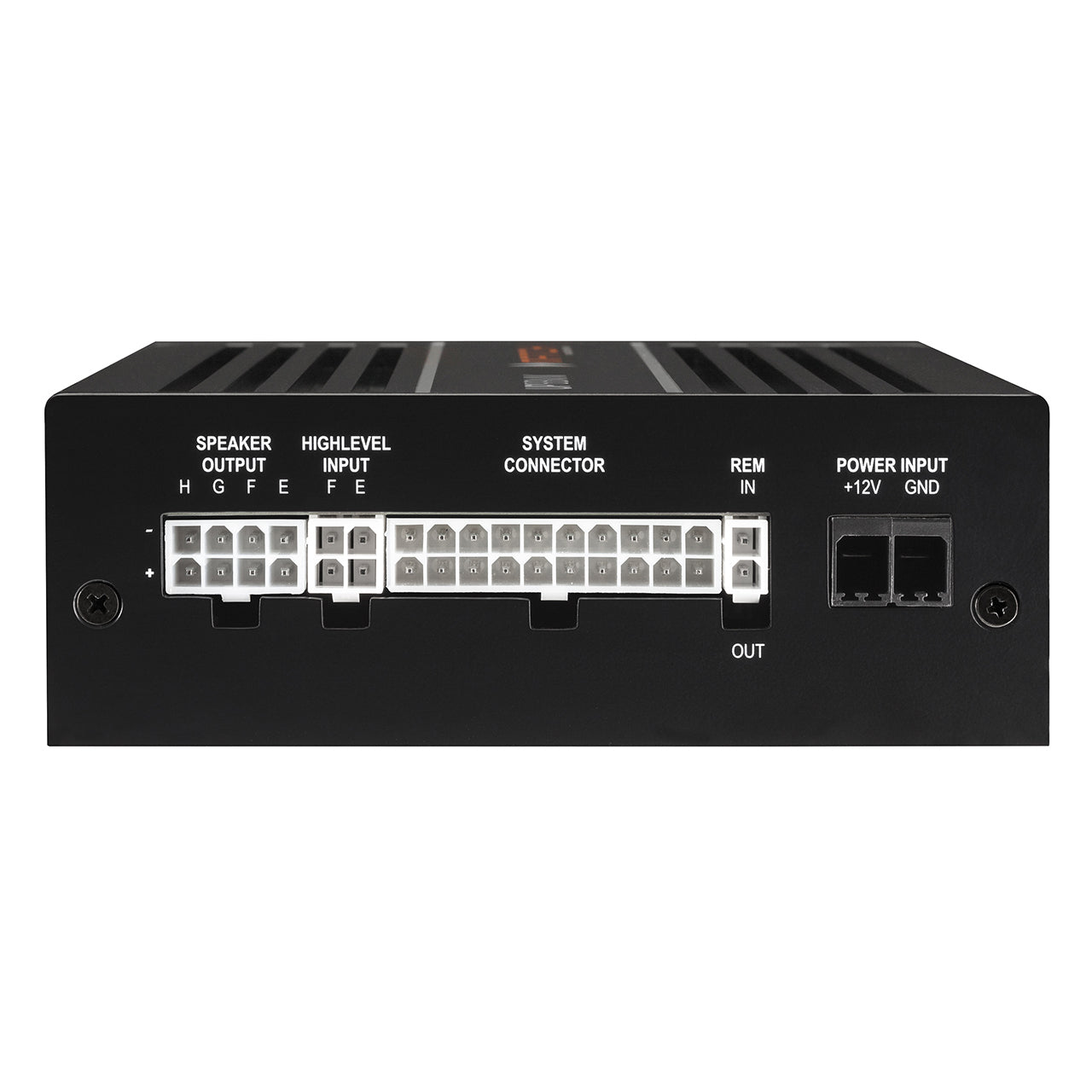

| Inputs | 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x MEC 1 x Remote In |
| Input sensitivity | 2.8 - 11 Volts |
| Input impedance RCA / Cinch | - |
| Input impedance highlevel | 9 - 33 Ohms with ADEP.3 |
| Outputs | 8 x Speaker output 1 x RCA / Cinch 1 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 10 Hz - 22,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 48 kHz |
| DSP type | Audio signal processor |
| Signal converters | A/D: BurrBrown D/A: BurrBrown |
| Signal-to-noise ratio digital input | 106 dB (A-weighted) |
| Signal-to-noise ratio analog input | 104 dB (A-weighted) |
| Distortion (THD) | < 0.03 % |
| Damping factor | > 100 |
| Operating voltage | 10.5 - 17 Volts (max. 5 sec. down to 6 Volts) |
| Power rating | DC 12 V ⎓ 40 A max. |
| Idle current | 380 mA |
| Max. remote output current | 500 mA |
| Operating temperature range | -40° C to +70° C |
| Fuse | 1 x 25 A LP-Mini-fuse (APS) |
| Additional features | Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out |
| Dimensions (H x W x D) | 46 x 130 x 153 mm / 1.81 x 5.12 x 6.02" |
Compatibility
Compatible for BMW E & F as well as G30 / G31 (pre-facelift) models with BMW HiFi sound system (option 676). All models with RAM module are excluded (vehicles from 09/2019). Mounting plate not suitable for 1-series E models.
Please check the vehicle compatibility via the Upgrade-Finder.

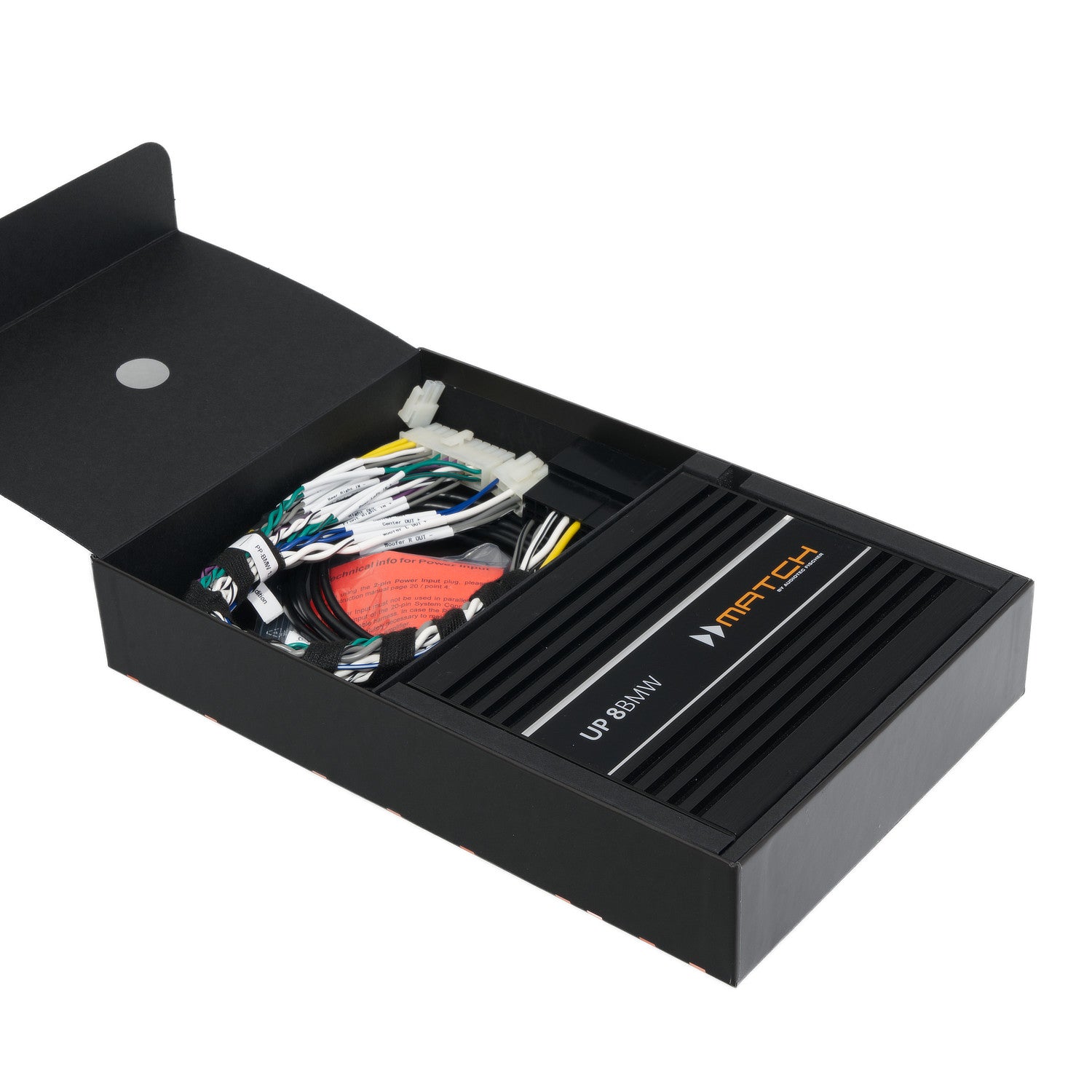

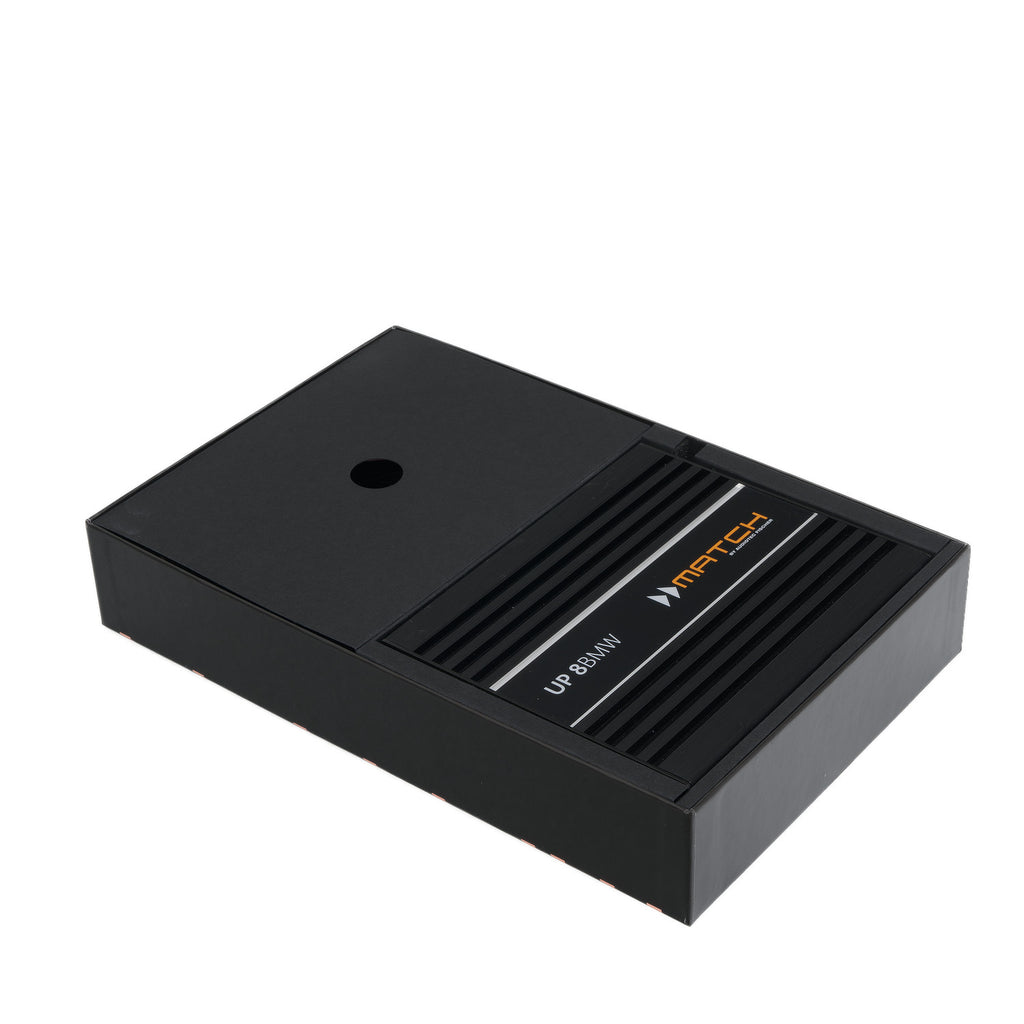

Scope of delivery
1 x Amplifier MATCH UP 8BMW

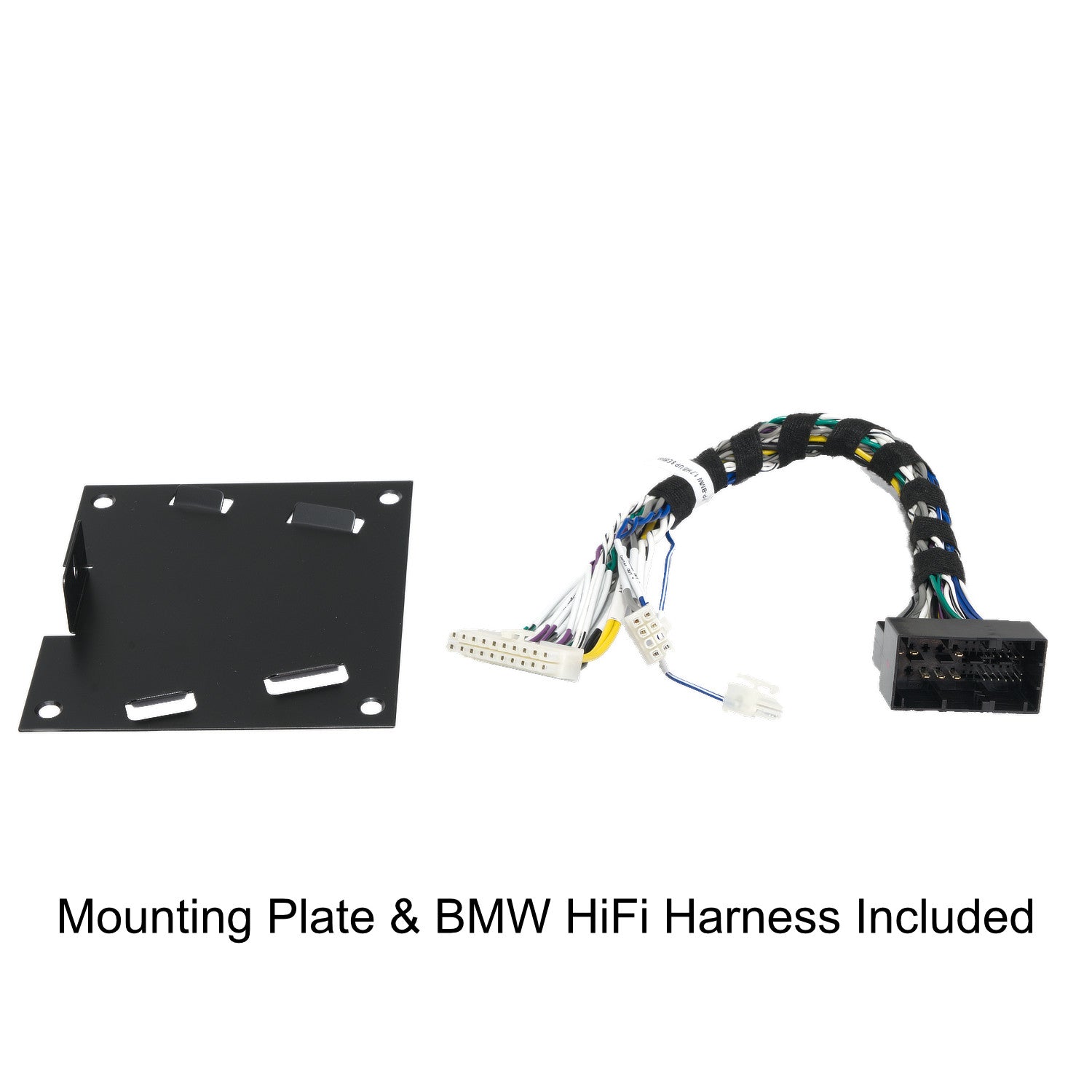

1 x BMW HiFi Plug & Play connection cable
1 x Mounting plate & material for BMW vehicles
1 x Power Input plug
1 x USB cable
1 x Instruction manual
