MATCH PP-TES 5.15 V EIGHTEEN Extension - Extension harness for PP-TES 5.15 Ryzen Premium to Fit HELIX V EIGHTEEN DSP
Click on image to zoom in Click on image to zoom
MATCH PP-TES 5.15 V EIGHTEEN Extension - Extension harness for PP-TES 5.15 Ryzen Premium to Fit HELIX V EIGHTEEN DSP

Product parameters


  • Car Specific: Tesla
  • Application: For Amplifiers / DSP
  • Type: Harness

MATCH PP-TES 5.15 V EIGHTEEN Extension - Extension harness for PP-TES 5.15 Ryzen Premium to Fit HELIX V EIGHTEEN DSP

MATCHSKU: PP-TES 5.15 V EIGHTEEN Extension
Price:
$250.00

incl. GST

Inventory:
In stock, 1 unit
Improved shipping rates on orders over $1000

Pickup available at Rockdale NSW, Australia

Usually ready in 24 hours

Product parameters


  • Car Specific: Tesla
  • Application: For Amplifiers / DSP
  • Type: Harness

Description

Overview

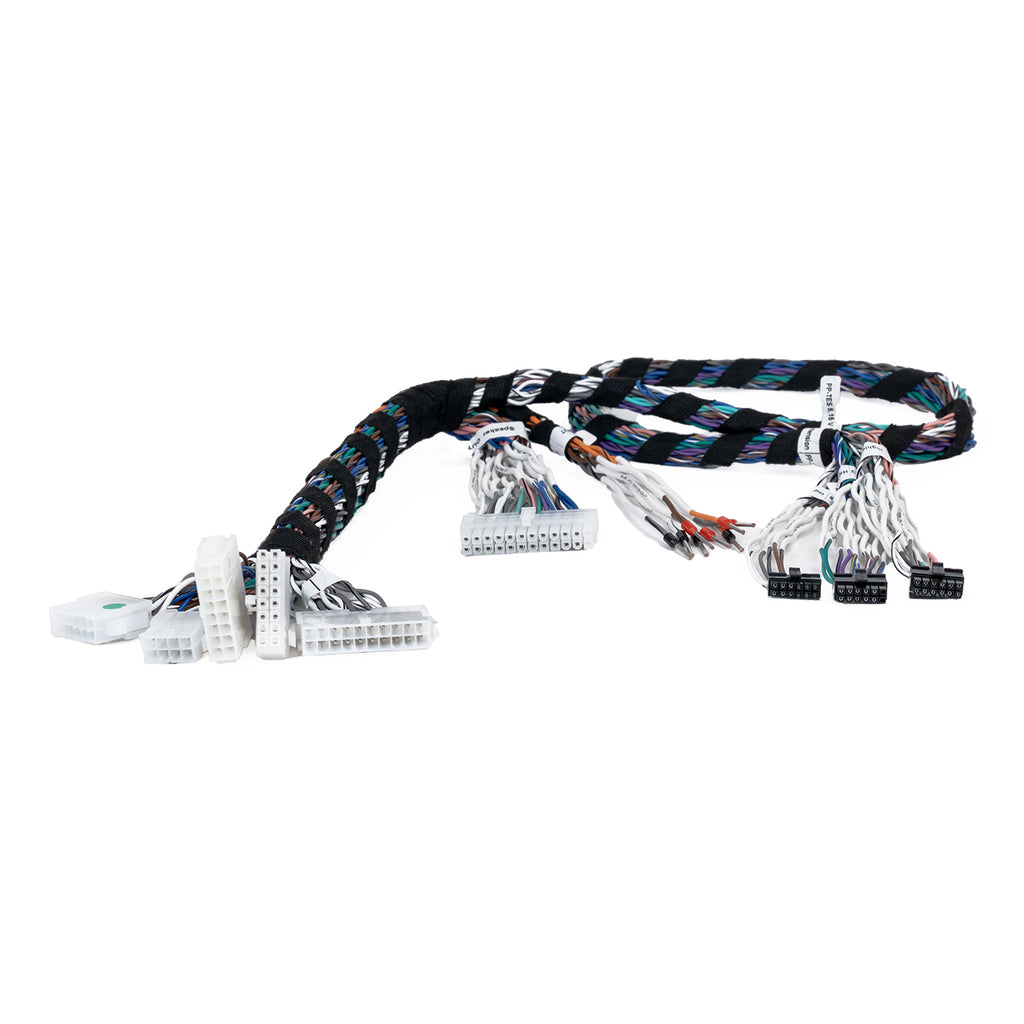

The MATCH PP-TES 5.15 V EIGHTEEN Extension cable harness expands the 15-channel upgrade harness MATCH PP-TES 5.15 Ryzen Premium Main and, in combination, enables the easy connection of all audio signals of a HELIX V EIGHTEEN DSP amplifier.

This applies to sound upgrades in Tesla Model 3 vehicles from model year 03/2022 to 09/2023 and Tesla Model Y vehicles from model year 02/2022 to 01/2025 with Ryzen chipset and factory-installed premium sound system.

The extension harness connects directly to the PP-TES 5.15 Ryzen Premium Main and extends its connection capabilities. This allows all 15 speakers to be driven directly by the HELIX V EIGHTEEN DSP amplifier – for a more powerful and dynamic sound experience while fully retaining the 3D immersive sound experience. This results in a particularly powerful and individually configurable premium sound system.

Features

  • Extension harness for the MATCH PP-TES 5.15 Ryzen Premium Main cable harness
  • Plug & Play connectors for connecting a HELIX V EIGHTEEN DSP amplifier
  • Designed for sound upgrades in Tesla Model 3 (MY 03/2022 to 09/2023) and Tesla Model Y (MY 02/2022 to 01/2025) with Ryzen chipset and premium sound system – in combination with the PP-TES 5.15 Ryzen Premium Main
  • Easy integration via Plug & Play connection to the main harness
  • Cable harness length 1 meter

Technical data

Cable length

1 meter

Connectors

5 x MOLEX connectors for connection to the PP-TES 5.15 Ryzen Premium Main cable harness
1 x 24-pin MOLEX plug for connecting the speaker outputs 1 – 12 of the V EIGHTEEN DSP
8 x speaker connection cables for connecting the speaker outputs 13 – 16 of the V EIGHTEEN DSP
1 x 12-pin connection plug for the highlevel inputs 1 – 6 of the V EIGHTEEN DSP
1 x 12-pin connection plug for the highlevel inputs 7 – 12 of the V EIGHTEEN DSP
1 x 12-pin connection plug for the highlevel inputs 13 – 18 of the V EIGHTEEN DSP

Compatibility

The MATCH PP-TES 5.15 V EIGHTEEN Extension harness can only be used in combination with the MATCH PP-TES 5.15 Ryzen Premium Main harness.

  • Amplifiers:
    • HELIX V EIGHTEEN DSP
  • Vehicle compatibility is defined by the PP-TES 5.15 Ryzen Premium Main harness and includes:
    • Tesla Model 3 with Ryzen chip set and premium sound system from MY 3/2022 bis 9/2023
    • Tesla Model Y with Ryzen chip set and premium sound system from MY 2/2022 bis 1/2025
  • Further information about the vehicle compatibility can be found in our Connection Finder

Scope of delivery

1 x Plug & Play cable harness PP-TES 5.15 V EIGHTEEN Extension
