Description
Overview

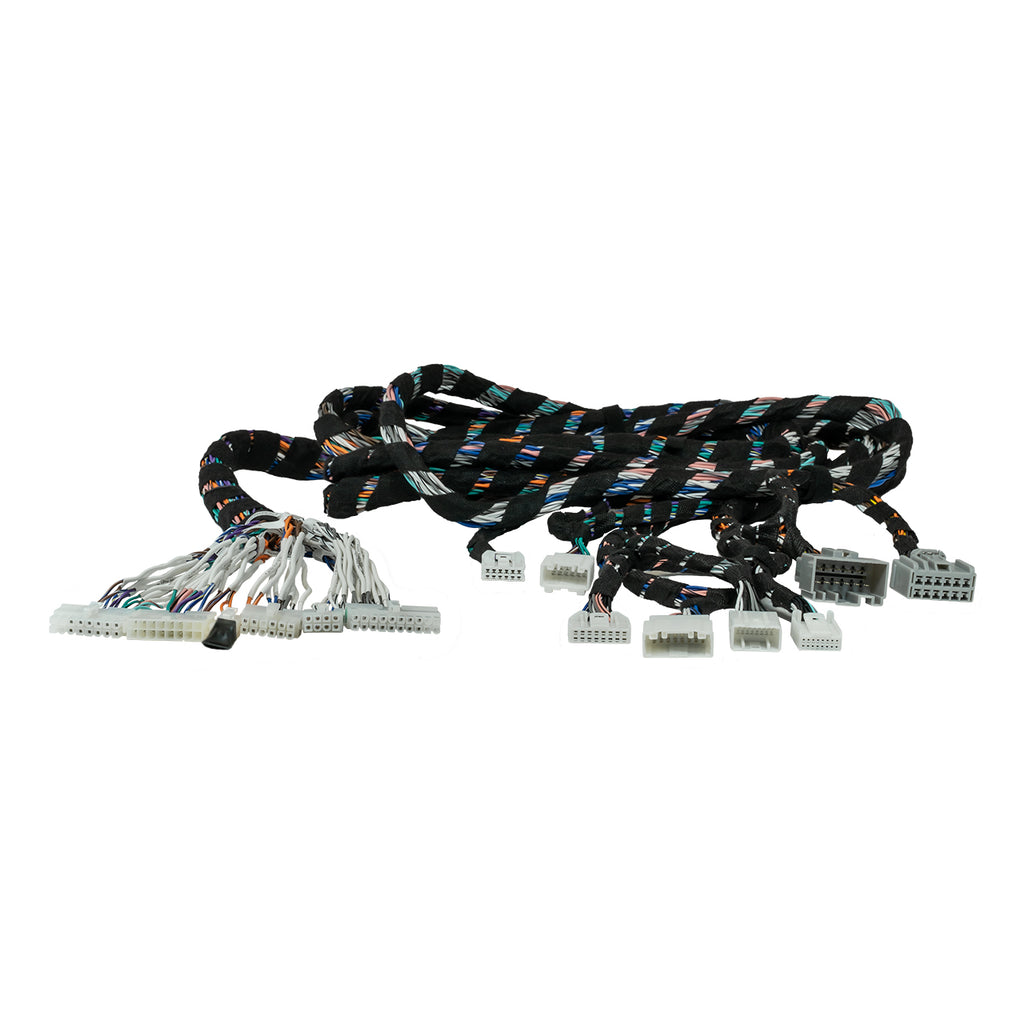

The 15-channel upgrade cable harness enables the easy and optimal connection of a MATCH UP 10DSP amplifier (with integrated Extension Card 2.0 – ANALOG IN or MEC ANALOG IN) to vehicles with Ryzen chipset and factory-installed premium sound system. For simple installation with optimal sound improvement and an attractive price-performance ratio, the audio signals of the 3-way front speakers, the center speaker and the subwoofer are connected to the MATCH UP 10DSP. This results in more power, greater dynamics and a significantly more precise sound reproduction. The rear and immersive speakers remain connected to the original Tesla amplifier.
Compatible with:
- Tesla Model 3 from model year 03/2022 to 09/2023
- Tesla Model Y from model year 02/2022 to 01/2025
The harness also forms the basis for more advanced sound upgrades. In combination with the MATCH PP-TES 5.15 V EIGHTEEN Extension harness, the system can be expanded to a HELIX V EIGHTEEN DSP amplifier. All 15 speakers are then driven directly by the amplifier – for a more powerful and dynamic listening experience while fully retaining the 3D immersive sound technology.
Important note:
The UP 10DSP amplifier must be equipped with an Extension Card 2.0 – ANALOG IN or MEC ANALOG IN.
Features
- Plug & Play connectors for easy connection of the audio signals of a MATCH UP 10DSP MK2 with integrated Extension Card 2.0 – ANALOG IN or the UP 10DSP MK1 equipped with a MEC ANALOG IN – the amplifier’s power supply must be wired separately
- Tesla-specific connectors for connecting the vehicle cable harness
- Further information about the vehicle compatibility can be found in our Connection Finder.
- Cable length 5 meters
- Optionally expandable with the MATCH PP-TES 5.15 V EIGHTEEN Extension harness for connecting a HELIX V EIGHTEEN DSP amplifier
Technical data
|
Cable length |
5 meters |
|
Connectors |
1 x 20-pin MOLEX plug for connecting the System Connector input of the UP 10DSP |
Compatibility
- Amplifiers:
- MATCH UP 10DSP MK2 with integrated Extension Card 2.0 - ANALOG IN
- MATCH UP 10DSP MK21with integrated MEC ANALOG IN
- Optionally in combination with MATCH PP-TES 5.15 V EIGHTEEN Extension cable harness HELIX V EIGHTEEN DSP
- Tesla models:
- Tesla Model 3 with Ryzen chip set and premium sound system from model year 03/2022 to 09/2023
- Tesla Model Y with Ryzen chip set and premium sound system from model year 02/2022 to 01/2025
- Further information about the vehicle compatibility can be found in our Connection Finder
Scope of delivery
1 x Plug & Play cable harness PP-TES 5.15 Ryzen Premium Main
