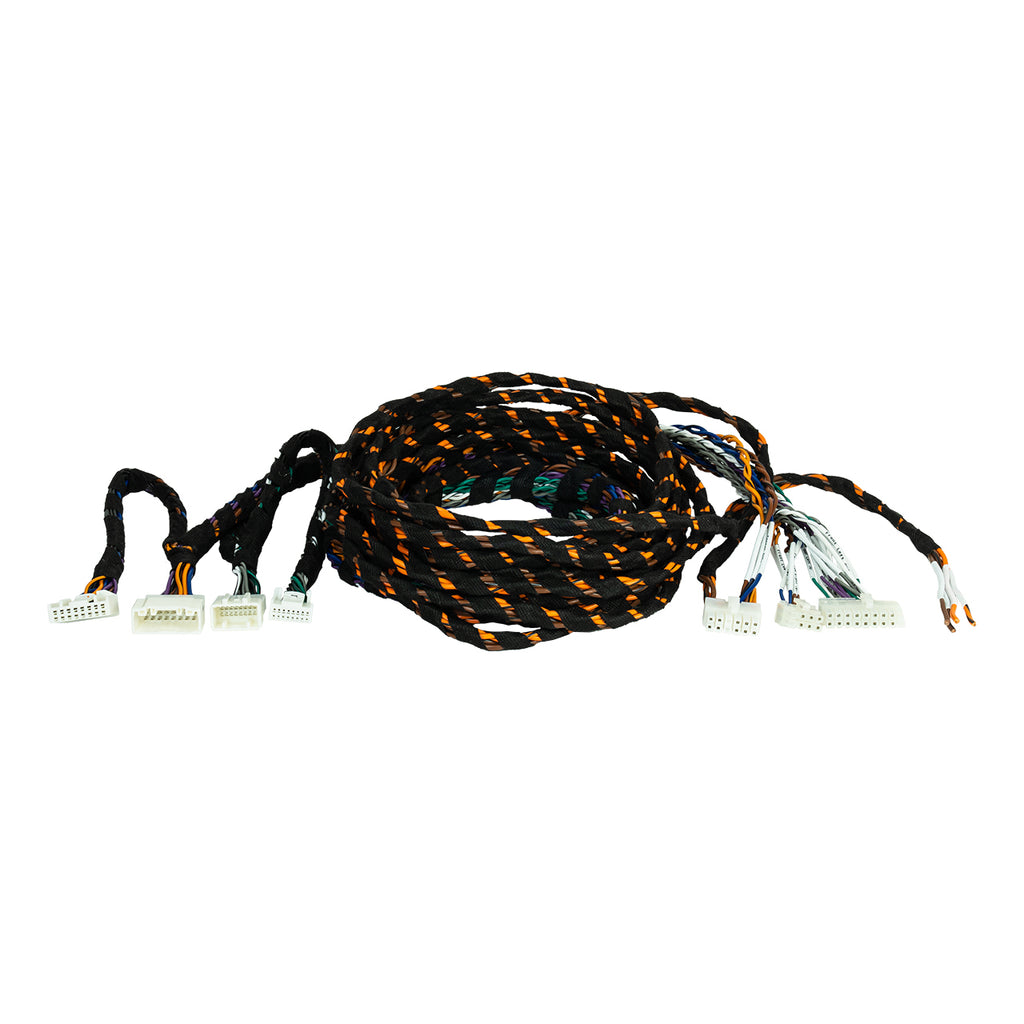

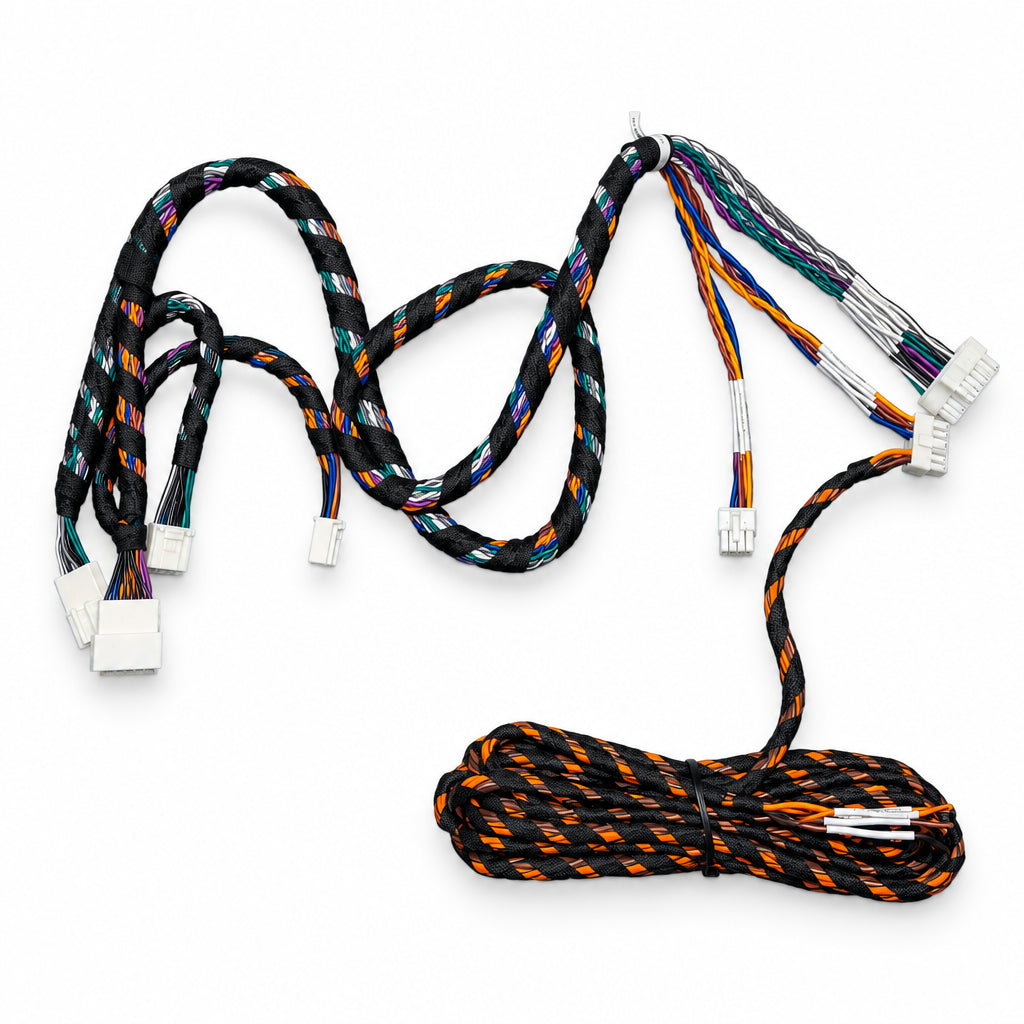

MATCH PP-TES 1.7B Highland - Harness For MATCH UP 10DSP Amplifier To Fit Tesla Model 3 Highland and Model Y Juniper
Click on image to zoom in Click on image to zoom
MATCH PP-TES 1.7B Highland - Harness For MATCH UP 10DSP Amplifier To Fit Tesla Model 3 Highland and Model Y Juniper

Product parameters


  • Car Specific: Tesla
  • Application: For Amplifiers / DSP
  • Type: Harness

MATCH PP-TES 1.7B Highland - Harness For MATCH UP 10DSP Amplifier To Fit Tesla Model 3 Highland and Model Y Juniper

MATCHSKU: PP-TES 1.7B Highland
Price:
$250.00

incl. GST

Inventory:
Re-stocking soon
Improved shipping rates on orders over $1000

Pickup available at Rockdale NSW, Australia

Usually ready in 24 hours

Product parameters


  • Car Specific: Tesla
  • Application: For Amplifiers / DSP
  • Type: Harness

Description

Overview

The UPGRADE cable harness PP-TES 1.7B Highland enables the simple connection of a MATCH UP 10DSP amplifier to Tesla Model 3 (Highland – from MY 10/2023) and Model Y (Juniper – from MY 2/2025) with Ryzen chip set and factory installed standard sound system.

Features

  • Plug & Play connectors for easy connection of the audio signals of a MATCH UP 10DSP amplifier – the amplifier’s power supply must be wired separately
  • Tesla system plugs for connecting the vehicle cable harness
  • 5.0 meters connection cable for the connection of a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series
  • Cable length 1.00 meter

Technical data

Cable length

1.00 meter

Connectors

1 x 20-pin MOLEX plug for the connection of the System Connector input of the UP 10DSP
1 x 8-pin MOLEX plug for the connection of the highlevel inputs E - H of the UP 10DSP
1 x 12-pin MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP
1 x connection cable (5.0 meters) for the connection of a separate 2 x 2 Ohms subwoofer, e.g. HELIX IMPACT K series
1 x 16-pin Tesla system jack
1 x 16-pin Tesla system plug

Compatibility

  • Compatible with MATCH UP 10DSP amplifier
  • Compatible Tesla models:
    • Model 3 vehicles with Ryzen chip set and factory installed standard sound system (Highland – from MY 10/2023)
    • Model Y vehicles with Ryzen chip set and factory installed standard sound system (Juniper – from MY 2/2025)
  • Further information about the vehicle compatibility can be found in our Connection Finder.

Scope of delivery

1 x MATCH UPGRADE cable harness PP-TES 1.7B Highland
