Overview

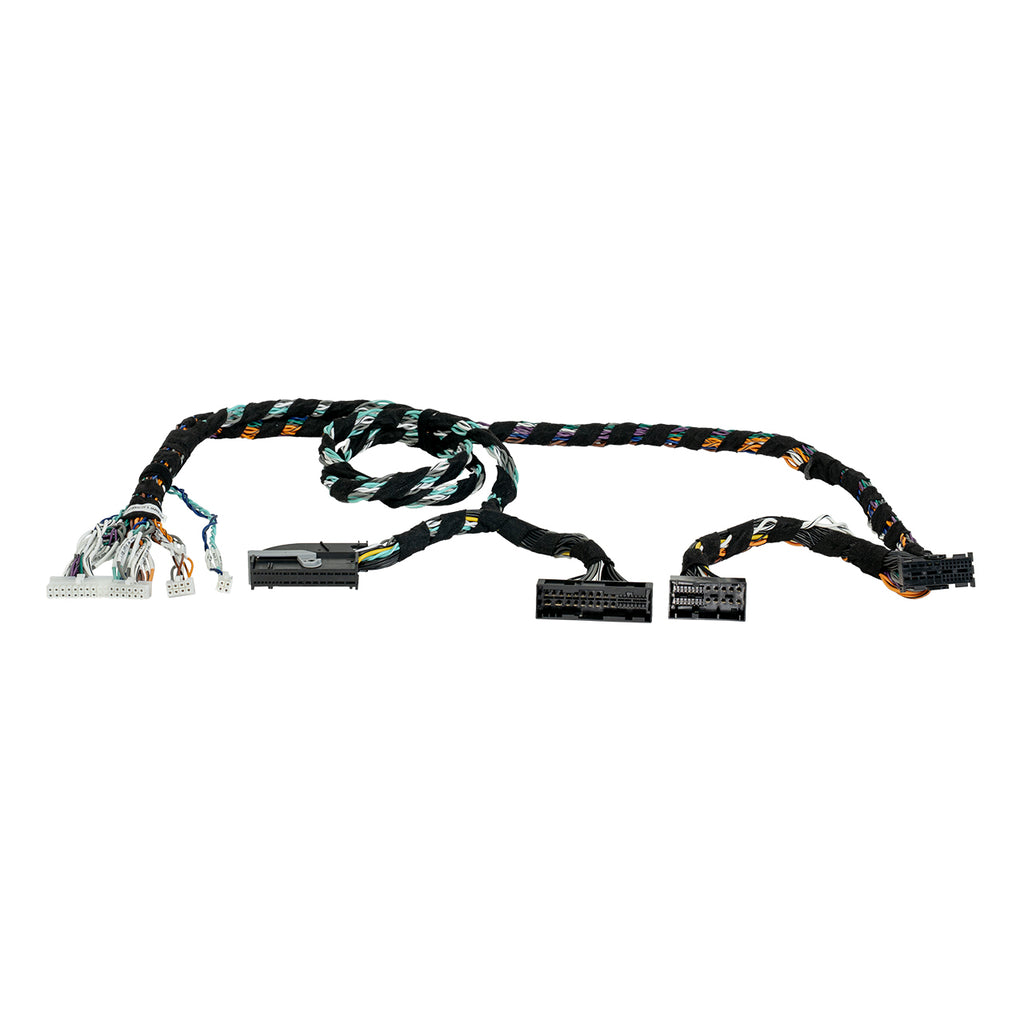

MATCH PP-BMW 1.10RAM-HK
The 10-channel UPGRADE cable harness PP-BMW 1.10RAM-HK enables an easy connection of a MATCH UP 10DSP amplifier with integrated Extension Card MEC ANALOG IN to selected BMW i-models with Harman Kardon sound system and RAM receiver.
Important note: Before the first start-up the Highlevel input inside the UP 10DSP amplifier has to be set to the High Voltage Range (jumper position: Input G - H 32V). For more information about setting the input sensitivity please refer to page 35 of the UP 10DSP manual.
Features
- Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
- BMW system plugs for connecting the vehicle cable harness
- RAM-connection for connecting the vehicle cable harness with RAM receiver
- Cable length 1.00 meter
Technical data
|
Cable length |
1.00 meter |
|
Connections |
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP 1 x 8-pole MOLEX plug for the connection of the highlevel inputs E - H of the UP 10DSP 1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP 1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module 1 x 42-pole BMW RAM system jack 1 x 42-pole BMW RAM system plug 1 x 35-pole BMW system jack 1 x 35-pole BMW system plug |
Compatibility
- For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
- Suitable for BMW i-series vehicles with RAM (Receiver Audio Module)
- Compatible with factory installed Harman Kardon sound system
- Further information about the vehicle compatibility can be found in our Connection Finder.
Scope of delivery
1 x Plug & Play cable harness PP-BMW 1.10RAM-HK
