Description
Miniature amplifier for powerful sound upgrades

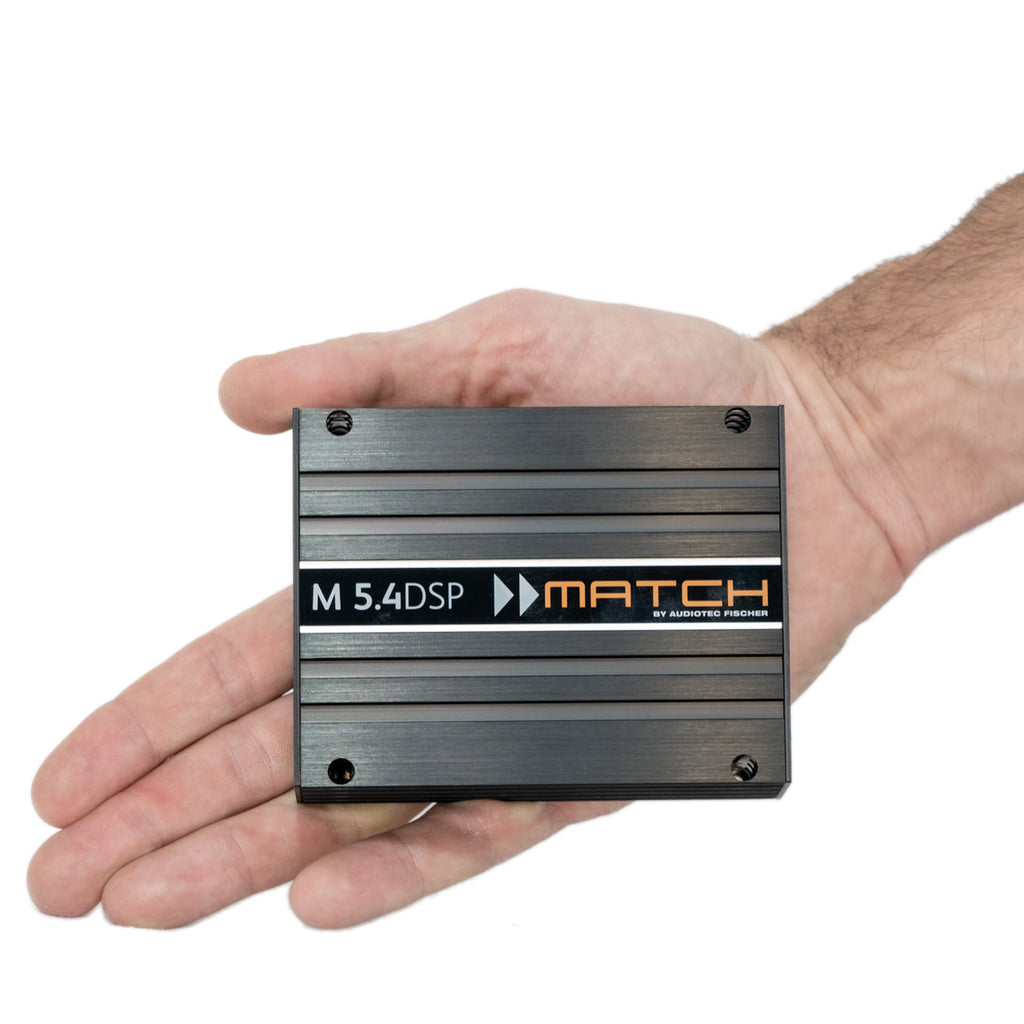

The new M 5.4DSP is a true giant in terms of power while being barely larger than a smartphone. With incredible 400/ 800 Watts RMS/ Max. output power and the latest DSP technology, it dramatically improves every standard sound system and brings real HiFi sound into your car.
Features
- Ultra-efficient 5-channel amplifier with 4 line outputs and 9-channel DSP

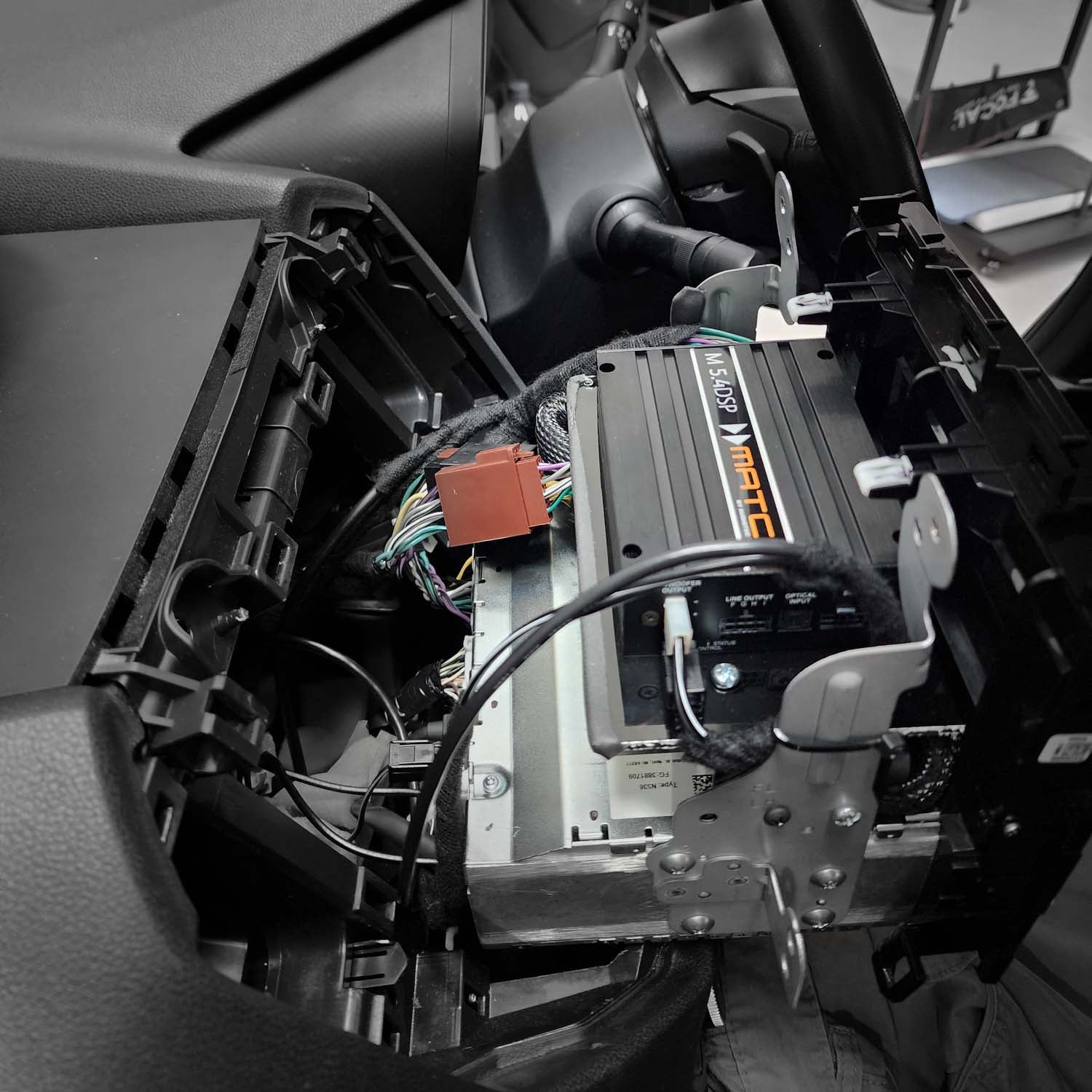

- Minimum dimensions for stealth installation concepts
- Two power options: “HighPower” mode for maximum performance and “MidPower” mode with reduced output power and lower power consumption for Plug & Play applications
- Plug & Play installations without separate power supply in “MidPower” mode
- Extremely powerful “fixed point” Audio DSP with 64 Bit resolution
- ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
- SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
- Optical input in SPDIF format with sampling rates between 12 and 96 kHz
- Smart highlevel input with ADEP.3 circuit and Auto Turn-On function
- VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems

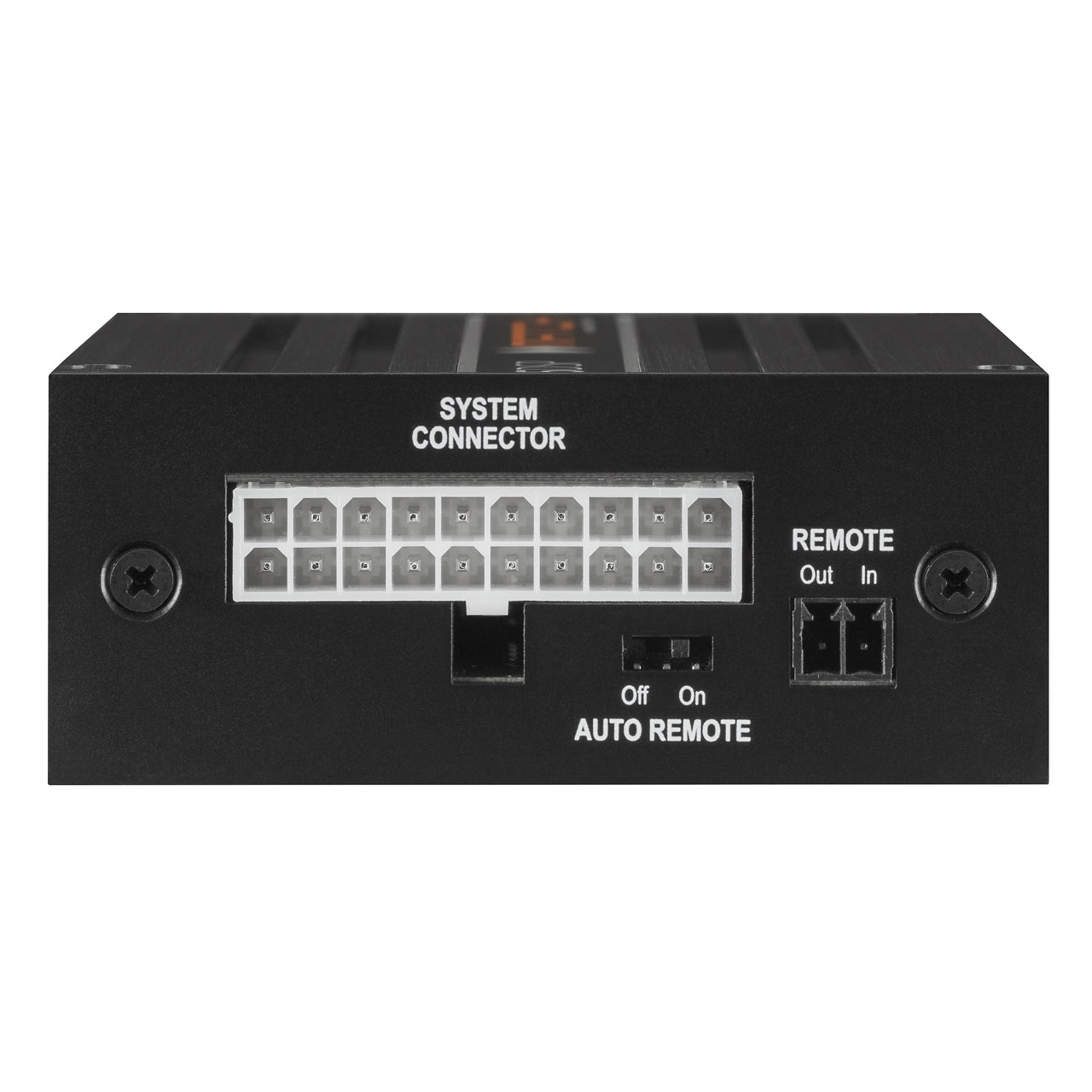

- Auto Remote switch
- Start-Stop capability down to 6 Volts supply voltage

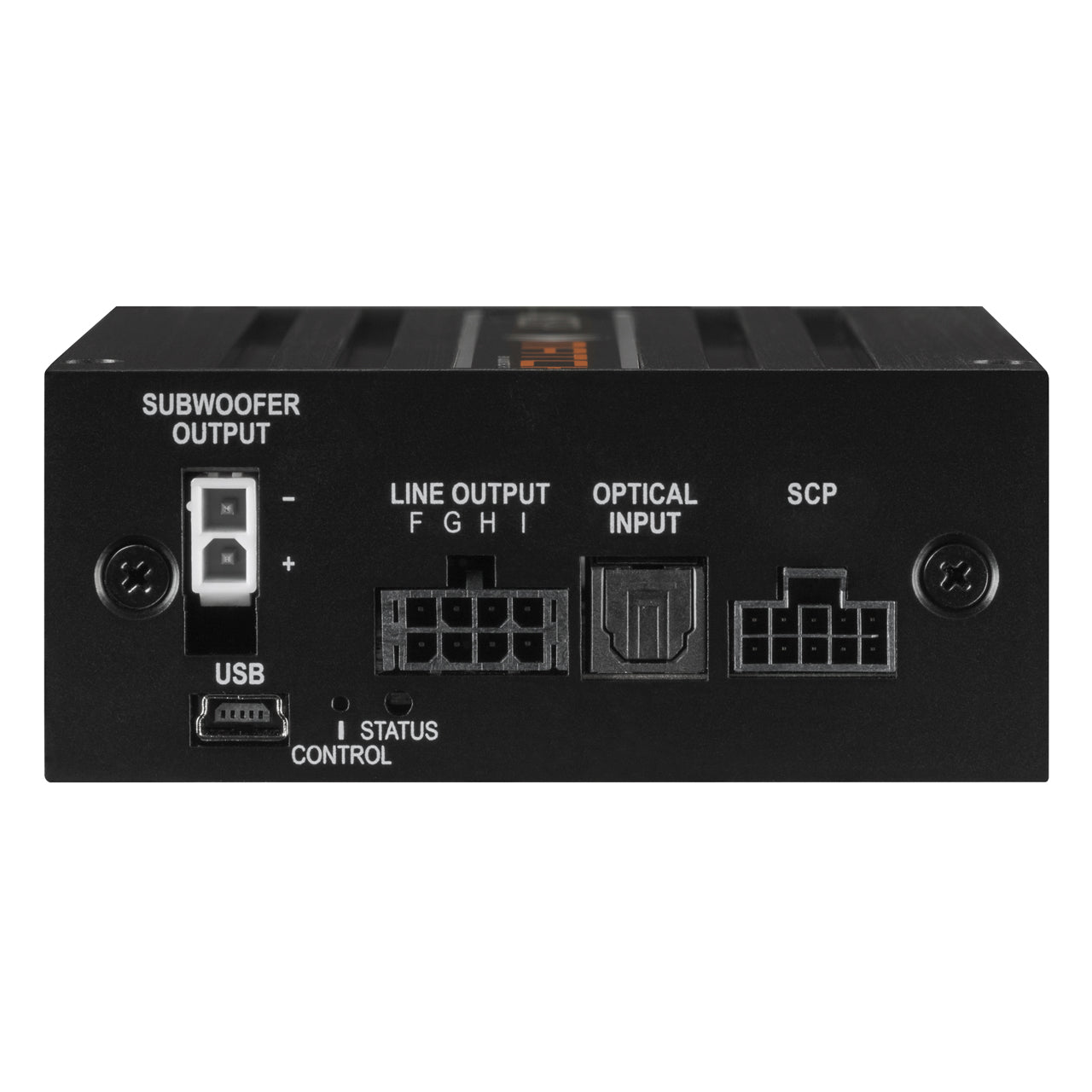

- Freely configurable 4-channel line output for the connection of additional amplifiers
- Subwoofer connection cable for MATCH Plug & Play and conventional subwoofers included in delivery
- SCP (Smart Control Port) for optional accessories like WIFI CONTROL, DIRECTOR, CONDUCTOR & Co.
Technical data
| Output power RMS | |
| - @ 4 Ohms | HighPower mode: 4 x 60 Watts MidPower mode: 4 x 35 Watts |
| - @ 2 Ohms | - |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| - Subwoofer output @ 4 Ohms | High- and MidPower mode: 1 x 90 Watts |
| - Subwoofer output @ 2 Ohms | High- and MidPower mode: 1 x 160 Watts |
| Amplifier technology | Class GD |
| Inputs | 4 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote in |
| Input sensitivity | 5 - 11 Volts |
| Input impedance RCA / Cinch | - |
| Input impedance high level | 9 - 33 Ohms with ADEP.3 |
| Outputs |
5 x Speaker output |
| Output voltage RCA / Cinch | 3 Volts |
| Frequency response | 20 Hz - 20,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 48 kHz |
| DSP type | Audio signal processor |
| Signal converters |
A/D: BurrBrown |
| Signal-to-noise ratio digital input | > 105 dB (A-weighted) |
| Signal-to-noise ratio analog input | > 99 dB (A-weighted) |
| Distortion (THD) | < 0.03 % |
| Damping factor | > 50 |
| Operating voltage | 10.5 - 17 Volts (max. 5 sec. down to 6 Volts) |
| Power rating | DC 12 V ⎓ 40 A max. |
| Idle current | 280 mA |
| Max. remote output current | 500 mA |
| Fuse | 1 x 30 A Maxi-fuse (APX) |
| Additional features | 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch, Smart Control Port, Start-Stop capability, USB |
| Dimensions (H x W x D) | 35 x 85 x 110 mm / 1.34 x 3.35 x 4.33" |
Scope of delivery
1 x MATCH micro amplifier M 5.4DSP
1 x Control Input-to-SCP adaptor
1 x USB cable
1 x Connection cable PP-IOC (0.50 meter)
1 x Subwoofer connection cable PP-SOC (0.45 meter)
1 x Line Output-to-RCA cable
1 x Mounting material
1 x Instruction manual
