Description
The new multi-tool for professionals

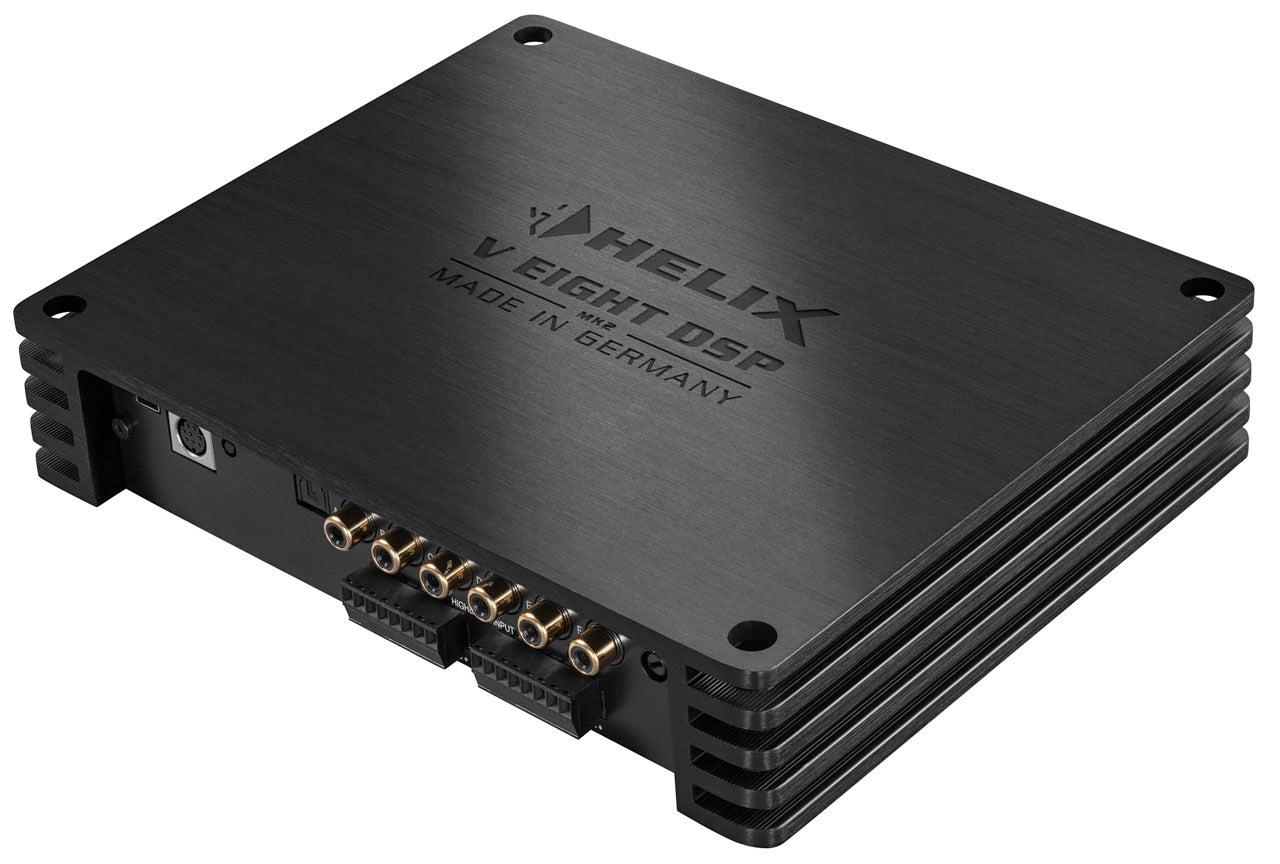

The small addition in the product name makes the big difference – the V EIGHT DSP MK2 is the logical evolution of its already more than impressive predecessor. Same look as before but in the inside Audiotec Fischer brought in all of his expertise and substantially optimized the hardware. The result is an 8-channel amplifier with ten processed DSP channels that is unrivalled in many ways.
Features
- Up to 160 W RMS output power per channel into 2 Ω
- “Pure Class GD” concept for outstanding sound quality combined with best possible efficiency
- Extremely powerful 64 Bit “fixed point” Audio DSP
- ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
- SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
- High power 8-channel highlevel input with up to 32 V RMS input sensitivity and ADEP.3 circuit
- Two processed RCA / Cinch outputs
- 1 to 1 Input / Output Routing (IOR) – same number of highlevel inputs and amplifier outputs
- Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems
- HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
- Compact design with low heat dissipation thanks to extraordinary efficiency
Technical data
| Power RMS ≤ 1% THD+N | |
| - @ 4 Ohms | 75 Watts per channel |
| - @ 2 Ohms | 120 Watts per channel |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Max. output power per channel* | Up to 160 Watts RMS @ 2 Ohms |
| Amplifier technology | Pure Class GD |

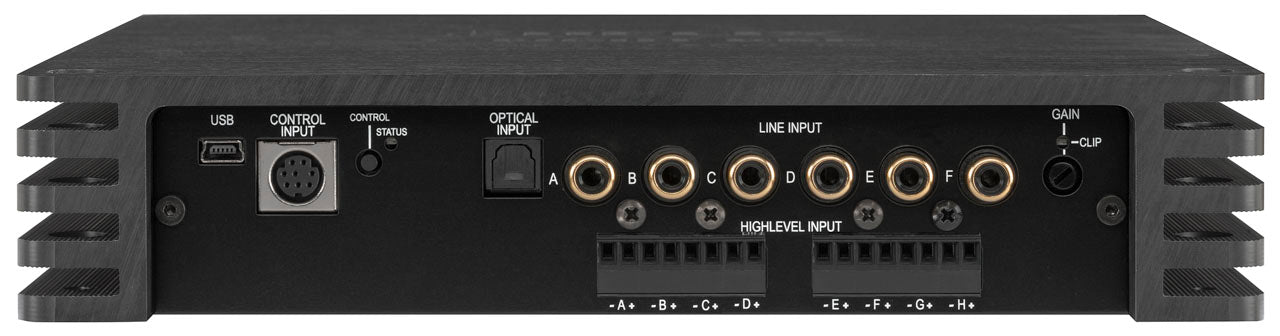

| Inputs | 6 x RCA / Cinch 8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In |
| Input sensitivity | RCA / Cinch max. 4 V or max. 8 V Highlevel max. 16 V or max. 32 V |
| Input impedance RCA / Cinch | 12 kOhms |
| Input impedance highlevel | 9 - 33 Ohms or 20 kOhms |
| Outputs | 8 x Speaker output 2 x RCA / Cinch 2 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 20 Hz - 22,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 48 kHz |
| DSP type | Audio signal processor |
| Signal converters | A/D: AKM 32 Bit D/A: AKM 32 Bit |
| Signal-to-noise ratio digital input | 107 dB (A-weighted) |
| Signal-to-noise ration analog input | 102 dB (A-weighted) |
| Distortion (THD) | < 0.015 % |
| Damping factor | > 70 |
| Operating voltage | 10.5 - 16 Volts (max. 5 sec.down to 6 Volts) |
| Idle current | 540 mA |
| Max. remote output current | 500 mA |
| Fuse | 2 x 30 A LP-Mini-fuse (APS) |
| Additional features | HEC slot, ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input |
| Dimensions (H x W x D) | 44 x 220 x 180 mm / 1.73 x 8.66 x 7.09“ |
* In typical multi-channel applications (2- / 3-way system + rear + subwoofer)
Scope of delivery
1 x Amplifier HELIX V EIGHT DSP MK2
1 x USB cable
1 x Jumper
2 x Allen key
1 x Mounting material
1 x Instruction manual
