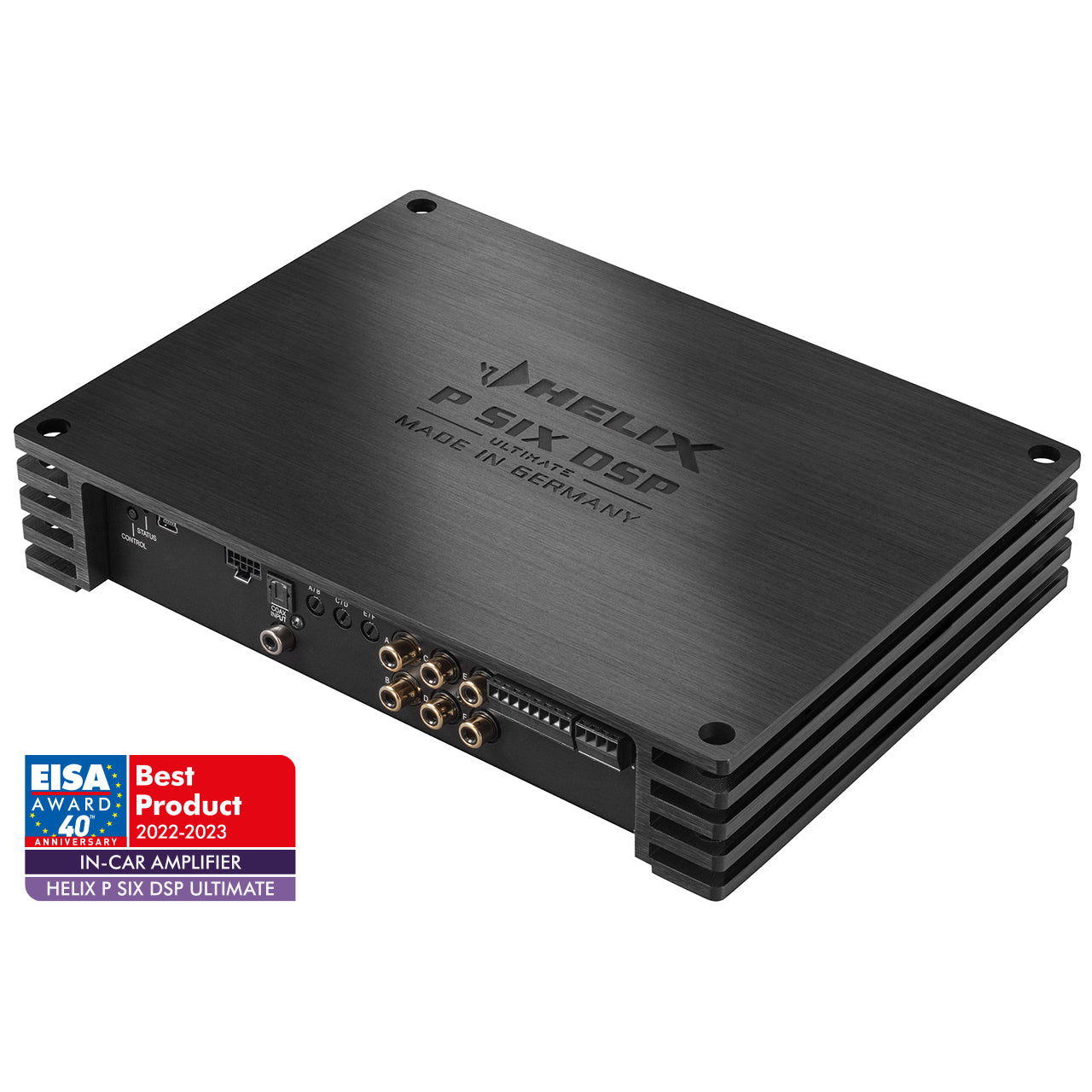

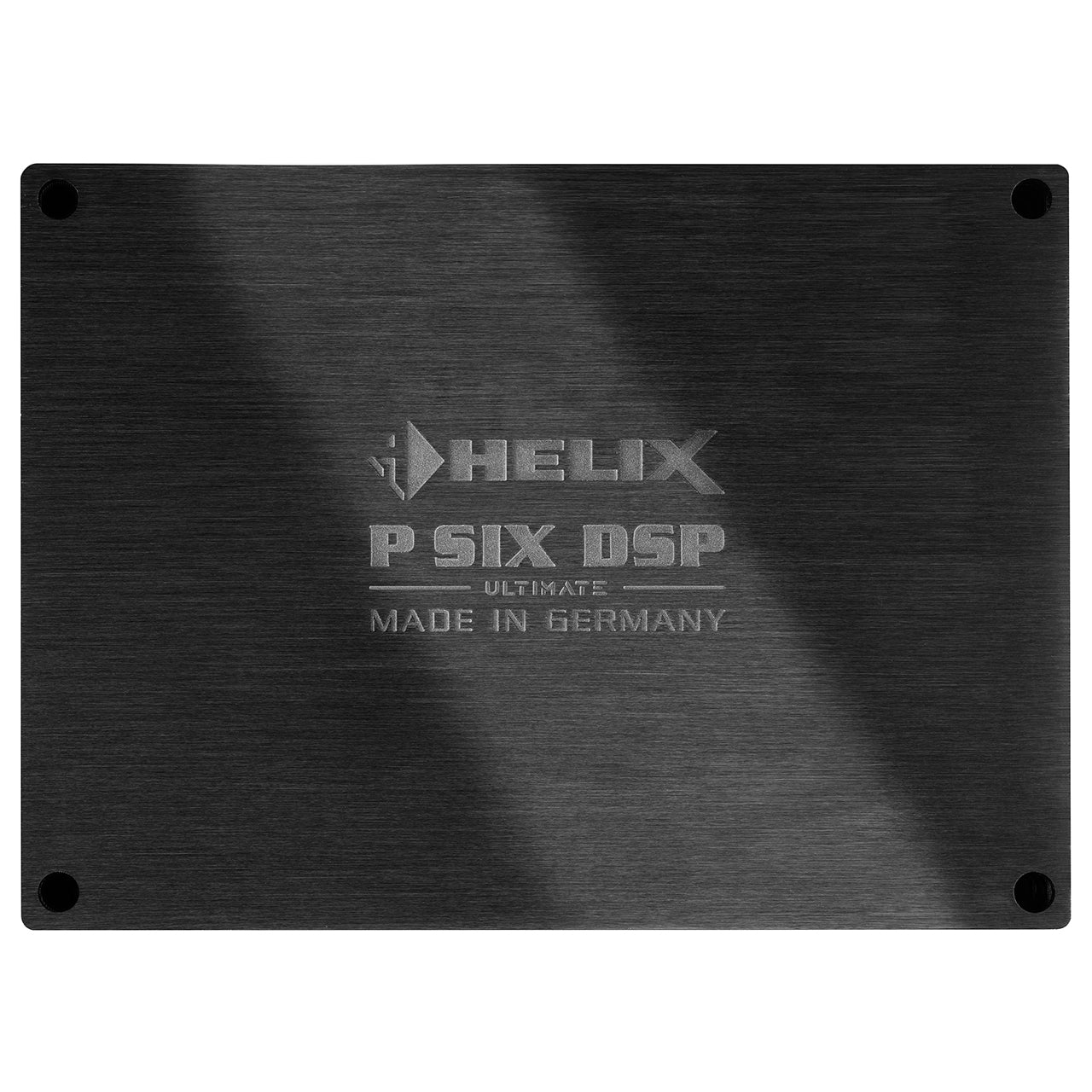

HELIX P SIX DSP Ultimate - 6 Channel Premium Amplifier | 10ch DSP

HELIXSKU: P SIX DSP Ultimate
No reviews

Price:
Sale price$2,850.00

incl. GST

Inventory:
Re-stocking on November 12, 2024
Improved shipping rates on orders over $1000

Pickup available at Rockdale NSW, Australia

Usually ready in 24 hours

Description

The P SIX DSP ULTIMATE 6-channel amplifier delivers enormous power and sophisticated DSP technology in perfect harmony.

This unit comes brand new in a sealed box (unopened) with all the accessories.

Overview

Up to 285 Watts RMS per channel into 2 Ohms and the integrated 12-channel signal processor with doubled processing power guarantee an incomparable sound experience in high-res quality. Our „ULTRA HD Class D“ philosophy focuses on combining the excellent sound characteristics of Class AB technology with the efficiency of a digital amplifier. In addition, the integration of numerous new functions and features, such as the ACO platform, the optical digital output and much more, make one thing clear: The P SIX DSP ULTIMATE is in a league of its own.

Features

  • Up to 285 W RMS output power per channel into 2 Ω
  • Ultra HD Class D concept – combines the high-end sound quality of Class AB technology with the benefits of Class D amplifiers
  • TwinDSP Power – two extremely powerful “fixed point” Audio DSPs with 64 Bit resolution and 2.4 billion MAC operations per second
  • A/D and D/A signal converters from BurrBrown
  • VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
  • ACO – Advanced CoProcessor for extended feature set
    • ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
    • Proprietary TuneEQ function for automated adjustment of the output equalizers
    • SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.
  • High power 6-channel highlevel input with up to 32 V RMS input sensitivity and ADEP.3 circuit
  • Optical (max. 96 kHz) and coaxial (max. 192 kHz) digital input in SPDIF format
  • Four RCA / Cinch outputs with max. 3 Volts output voltage
  • Optical digital output in SPDIF format (96 kHz)
  • Compact, future-proof Smart Control Port (SCP) for connecting remote controls and accessories
  • HEC slot for system expansions like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc.
  • Automatic Remote switch
  • Start-Stop capability down to 6V supply voltage
  • Very compact design with low heat dissipation thanks to extraordinary efficiency

More details

Read more details about this product here.

Technical data

Power RMS ≤ 1% THD+N
- @ 4 Ohms Channel A - F: 6 x 120 Watts
- @ 2 Ohms Channel C - F: 4 x 230 Watts
- @ 1 Ohm
- bridged @ 4 Ohms
- bridged @ 2 Ohms
Max. output power per channel* Channel A - F: up to 145 Watts RMS @ 4 Ohms
Channel C - F: up to 285 Watts RMS @ 2 Ohms
Amplifier technology Ultra HD Class D

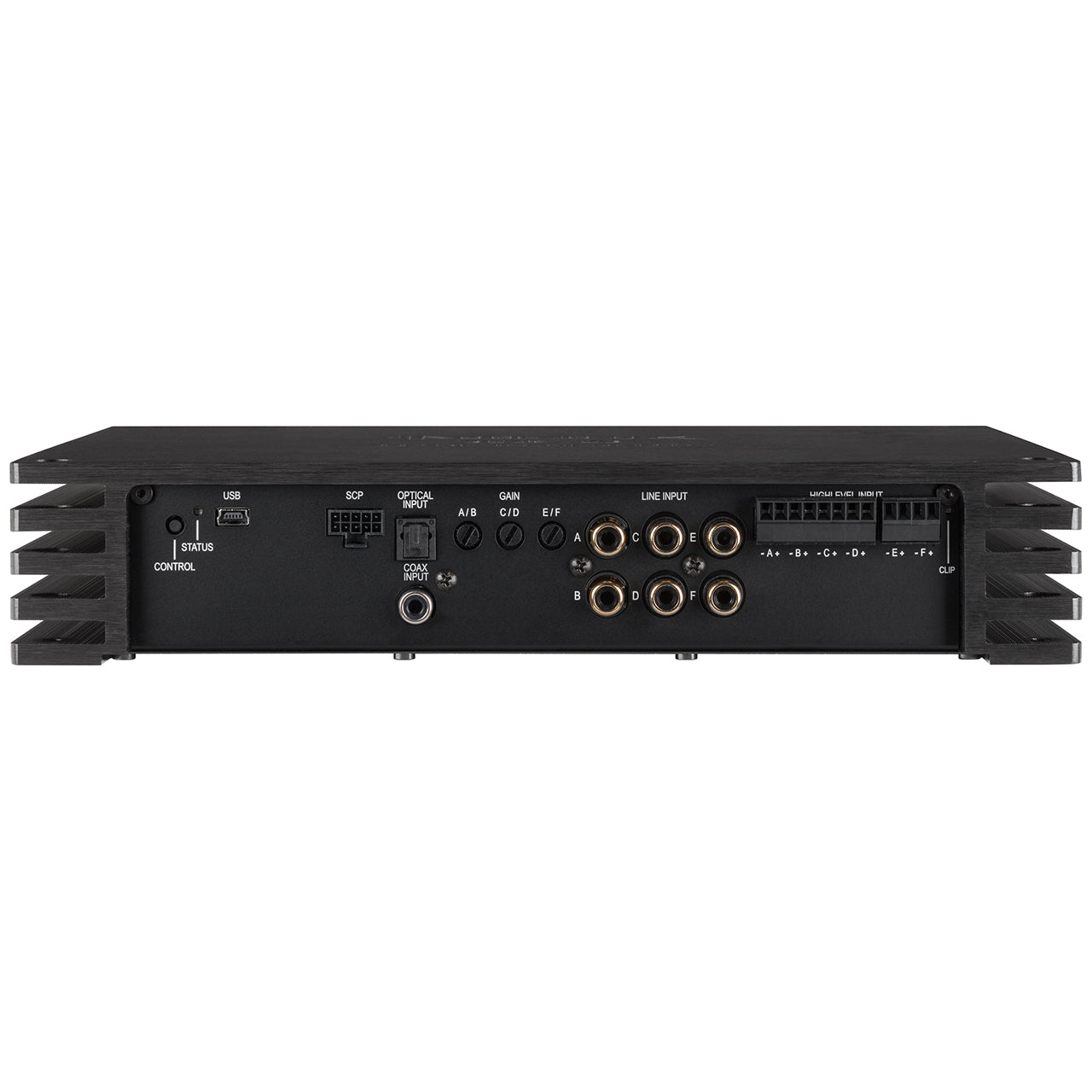

Inputs 6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivity RCA / Cinch 1 - 4 Volts or 4 - 8 Volts
Highlevel 4 - 16 Volts or 8 - 32 Volts
Input impedance RCA / Cinch 13 kOhms
Input impedance highlevel 9 - 33 Ohms with ADEP.3

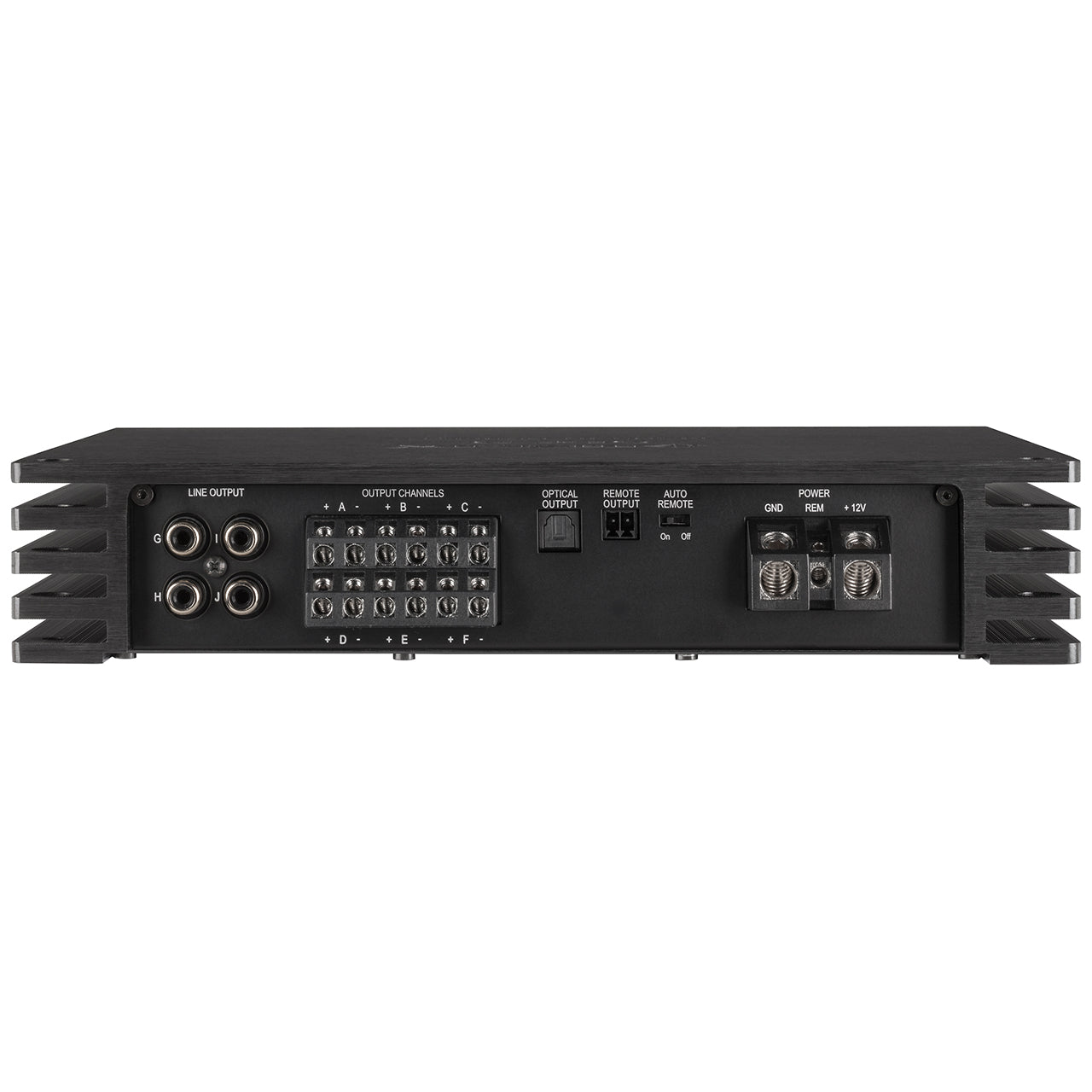

Outputs 6 x Speaker output
4 x RCA / Cinch
1 x Optical SPDIF (96 kHz)
2 x Remote Out
Output voltage RCA / Cinch 3 Volts
Frequency response 10 Hz - 44,000 Hz
DSP resolution 64 Bit
DSP power 2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate 96 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 108 dB (A-weighted)
Signal-to-noise ration analog input 102 dB (A-weighted)
Distortion (THD) < 0,004 %
Damping factor > 100
Operating voltage 10.5 - 32 Volts (max. 5 sec.down to 6 Volts)
Power rating DC 12 / 24 V ⎓ 65 A max.
Idle current 1350 mA
Max. remote output current 500 mA
Fuse 3 x 20 A LP-Mini-fuse (APS)
Additional features 32 Bit CoProcessor, HEC slot, ADEP circuit, Auto Remote switch, Smart Control Port
Dimensions (H x W x D) 50 x 260 x 190 mm /
1.97 x 10.24 x 7.48“
* In typical multi-channel applications (2- / 3-way system + rear + subwoofer)


Scope of delivery

1 x Amplifier HELIX P SIX DSP ULTIMATE
1 x Control Input-to-SCP adaptor
1 x USB cable
2 x Allen key
1 x Mounting material
1 x Instruction manual

Product parameters

  • Size: 12
  • Channels: 6 Channel
  • Built-in DSP: Yes
  • RCA Input: 6x RCA
  • High-Level Input: 6x High level
  • Power W RMS/ch | 4Ω: 120
  • Power W RMS/ch | 2Ω: 285
  • Other Input: Optical , Coax
  • Class: HD
  • Max Input Sensitivity (V): 32
  • Operational Voltage:
  • AMP - RCA Out: 4x RCA
  • Product Depth | mm: 190
  • Product Width | mm: 260
  • Product Height | mm: 50
