Description
HELIX IK EC10.1-DVC2 – VW MULTI-TRANS
Specially designed for seamless integration into the passenger-side seat console of Volkswagen T6.1, T6, and T5, the HELIX IK EC10.1-DVC2 – VW MULTI-TRANS combines integration-intelligence with powerful low-frequency output. Its optimized enclosure design ensures excellent bass dispersion throughout the vehicle, making it a perfect fit for those seeking deep, immersive bass while using the available space efficiently.
About
Superior bass performance
The IK EC10.1-DVC2 – VW MULTI-TRANS features a high-performance 10" (250 mm) woofer with a sandwich paper cone, delivering rich and powerful bass that fills the vehicle. The larger chassis provides a noticeable increase in sound pressure and deep bass compared to conventional 200mm woofers in the same application Thanks to its up-firing design, the subwoofer directs sound upwards, resulting in an even and immersive bass experience.
Space-saving and durable design

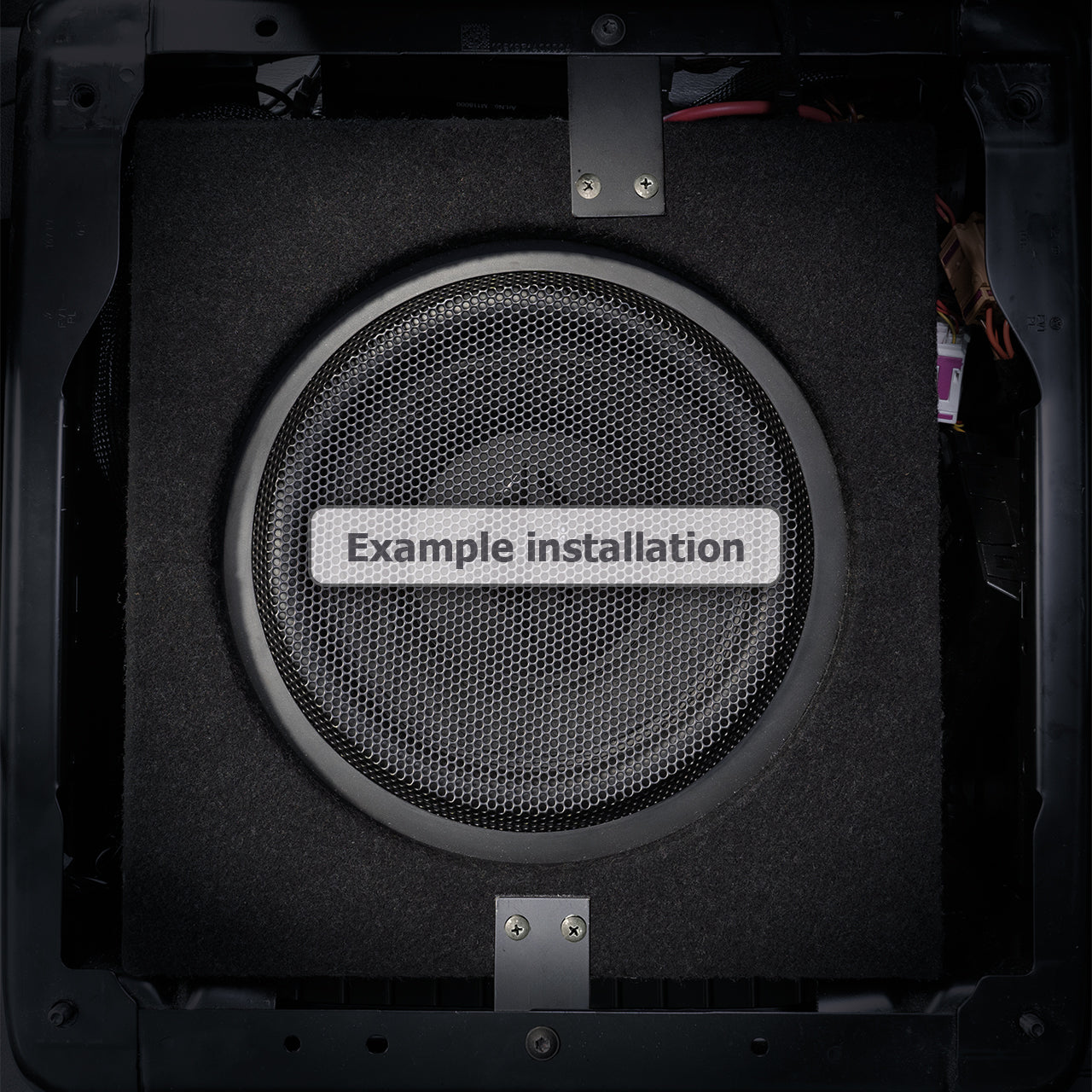

The woofer is optimized for installation in the passenger seat console of VW T6.1, T6, and T5 models, saving valuable space in the vehicle. Additionally, the flush-mounted chassis provides optimal protection for the speaker. The enclosure features a durable carpet surface with an embroidered HELIX logo, adding both style and resilience.

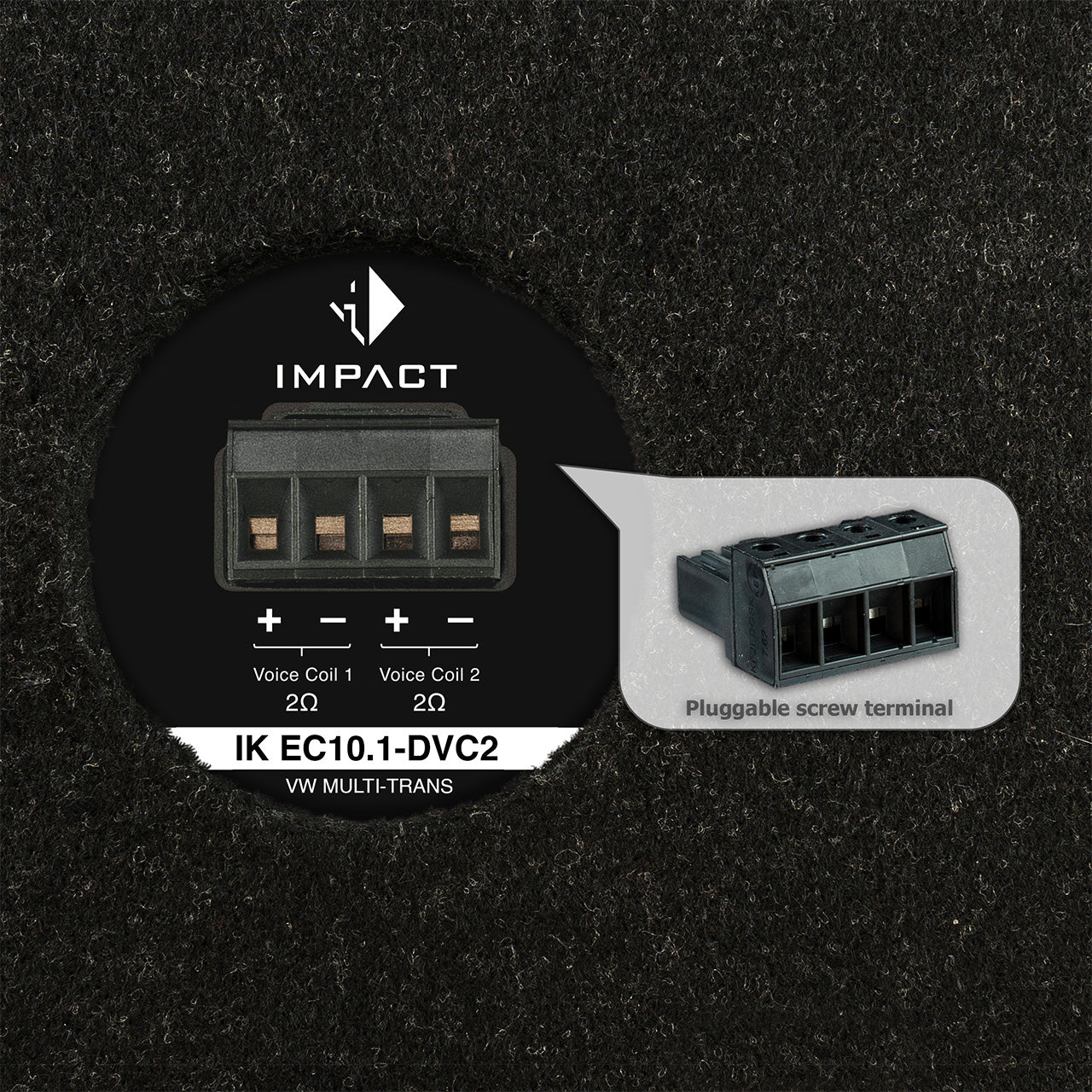

Easy installation and flexible configuration
With a pluggable screw terminal, installation and removal of the subwoofer are quick and hassle-free. The configurable voice coil impedance (2 x 2 Ohms, 1 x 4 Ohms, or 1 x 1 Ohm) allows for flexible system integration with a variety of amplifiers, catering to different configurations effortlessly.
Features
- Powerful enclosure subwoofer especially designed for installation in the seat console of Volkswagen T6.1, T6 and T5
- Optimized construction design delivers outstanding sound quality and ideal bass dispersion in the vehicle
- Equipped with one powerful 250 mm / 10“ woofer with sandwich paper cone for rich, deep bass
- Pluggable screw terminal for quick and safe installation and removal
- Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
- Flush-mounted subwoofer chassis for space-saving design and enhanced protection
- Sturdy carpet surface with embroidered HELIX logo
- Including mounting kit for secure fixation in the seat console
Technical data
| Power handling RMS | P | 300 Watts |
| Recommended amplifier power | RMS | 150 - 300 Watts |
| Impedance | z | 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω |
| Max. linear excursion | Xmax | +/- 6.0 mm |
| Port tuning frequency | Fb | - |
| Sensitivity |
SPL |
90 dB @ 2.83V / 1m |
| Dimensions (H x W x D) |
193 x 350 x 330 mm |
|
| Integrated subwoofer chassis | HELIX IK S10-DVC2 | |
| Recommended DSP settings | "Self-define" highpass 46 Hz / Q = 1.4; EQ filter: 100 Hz / Q = 1.5 / -3 dB |
Compatibility
- Suitable for various Volkswagen T6.1, T6 and T5
Scope of delivery
1 x Enclosure subwoofer IK EC10.1-DVC2 – VW MULTI TRANS
1 x Mounting kit
1 x Data sheet
