Description

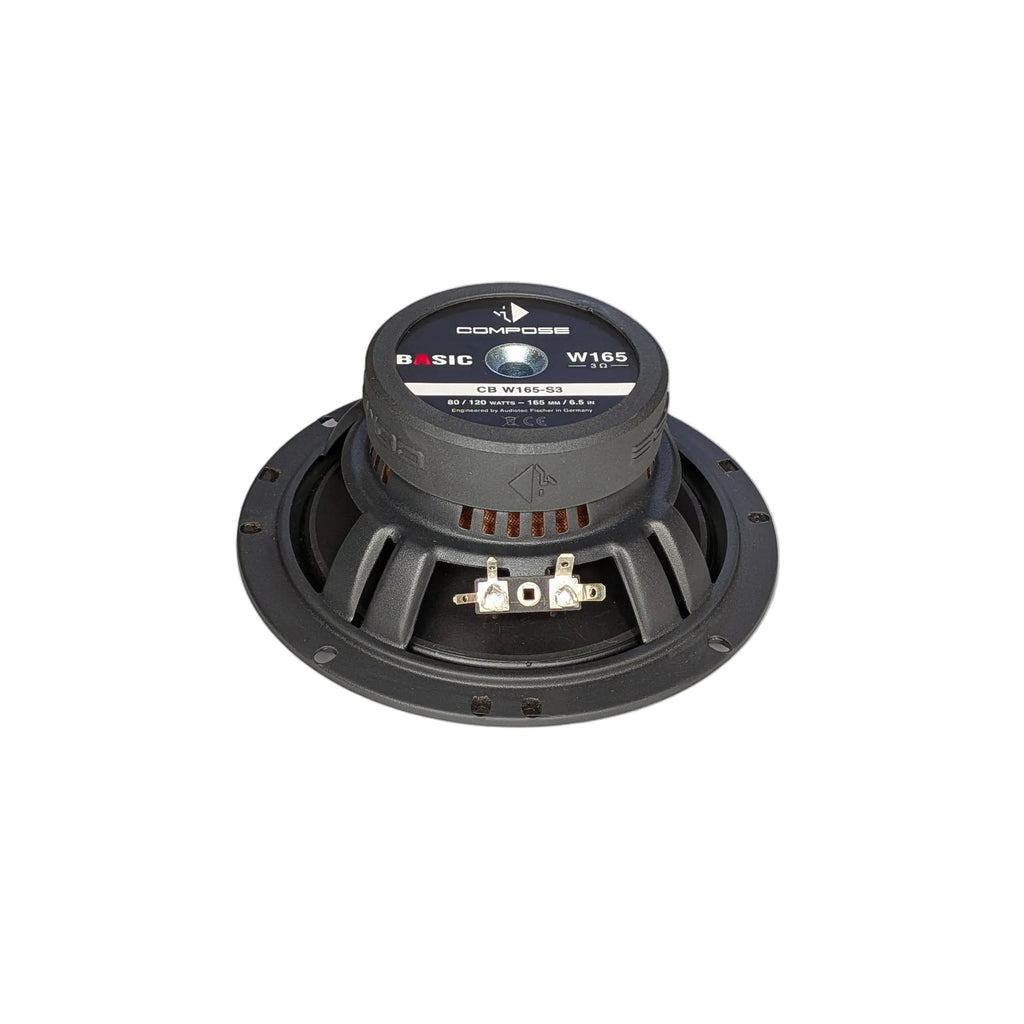

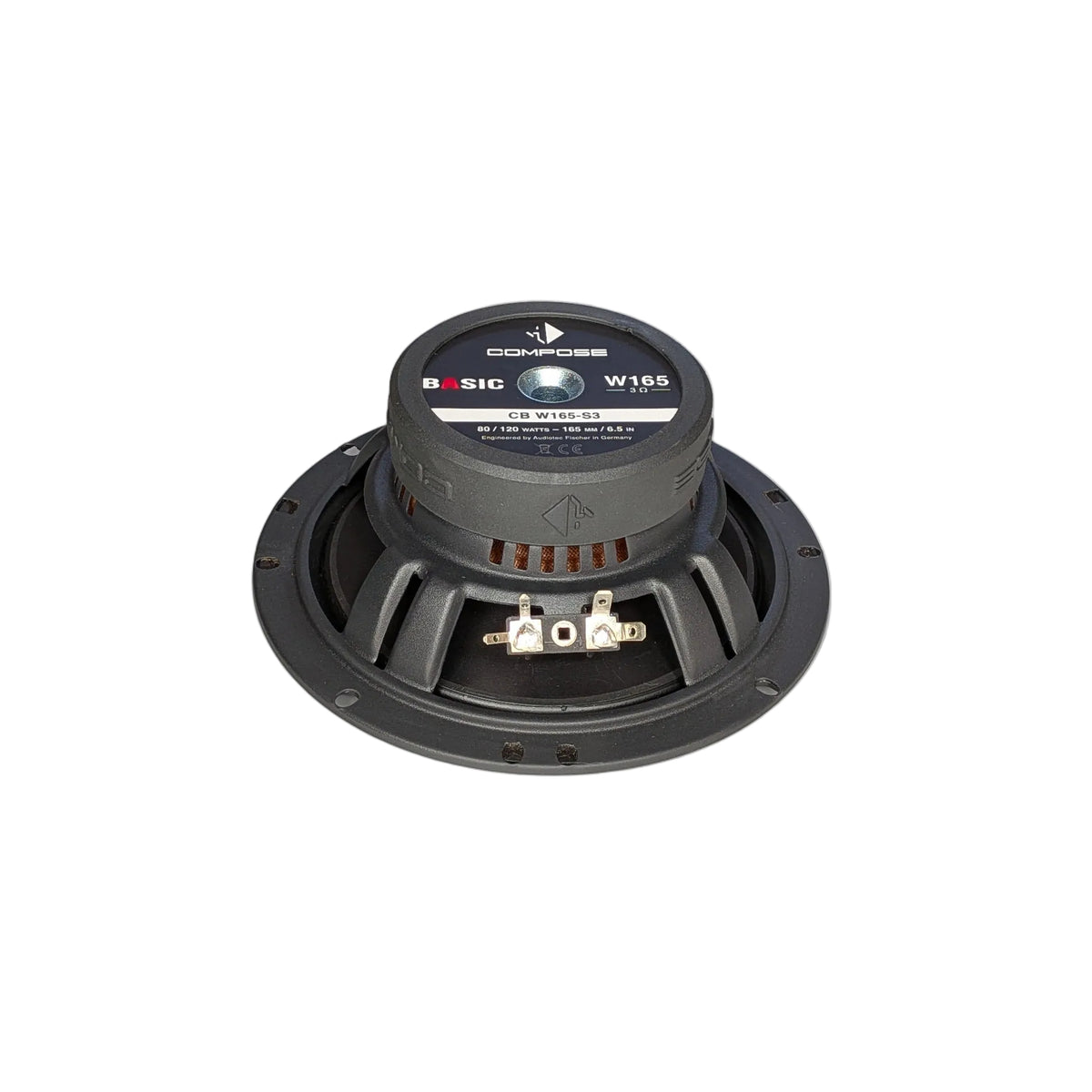

HELIX CB W165-S3
HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.
The essentials for an exceptional sound experience
You might have already guessed from the name: our BASIC speakers are the perfect introduction to the world of HELIX COMPOSE, providing all the essentials for an exceptional sound experience in your vehicle. In combination with our HELIX and MATCH amplifiers, they form an ideal team, guaranteeing maximum performance and power output at all times.
High efficiency
HELIX COMPOSE equals smart engineering and accordingly implements highly efficient 3 Ohm technology, that perfectly harmonizes with all HELIX and MATCH amplifiers and at the same time allows a clearly perceptible plus in efficiency and maximum sound pressure.
Powerful bass – always on point
In the BASIC series, our COMPOSE bass-midrange driver combines high efficiency with excellent sound quality. The lightweight but stable polypropylene cone provides exceptional sound performance while the sturdy basket is equipped with additional ventilation holes for optimized cooling. A powerful magnet system provides ideal impulse response and the soft polyurethane dustcap guarantees optimized frequency response in the upper midrange. Last but not least, the compact design is ideally suited for integrations in cramped spaces.
Features
- 6.5” / 165 mm midbass with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance
- 3 Ohm technology for maximized power output of the amplifier
- Specially shaped rubber surround for larger effective cone area and increased maximum excursion
- Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling
- Powerful magnet system for optimum impulse control
- Polyurethane dustcap for optimized frequency response in the upper midrange area
Technical data
| Power handling RMS / Max. | P |
80 / 120 Watts |
| Impedance | Z | 3 Ω |
| DC resistance | Re | 3.0 Ω |
| Frequency response | 60 Hz - 3,500 Hz | |
| Resonance frequency | Fs | 62 Hz |
| Mechanical Q factor | Qms | 4.50 |
| Electrical Q factor | Qes | 0.90 |
| Total Q factor | Qts | 0.75 |
| Compliance | Cms | 520 µm/N |
| Equivalent air volume | Vas | 14.5 L |
| Force factor | B*I | 4.1 Tm |
| Sensitivity | SPL | 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m |
| Cone area | Sd | 141 cm² |
| Moving mass | Mms | 13.2 g |
| Cone material | Injected polypropylene cone | |
| Mechanical resistance | Rms | 1.10 kg/s |
| Voice coil diameter | ø | 25 mm |
| Voice coil winding height | 8.9 mm | |
| Max. linear excursion | Xmax | +/- 2.5 mm |
| Outer diameter | ø | 166 mm / 6.54" |
| Installation diameter | ø | 143 mm / 5.63" |
| Installation depth | 61.4 mm / 2.42" |
Scope of delivery
2 x CB W165-S3
2 x Mounting material
