Description
Overview
HELIX HEC ANALOG IN
The HELIX Extension Card ANALOG IN extends HELIX products with two additional analog input channels. For example, the module allows to
- provide HELIX DSP devices with a lowlevel signal
- upgrade OEM premium sound systems which require additional highlevel inputs
- connect additional analog signal sources such as a TV or smartphone
Of course, the highlevel input provides our proprietary ADEP.3-circuit, the Auto Remote function as well as an adjustable input sensitivity from 1.5 to 30 Volts. Just as the highlevel input the 3.5 mm lowlevel stereo input offers an adjustable input sensitivity. The adjustment range is from 0.5 to 8 Volts. The module will be delivered with a device-specific side panel.
Features
- Extends the DSP device by two additional analog input channels
- Highlevel input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts
- Lowlevel stereo line input via 3.5 mm jack with an adjustable input voltage range from 0.5 to 8 Volts
- Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source
- Device-specific side panel included in delivery
Technical data
| Input voltage highlevel |
1.5 - 30 Volts (adjustable) |
| Input voltage lowlevel |
0.5 - 8 Volts (adjustable) |
| Lowlevel input |
3.5 mm jack |
| Additional features |
ADEP.3, Auto Remote function |
Compatibility
- HELIX DSP ULTRA S

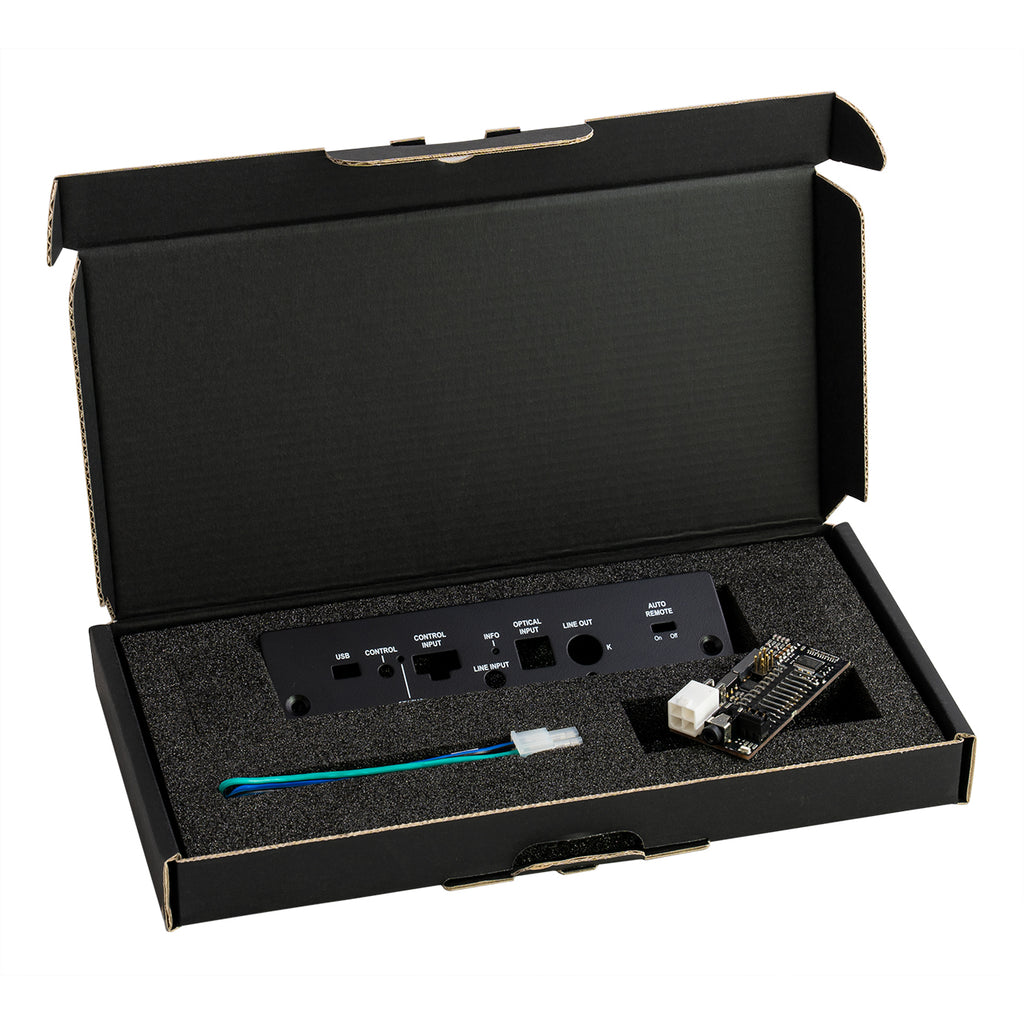

Scope of delivery
