Description

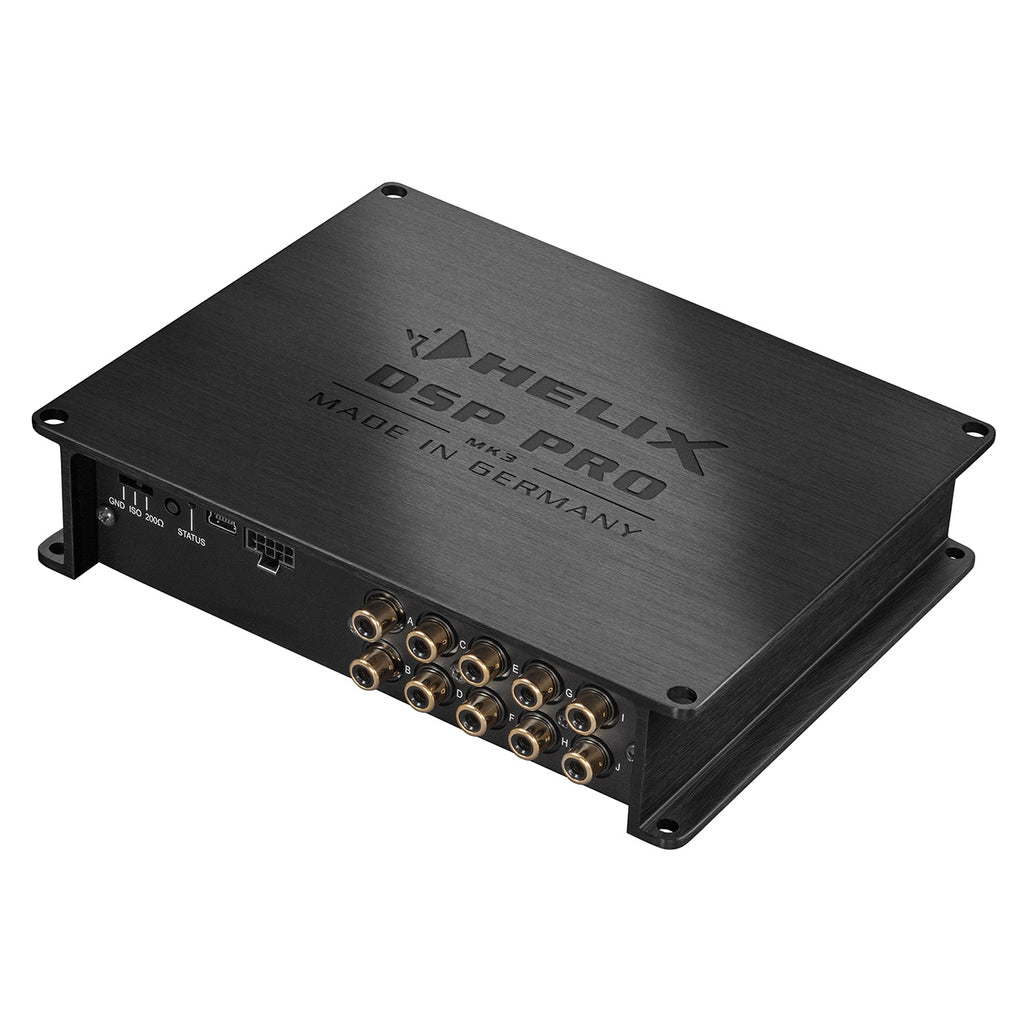

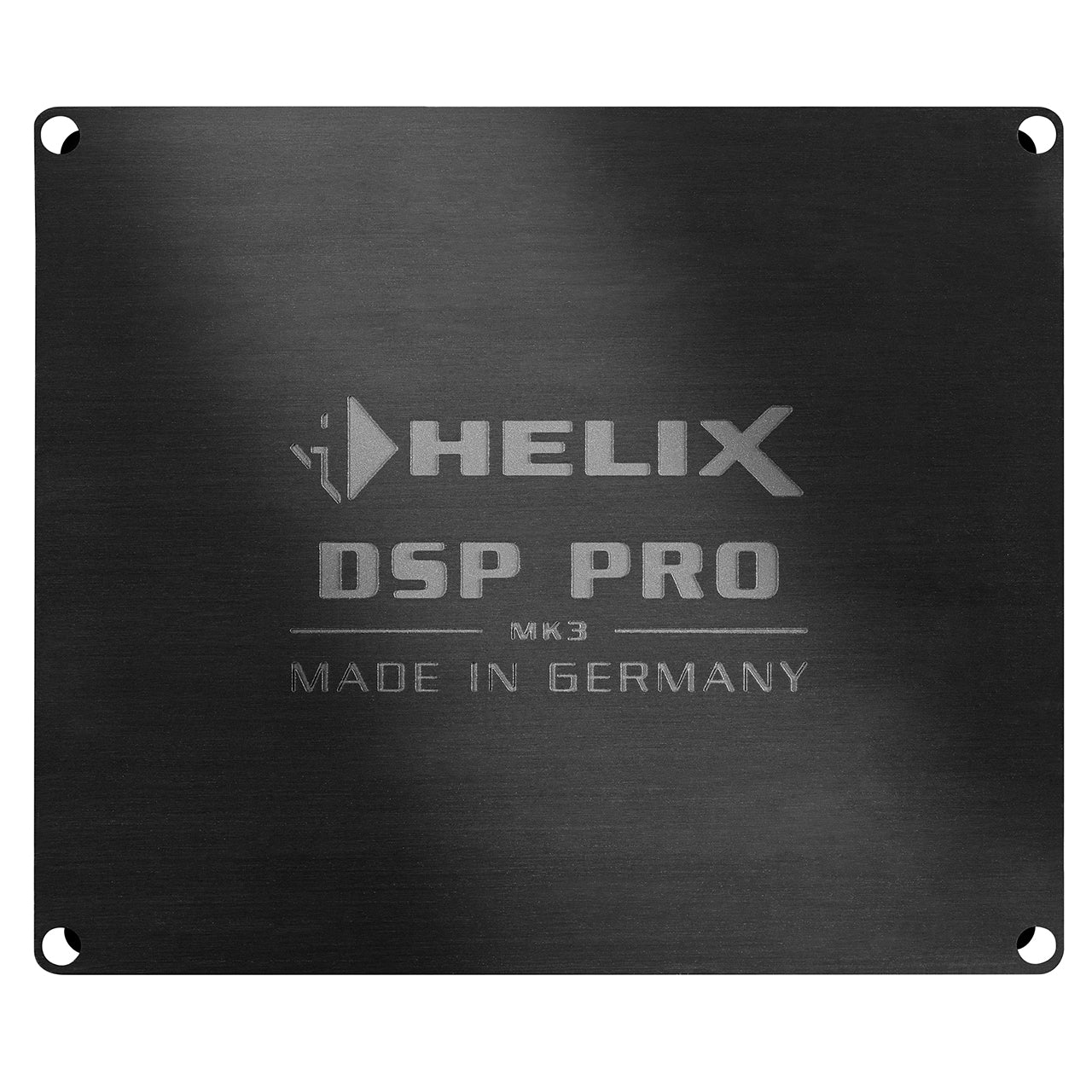

The next evolutionary stage of the DSP PRO
Familiar looks with the (r)evolution inside. The successor of the DSP PRO comes in the renowned, elegant HELIX design, but is equipped with the latest technology: Unrivalled High-Res sound quality thanks to twice as much processing power compared to its predecessor, ACO Platform for an extended feature set as well as VCP (Virtual Channel Processing) for easy configuration of highly complex sound systems. Additionally, there are the revised highlevel inputs with three-stage input sensitivity adjustment and extended voltage range up to max. 32 Volts as well as our extremely compact and solid Smart Control Port. One thing´s for sure: Due to featuring all these state-of-the-art technologies, the DSP PRO MK3 without a doubt belongs to the A-list of signal processors.
Features
- TwinDSP Power – two extremely powerful “fixed point” Audio DSPs with 64 Bit resolution and 2.4 billion MAC operations per second
- State-of-the-art 32 Bit AD and DA signal converters from AKM
- ACO – Advanced 32 Bit CoProcessor platform for extended feature set
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
- Proprietary TuneEQ function for automated adjustment of the output equalizers
- SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.
- VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
- HEC slot for system add-ons like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc.
- Smart 8-channel highlevel input with ADEP.3 circuit
- Start-Stop capability down to 6V supply voltage
- “Ground lift” switch to avoid ground loops
- Channel pair separated, three-stage input sensitivity adjustment (highlevel up to max. 32 Volts, RCA / Cinch up to max. 4 Volts)
- Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
- Time alignment with up to 20 ms delay time per channel, additionally reverse time alignment for in-phase summation of the inputs
- Freely definable signal routing with separate matrices for line, SPDIF and HEC/AUX
- Inputs: 8 x RCA/Cinch, 8 x Highlevel, 1 x optical SPDIF and 1 x coaxial SPDIF

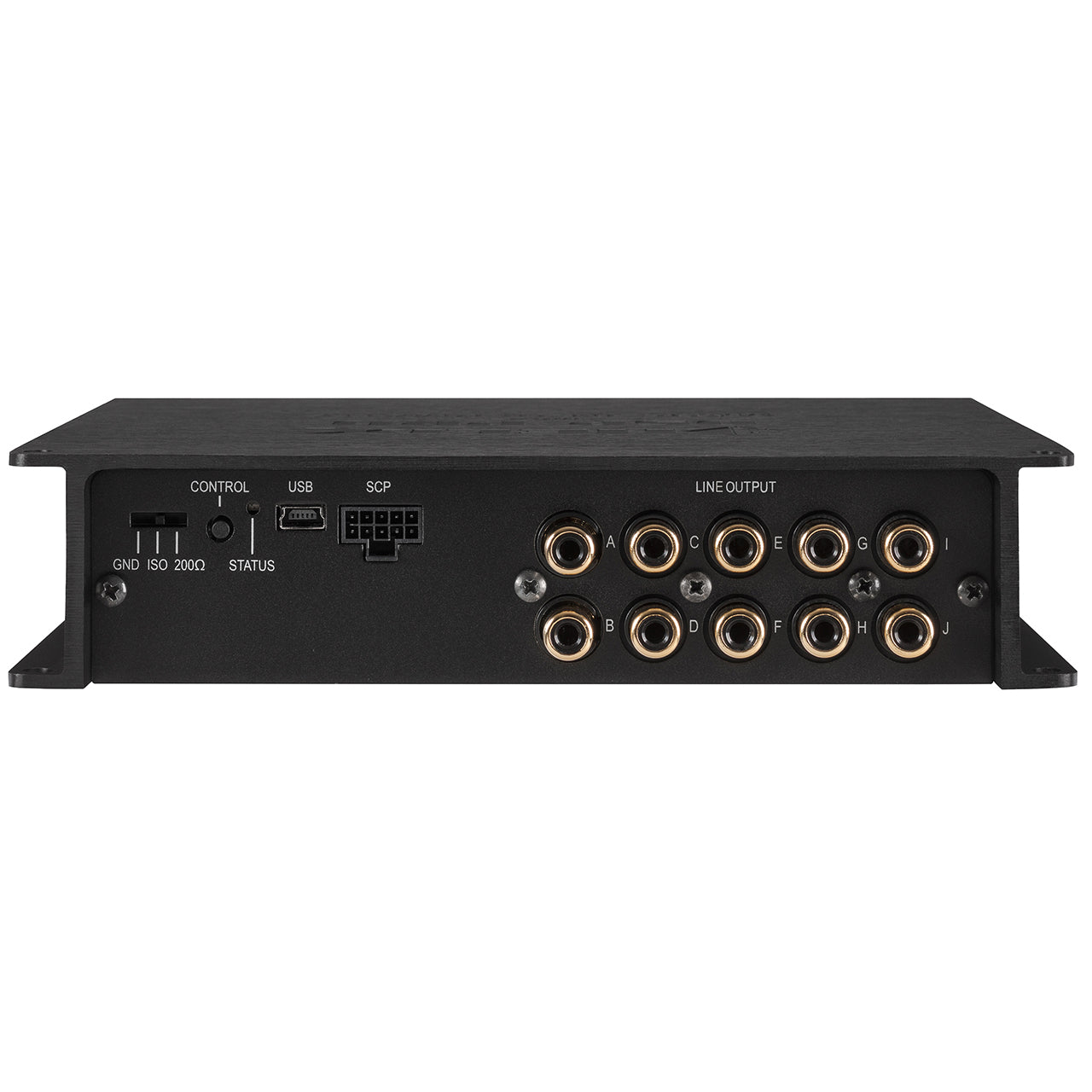

- Outputs: 10 x RCA/Cinch with max. 8 Volts output voltage
- Easiest configuration via the intuitive DSP PC-Tool 5 software
More Details
Read more details about this product here.
Technical data
| Inputs | 8 x RCA / Cinch |
| 8 x Highlevel speaker input | |
| 1 x Optical SPDIF (12 - 96 kHz) | |
| 1 x Coax SPDIF (12 - 192 kHz) | |
| 1 x Remote In | |
| Input sensitivity | RCA / Cinch 2 / 3 / 4 Volts |
| Highlevel 4 / 7 / 11 or 12 / 22 / 32 Volts | |
| Outputs | 10 x RCA / Cinch |
| 1 x Remote Out | |
| Output voltage | 8 Volts |
| Frequency response | 10 Hz - 44,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 2 x 295 MHz (2.4 billion MAC operations/second) |
| Sampling rate | 96 kHz |
| DSP type | 2 x Audio signal processor |
| Signal converters | A/D: AKM Velvet Sound 32 Bit |
| D/A: AKM Velvet Sound 32 Bit | |
| Signal-to-noise ratio digital input | 116 dB (A-weighted) |
| Signal-to-noise ratio analog input | 111 dB (A-weighted) |
| Total harmonic distortion (THD+N) digital input | < 0.0005 % |
| Total harmonic distortion (THD+N) analog input | < 0.001 % |
| IM distortion (IMD) digital input | < 0.002 % |
| IM distortion (IMD) analog input | < 0.004 % |
| Crosstalk | > 90 dB |
| Operating voltage | 9.6 - 18 Volts (max. 5 sec. down to 6 Volts) |
| Power rating | DC 12 V ⎓ 3 A max. |
| Current draw | 650 mA |
| Max. remote output current | 500 mA |
| Additional features | HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch |
| Dimensions (H x W x D) | 40 x 177 x 150 mm / |
| 1.58 x 6.97 x 5.91“ |
Scope of delivery
1 x Signal processor HELIX DSP PRO MK3
1 x Control Input-to-SCP adaptor
1 x USB cable
1 x Mounting material
1 x Instruction manual
