Description
Description
One-touch remote control
The CONDUCTOR combines design and functionality in perfection. With just one knob you have all important functions of your (DSPs) sound system fully under control – from volume adjustment, signal source selection and setup change up to the control of an optional Bluetooth module.
Seamless integration

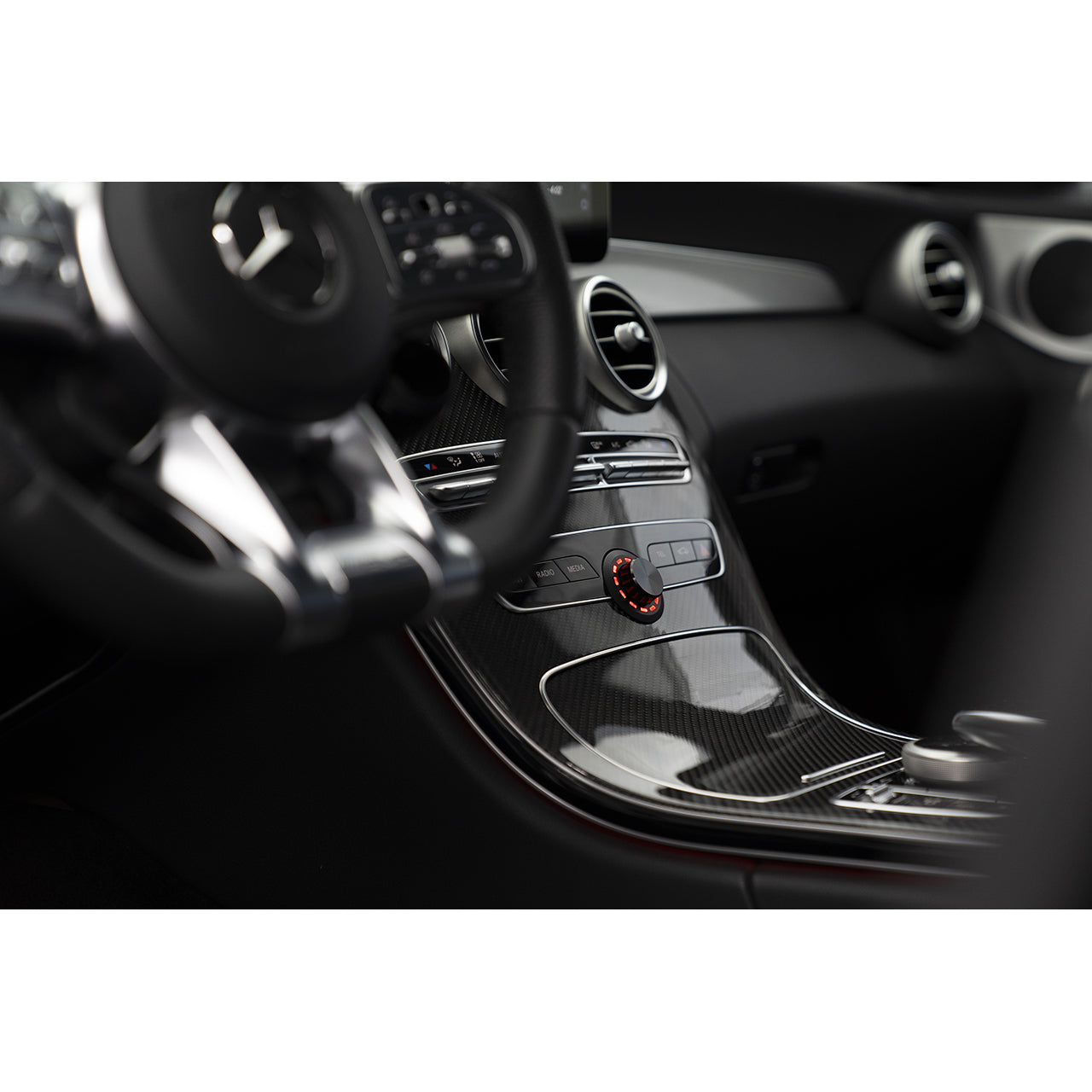

Thanks to its compact, fully symmetrical design and high-quality materials, the CONDUCTOR can be integrated almost seamlessly into the existing vehicle interior and blends in with its appearance as inconspicuously as an original part.
Tailor-made for your needs
The CONDUCTOR can always be optimally adapted to your needs – whether as a simple subwoofer remote or as a control unit for complex system configurations. For example, two playback zones with different volumes: music for the parents in the front and a radio play for the children in the back.All signal sources under control
With the CONDUCTOR you can manage all your connected signal sources in no time at all. For example, use your smartphone as a digital media source and intuitively control its playback (play / pause, track forward / back) and volume in combination with the optional Bluetooth Extension Card.Sound Setup switch according to your music taste
Manage different optimized sound setups of your DSP for rock, pop, classic or absolute pure sound and enjoy your music always with optimal sound quality.Seamless integration
Thanks to its compact, fully symmetrical design and high-quality materials, the CONDUCTOR can be integrated almost seamlessly into the existing vehicle interior and blends in with its appearance as inconspicuously as an original part.
Features
- Up to 4 individual volume menus configurable (Master, Digital, HEC/AUX, Subwoofer, Rear Attenuation)
- Volume range selectable (60 dB, 24 dB, 12 dB)
- Volume steps selectable (1 dB steps, 0.5 dB steps)
- Individual color for each volume menu configurable
- Sound Setup selection between all 10 memory slots
- Intuitive Bluetooth playback control and pairing activation (only in combination with an optional Bluetooth Extension Card)
- 12 x RGB-LEDs for visual feedback
- Wide color space with over 16 million colors
- Brightness and automatic dimming function configurable
- Easy installation
- Flush mount installation with Ø 40 mm hole cut-out
- 5 m cable harness with split connector and single connector supply
- Optional housing for on-dash installation available soon
- Full configuration and updatability through the DSP PC-Tool software
Technical data
| Housing | ABS housing with machined aluminum knob |
| Hardware | Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processorr |
| Connection | Single connector supply through MiniDIN or NanoFit |
| Cable length |
5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable |
| Dimensions (Ø x H) |
Ø 46 x 28.7 mm / Ø 1.81 x 1.13” |
| Installation depth |
17 mm / 0.67" |
Compatibility
| CONDUCTOR for SCP | |
| DSP PC-Tool | 4.75a or higher |
| BRAX | |
| HELIX |
DSP PRO MK3 |
| MATCH | UP 10DSP UP 10DSP - 24V Edition UP 8DSP UP 8BMW UP 6DSP M 5.4DSP PP 86DSP MK2 |
Note: The CONDUCTOR cannot be combined with another control unit.
Scope of delivery
1 x Remote control CONDUCTOR
1 x 4.80 m connection cable
1 x 4.80 m connection cable
