Description
HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE - universal speakers evolved.
Read more info here.
Features
- 8” / 200 mm high-end woofer which combines outstanding sound performance with versatile physical integration options
- High efficiency and 3 Ohms technology for maximized power output of the amplifier
- Ultra High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
- Specially shaped rubber surround for high linear cone excursion
- Polyurethane dustcap for optimized frequency response in the upper midrange area
- Large 1.46” / 37 mm voice coil ensures minimum thermal compression and high power handling
- Compact dimensions with maximum performance - despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis

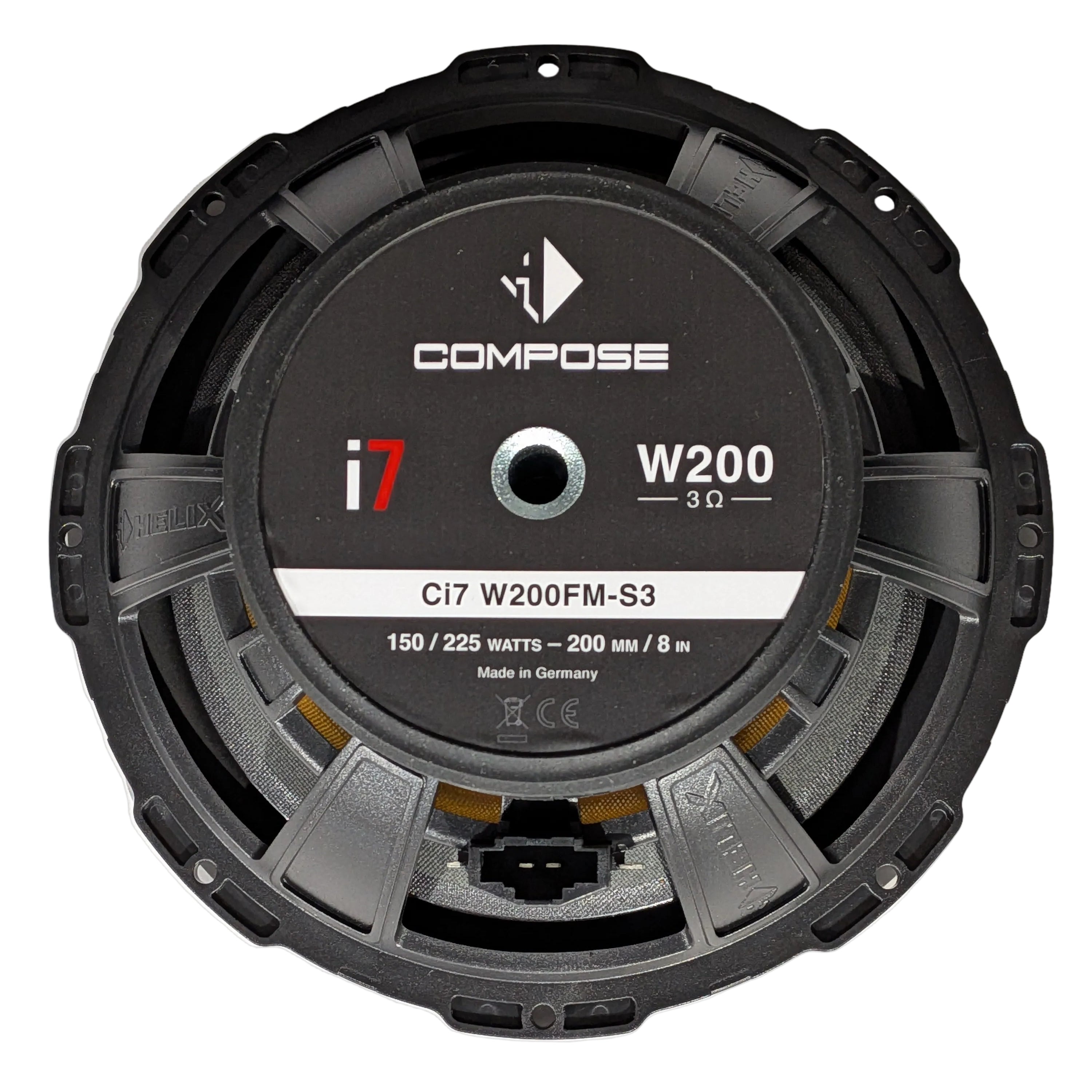

- Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
- Powerful magnet system for highest efficiency and extremely low distortion

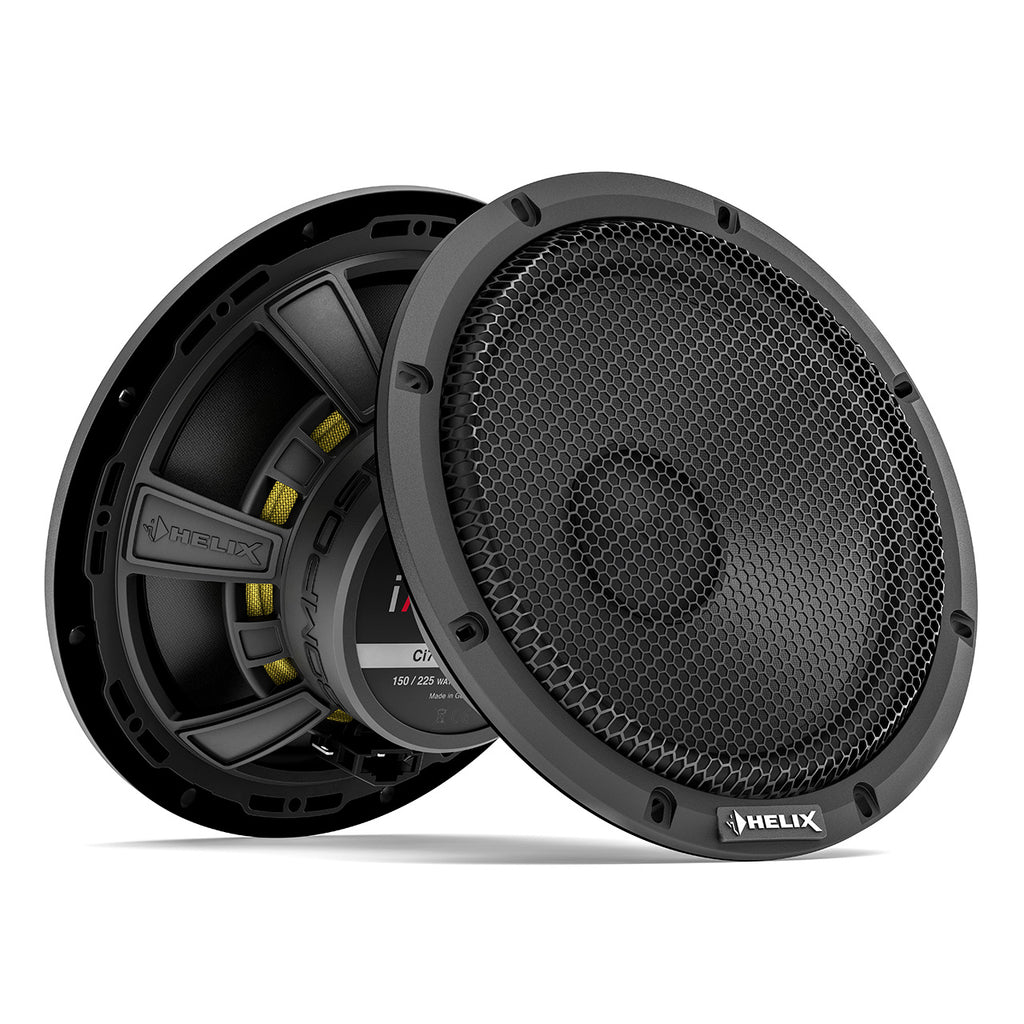

- Universal mounting ring with grille included in delivery

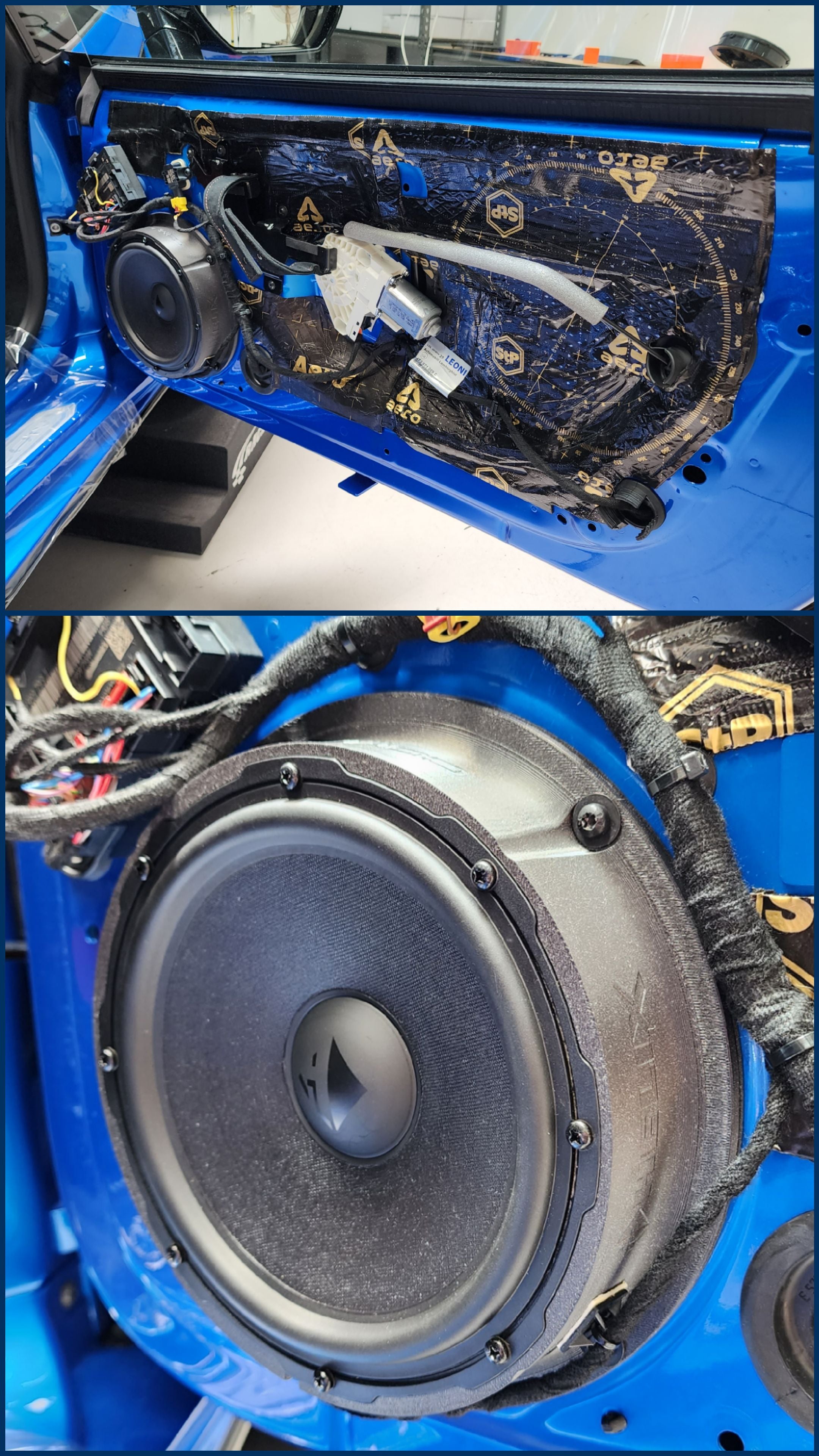

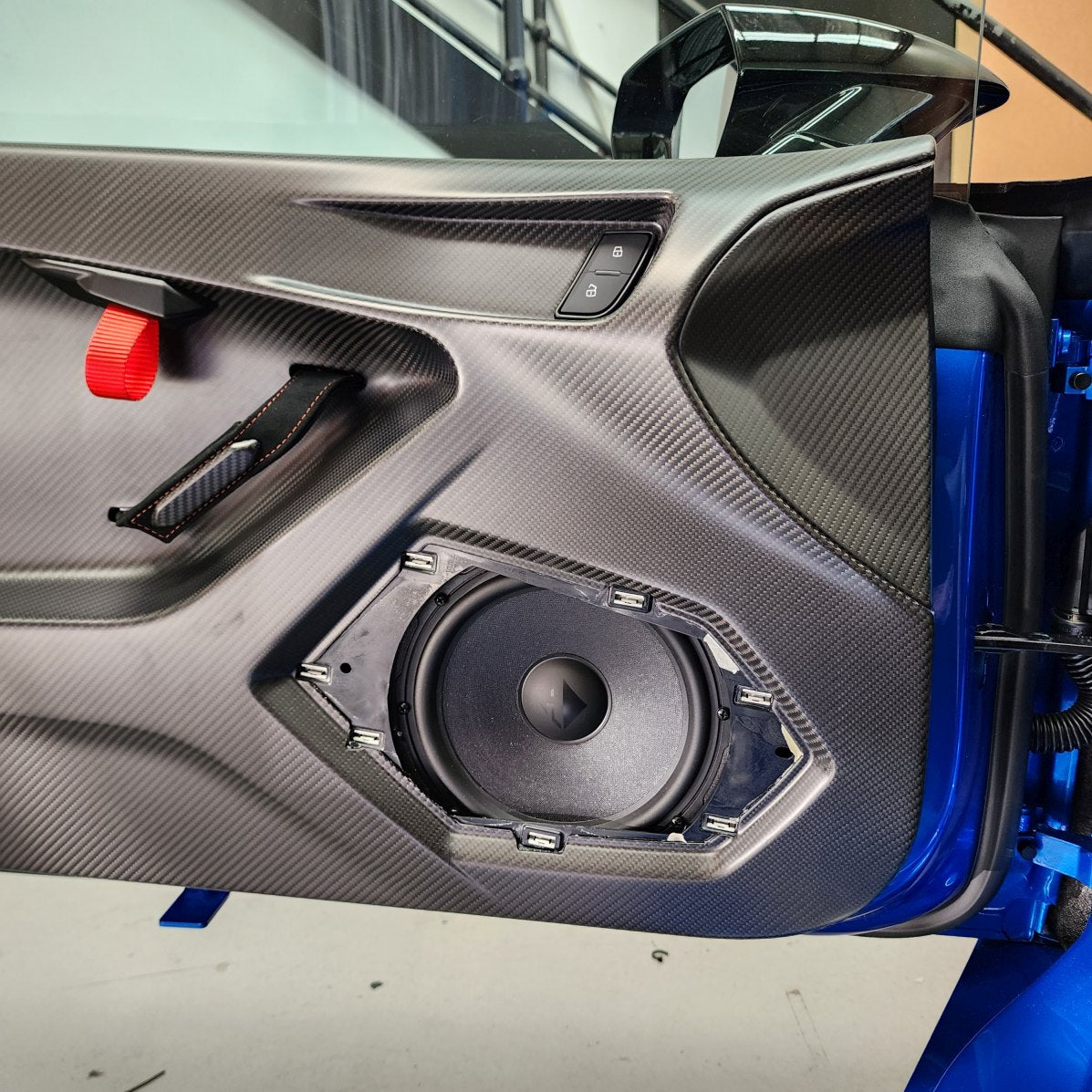

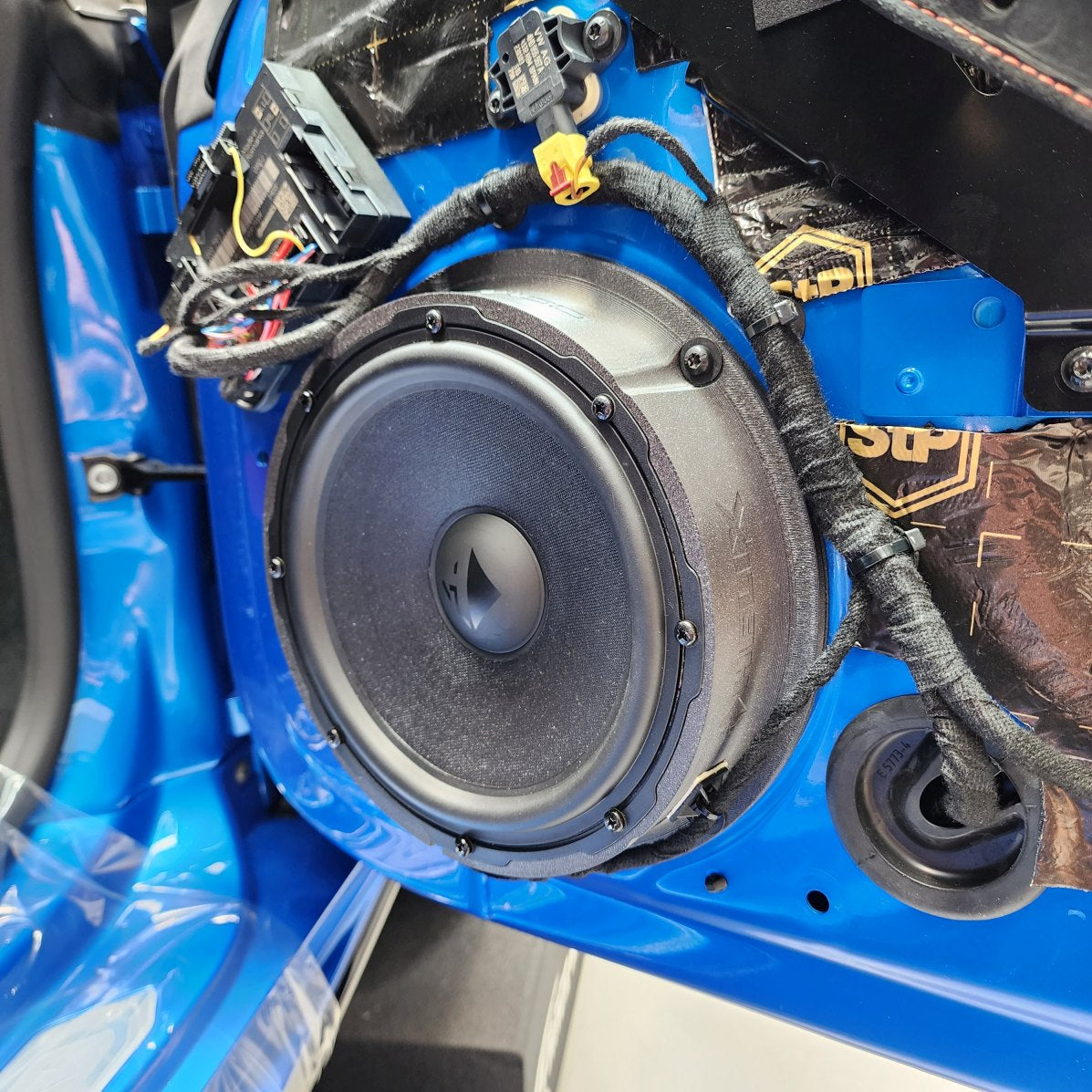

- Designed for the optionally available car-specific FlexMount200 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
- Designed for optionally available, car-specific WireKits which allow a non-destructive integration
- Made in Germany
Technical Data
| Power handling RMS / max. | P |
150 / 225 Watts |
| Impedance | Z | 3 Ω |
| DC resistance | Re | 3.0 Ω |
| Frequency response | 35 Hz - 2,500 Hz | |
| Resonance frequency | Fs | 52 Hz |
| Mechanical Q factor | Qms | 6.04 |
| Electrical Q factor | Qes | 0.78 |
| Total Q factor | Qts | 0.69 |
| Compliance | Cms | 370 µm/N |
| Equivalent air volume | Vas | 20.8 L |
| Force factor | B*I | 5.6 Tm |
| Sensitivity | SPL | 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m |
| Cone area | Sd | 201 cm² |
| Moving mass | Mms | 25.6 g |
| Cone material | Ultra-high damping (UHD) crafted paper cone | |
| Mechanical resistance | Rms | 1.40 kg/s |
| Voice coil diameter | ø | 37 mm |
| Voice coil winding height | 13.8 mm | |
| Max. linear excursion | Xmax | +/- 3.9 mm |
| Outer diameter | ø | 195 mm / 7.68" |
| Outer diameter with universal mounting ring | ø | 208.9 mm / 8.22" |
| Installation diameter | ø | 173.5 mm / 6.83" |
| Installation depth | 65.8 mm / 2.59" | |
| Features | ProConnect terminal, FlexMount200 grille |
Compatibility
- Flexmount200
- WireKits
Scope of delivery
2 x Ci7 W200FM-S3
2 x Universal mounting ring with grille
2 x Connection cable
2 x Mounting material
