Description
HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE - universal speakers evolved.
Read more info here.
Features
- 6.5” / 165 mm high-end midbass which combines outstanding sound performance with versatile physical integration options
- High efficiency and 3 Ohms technology for maximized power output of the amplifier
- Ultra High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
- Specially shaped rubber surround for high linear cone excursion
- Polyurethane dustcap for optimized frequency response in the upper midrange area
- Large 1.46” / 37 mm voice coil ensures minimum thermal compression and high power handling

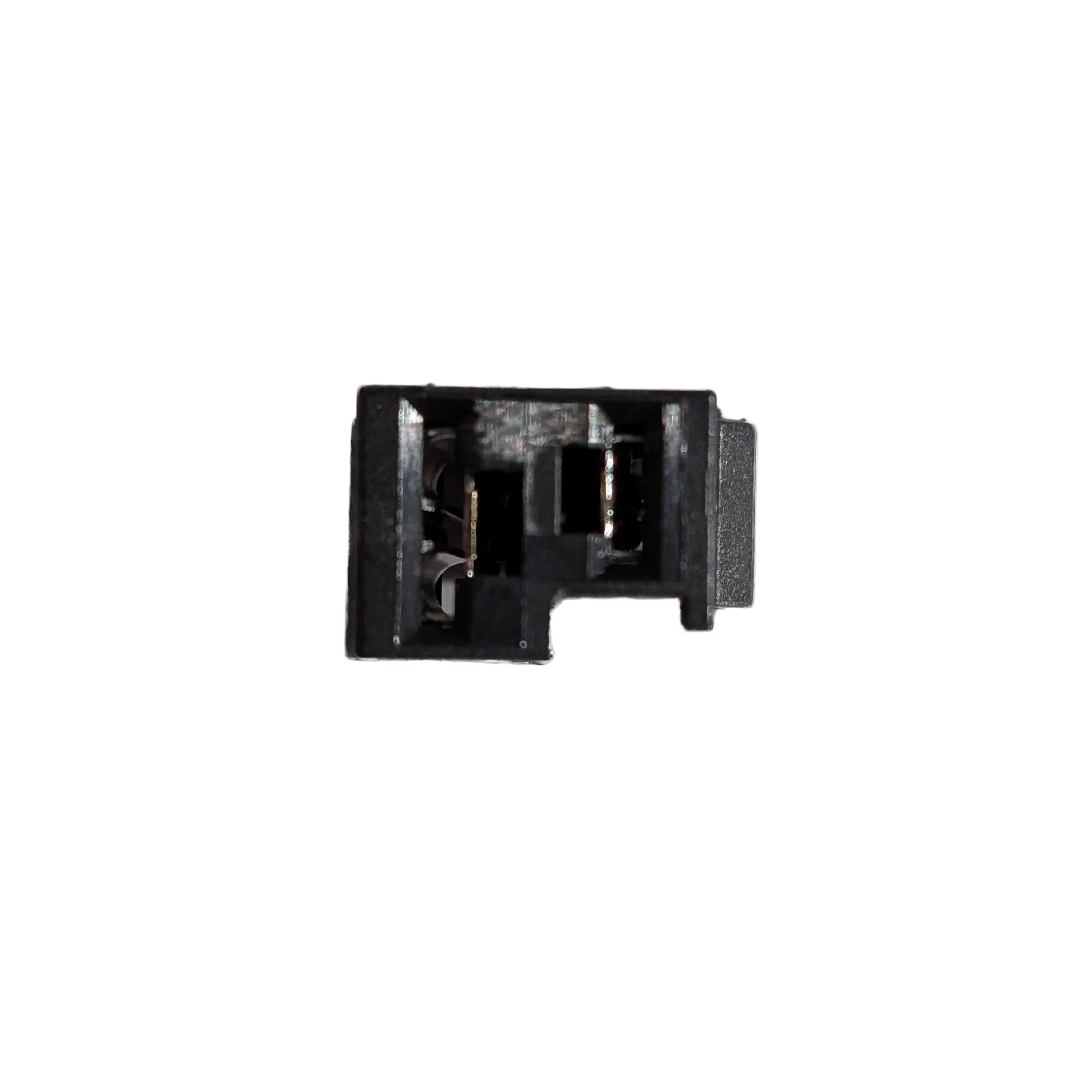

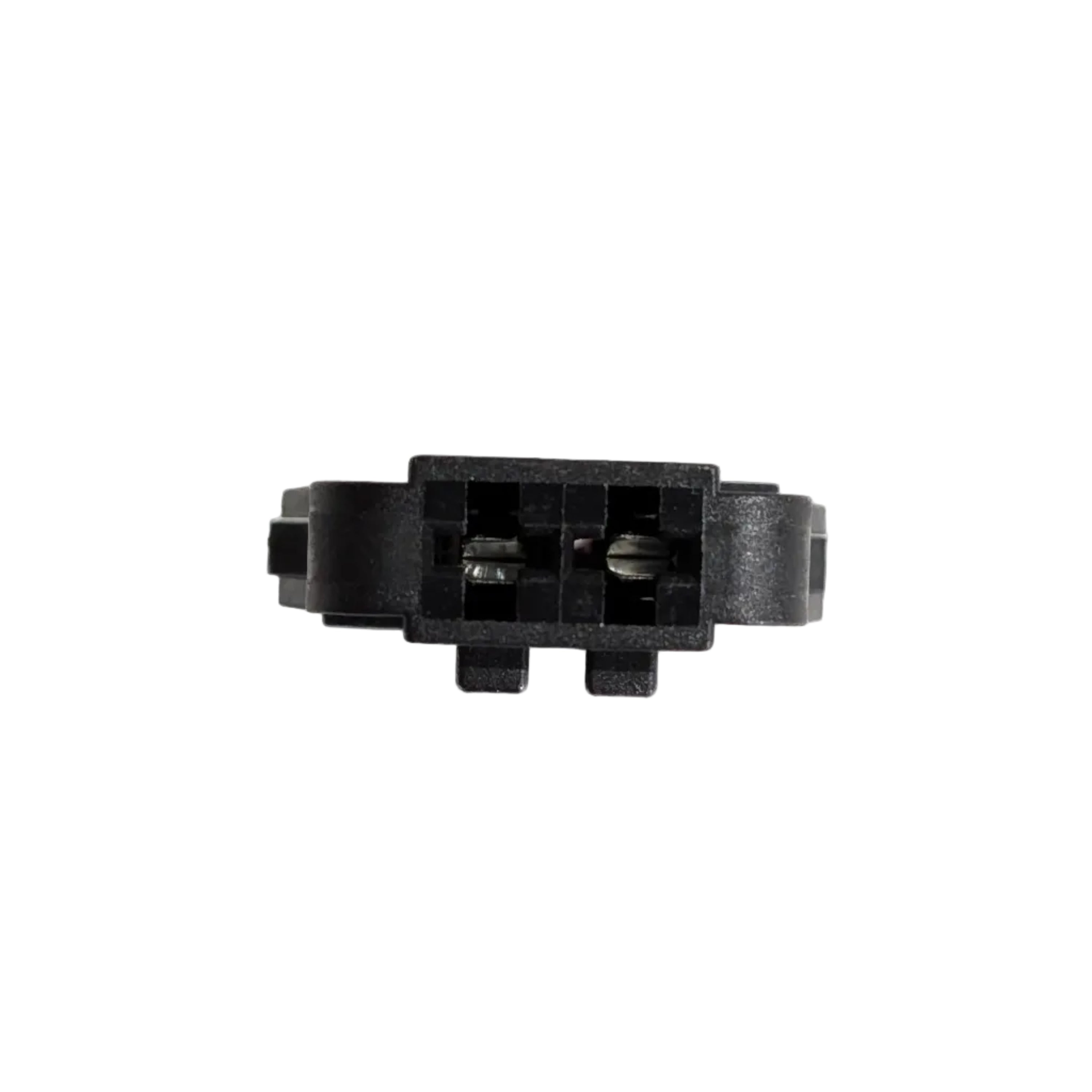

- Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
- Powerful magnet system for highest efficiency and extremely low distortion
- Designed for the optionally available car-specific FlexMount165 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
- Designed for optionally available, car-specific WireKits which allow a non-destructive integration
- Made in Germany
Technical Data
| Power handling RMS / max. | P |
150 / 225 Watts |
| Impedance | Z | 3 Ω |
| DC resistance | Re | 2.9 Ω |
| Frequency response | 50 Hz - 3,500 Hz | |
| Resonance frequency | Fs | 60 Hz |
| Mechanical Q factor | Qms | 3.00 |
| Electrical Q factor | Qes | 0.68 |
| Total Q factor | Qts | 0.55 |
| Compliance | Cms | 480 µm/N |
| Equivalent air volume | Vas | 11.6 L |
| Force factor | B*I | 4.8 Tm |
| Sensitivity | SPL | 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m |
| Cone area | Sd | 131 cm² |
| Moving mass | Mms | 14.8 g |
| Cone material | Ultra-high damping (UHD) crafted paper cone | |
| Mechanical resistance | Rms | 1.83 kg/s |
| Voice coil diameter | ø | 37 mm |
| Voice coil winding height | 13.4 mm | |
| Max. linear excursion | Xmax | +/- 3.7 mm |
| Outer diameter | ø | 165 mm / 6.5" |
| Installation diameter | ø | 142 mm / 5.59" |
| Installation depth | 65.8 mm / 2.59" | |
| Features | ProConnect terminal, FlexMount165 |
Compatibility
- FlexMount165
- WireKits
Scope of delivery

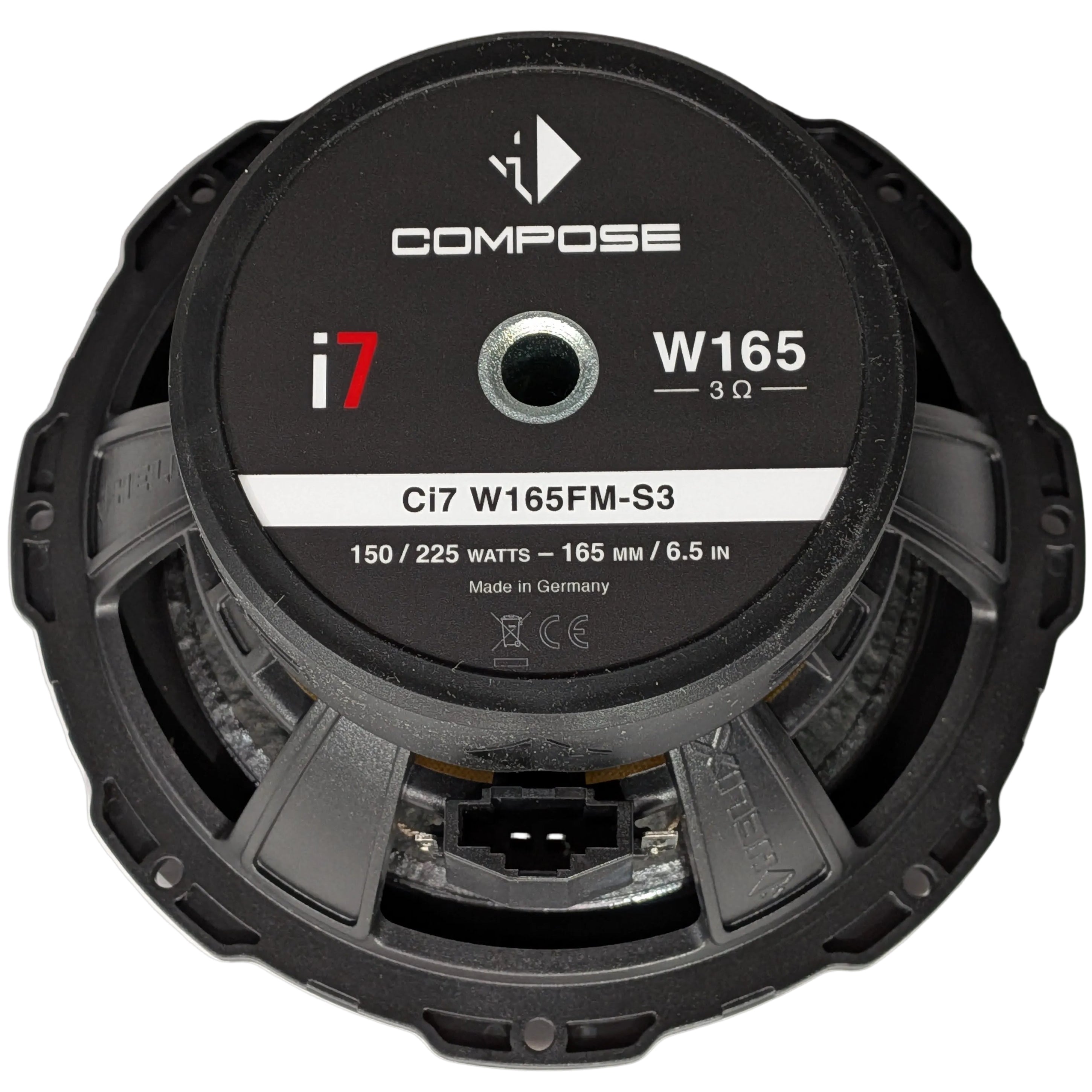

2 x Ci7 W165FM-S3
2 x Connection cable
2 x Mounting material
