Description
HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE - universal speakers evolved.
Read more info here.
Features

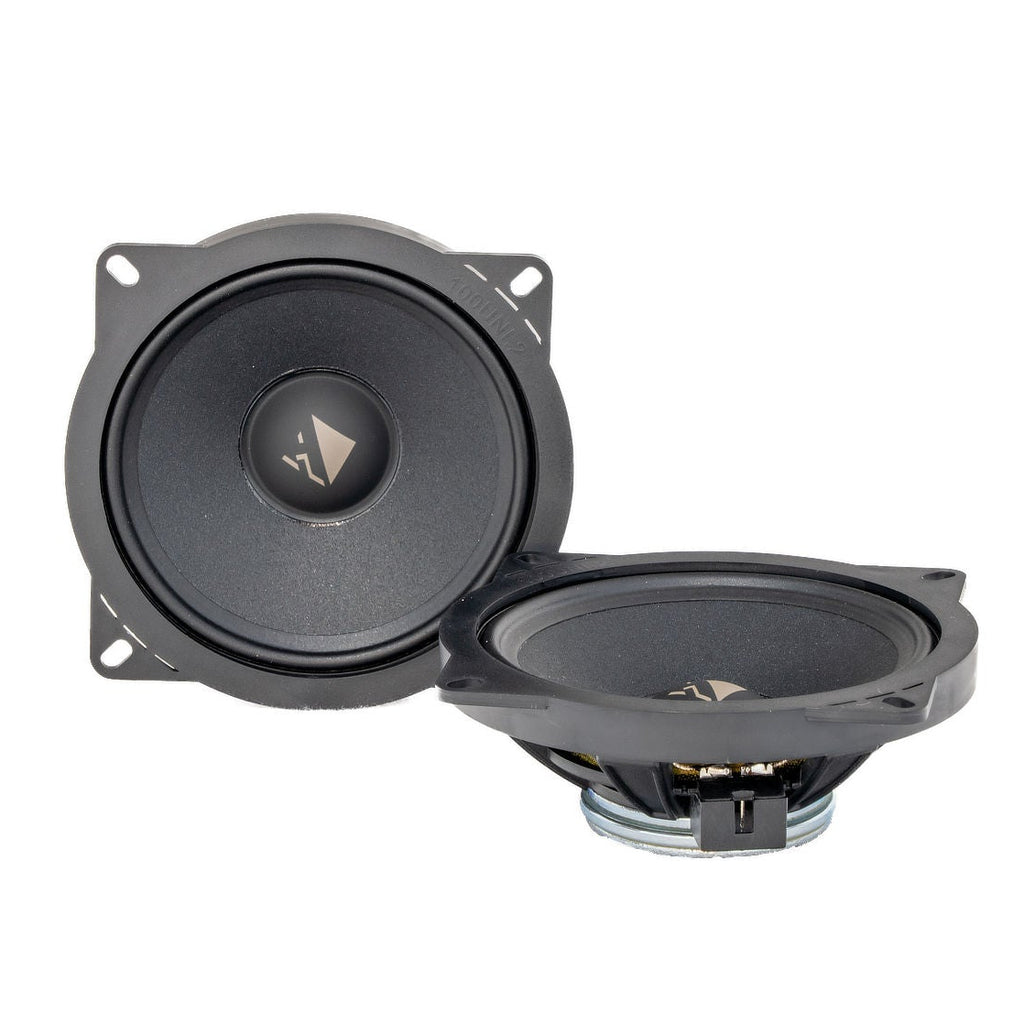

- 4” / 100 mm performance midrange speaker which combines outstanding sound quality with versatile physical integration options
- High efficiency and 3 Ohms technology for maximized power output of the amplifier
- Unique Cenosphere coated paper cone for precise and detailed sound reproduction
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
- Specially shaped rubber surround for high linear cone excursion
- Polyurethane dustcap for optimized frequency response in the upper midrange area
- 1” / 25 mm voice coil ensures high power handling

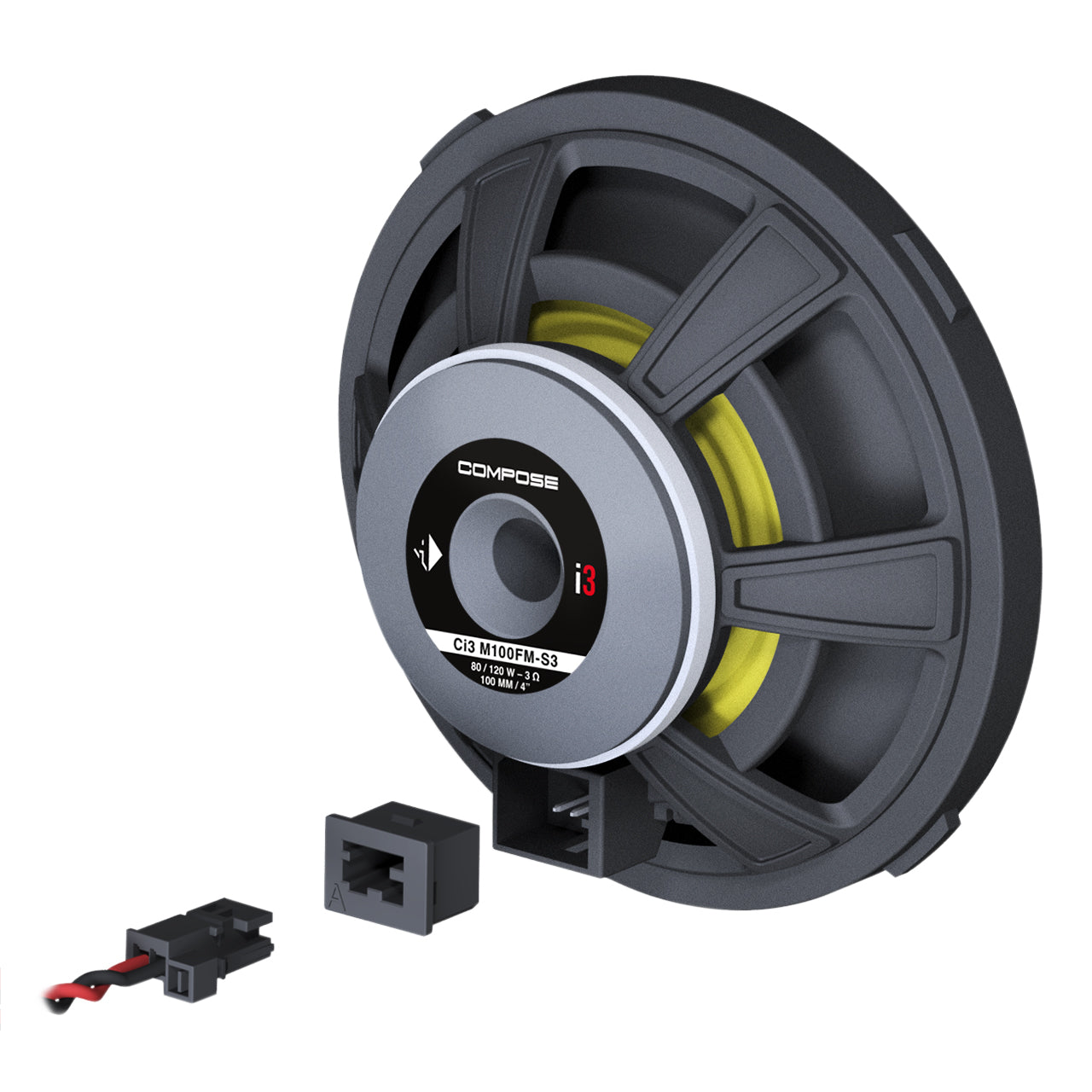

- Automotive grade FlexConnect terminal for fast, secure and fail-safe connection
- Shallow neodymium magnet system for low installation depth and high efficiency
- Universal FlexMount100 mounting ring included in delivery
- Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
Technical Data
| Power handling RMS / max. | P |
80 / 120 Watts |
| Impedance | Z | 3 Ω |
| DC resistance | Re | 3.0 Ω |
| Frequency response | 120 Hz - 6,000 Hz | |
| Resonance frequency | Fs | 146 Hz |
| Mechanical Q factor | Qms | 4.49 |
| Electrical Q factor | Qes | 1.02 |
| Total Q factor | Qts | 0.83 |
| Compliance | Cms | 280 µm/N |
| Equivalent air volume | Vas | 1.1 L |
| Force factor | B*I | 3.4 Tm |
| Sensitivity | SPL | 91 dB @ 2.83 V / 1m 87 dB @ 1W / 1m |
| Cone area | Sd | 53 cm² |
| Moving mass | Mms | 4.3 g |
| Cone material | Paper with Cenosphere coating | |
| Mechanical resistance | Rms | 0.87 kg/s |
| Voice coil diameter | ø | 25 mm |
| Voice coil winding height | 4.8 mm | |
| Max. linear excursion | Xmax | +/- 2.0 mm |
| Outer diameter | ø | 98 mm / 3.86" |
| Outer diameter with universal mounting ring | ø | 104,5 mm / 4.11" |
| Installation diameter | ø | 89 mm / 3.50" |
| Installation depth | 30 mm / 1.18" | |
| Features | FlexConnect terminal, powerful push-pull neodymium magnet system, FlexMount100 |
Compatibility
- FlexMount100
- FlexConnect Inlays
Scope of delivery
- 2 x Ci3 M100FM-S3
- 2 x Universal FlexMount100 (with standard 4-point mounting)
- 2 x FlexConnect inlay A
- 2 x Universal connection cable
- 2 x Mounting material
