Description
Overview
Two additional channels – maximum flexibility

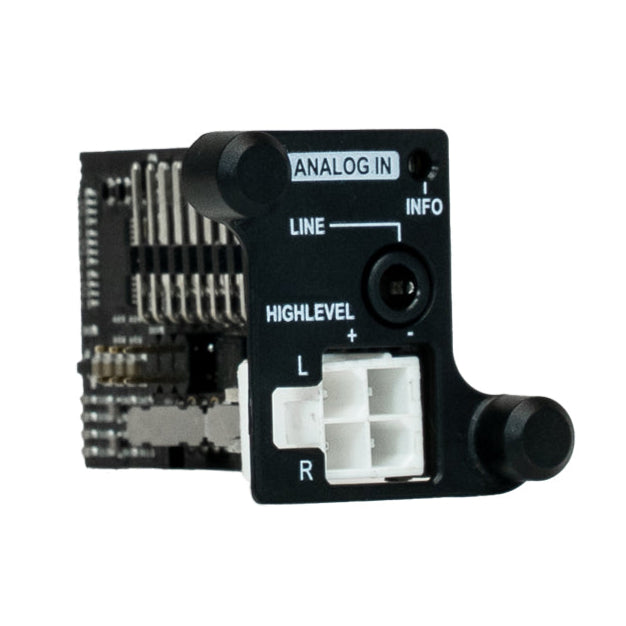

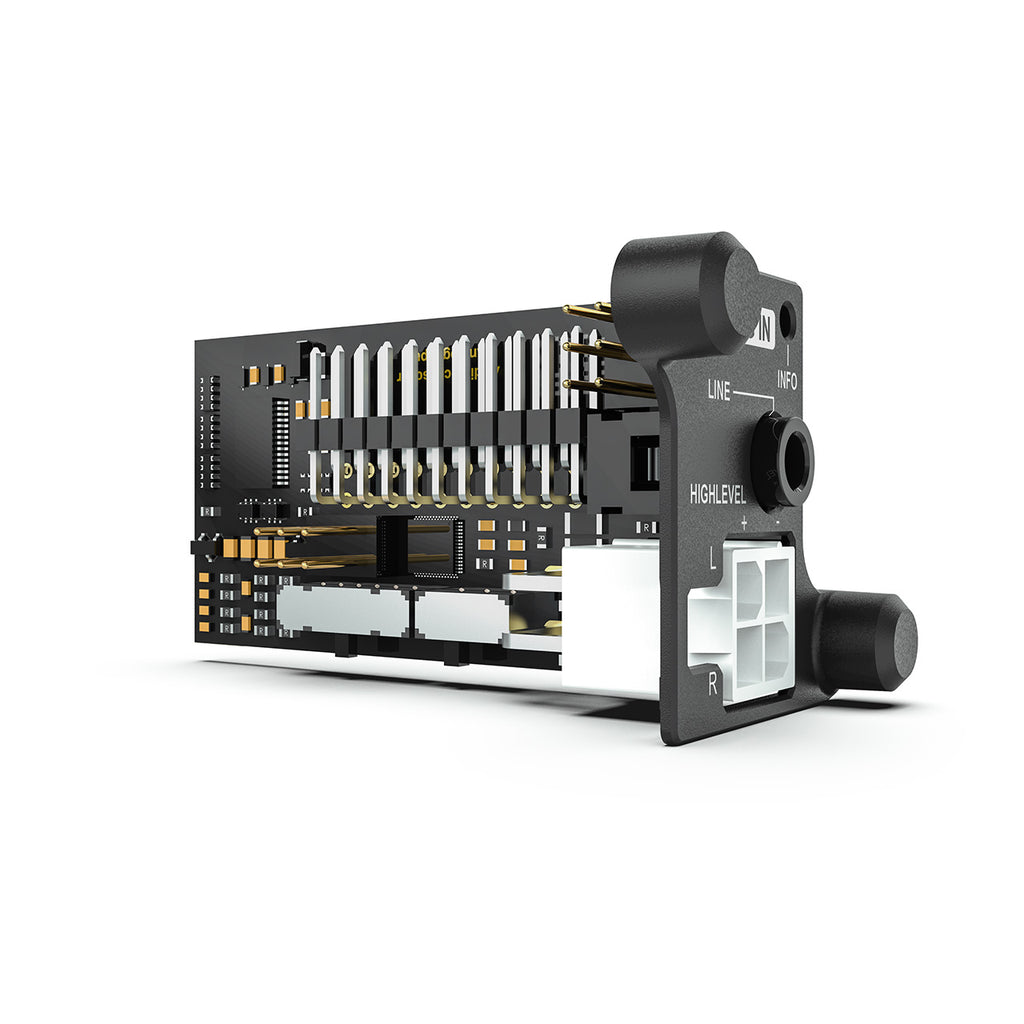

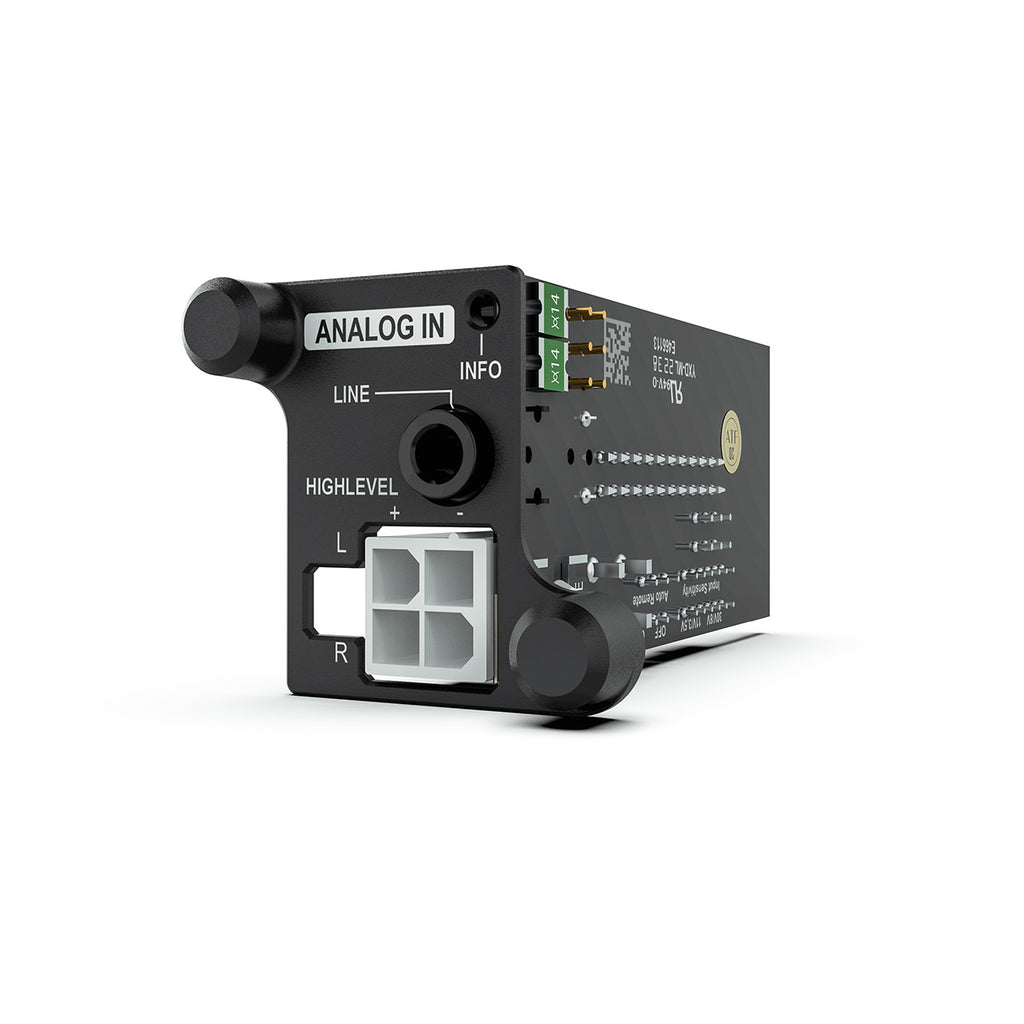

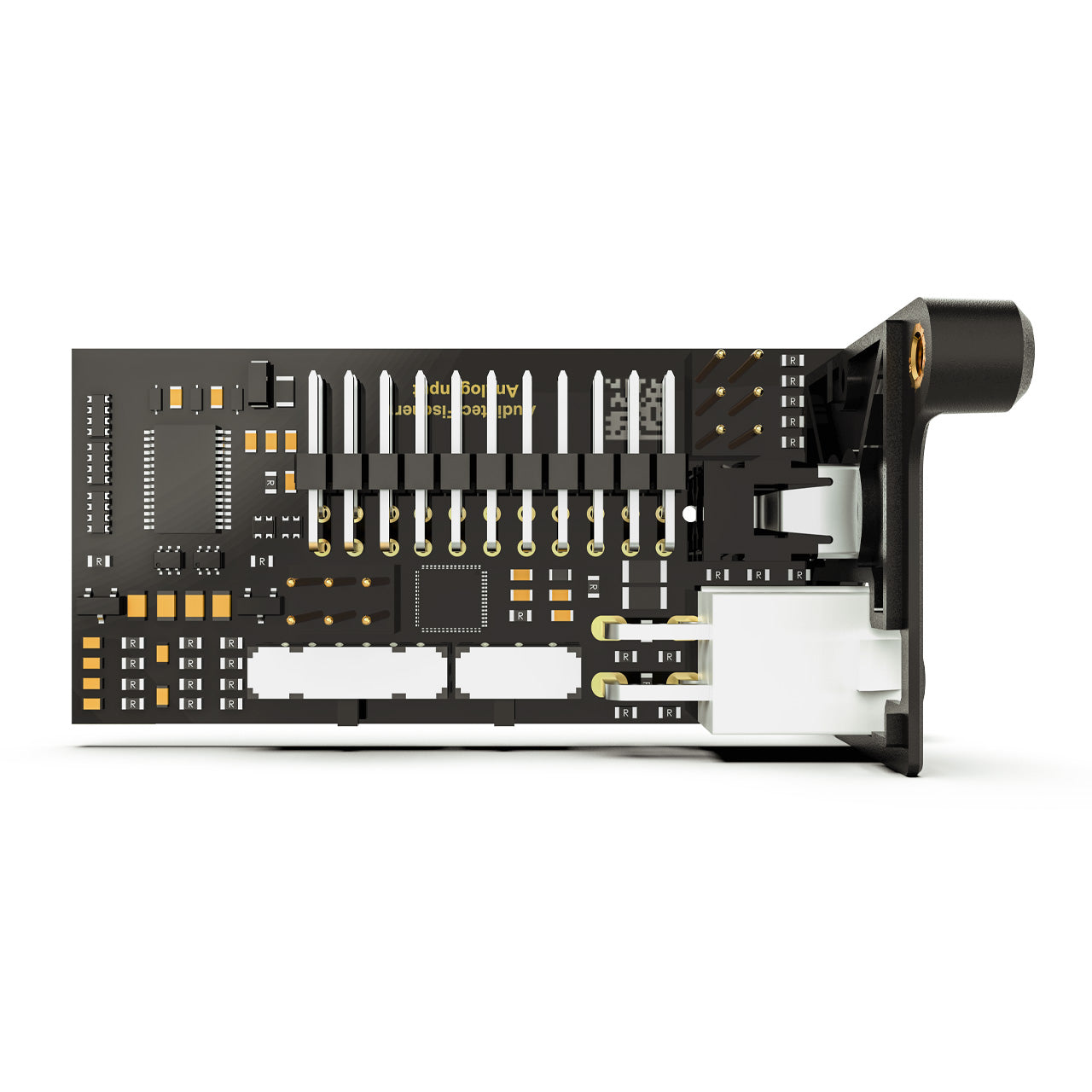

The Extension Card 2.0 ANALOG IN expands your DSP or DSP amplifier with two analog input channels – ideal for complex application scenarios, connecting additional signal sources such as a TV or smartphone, or integration into OEM premium sound systems. Whether highlevel or lowlevel signal: this module provides the right interface, offering flexible use and full configuration via the DSP PC-Tool.
Comprehensive connectivity

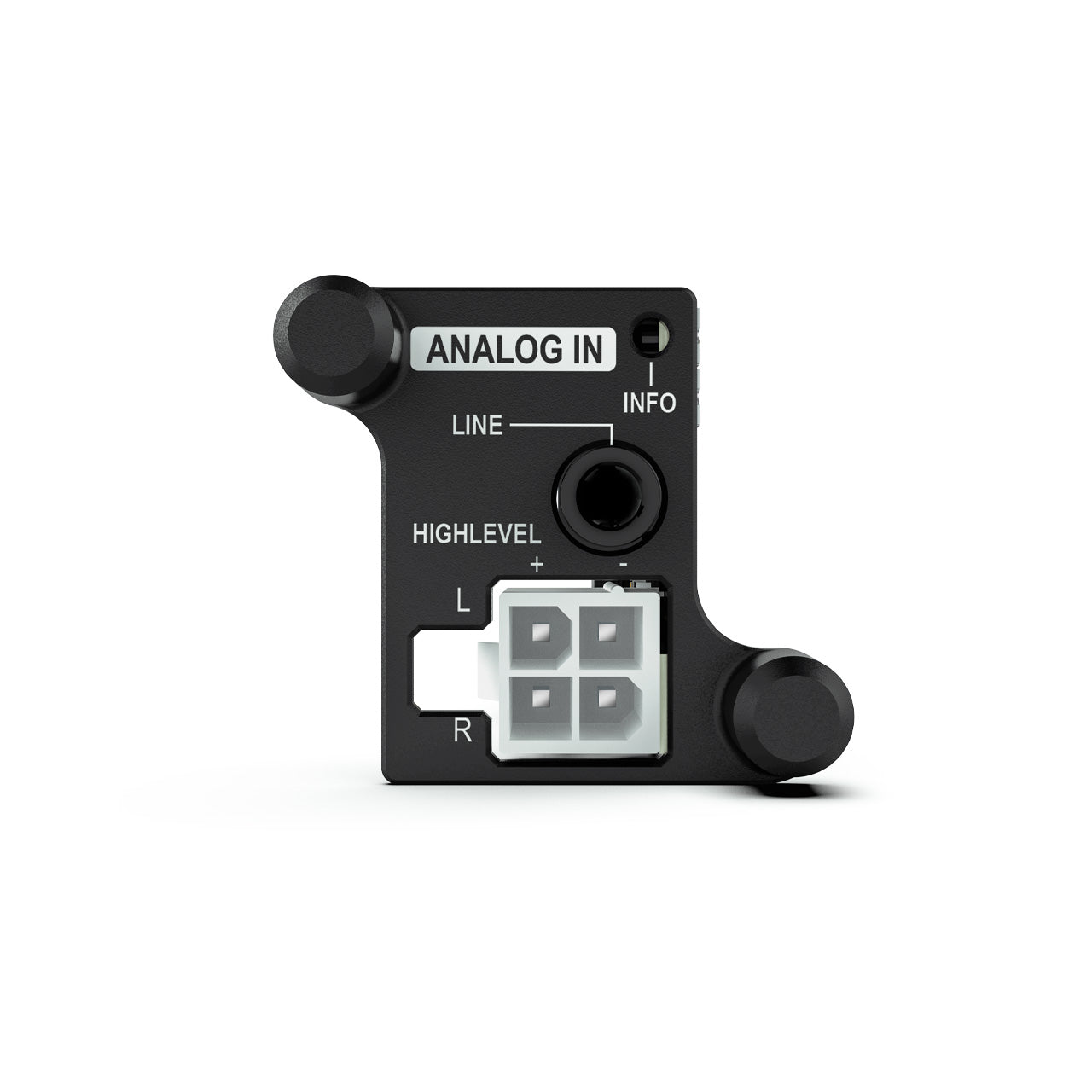

A high-quality highlevel input with ADEP.3 circuit, Auto Remote function, and adjustable input sensitivity from 1.5 to 30 V ensures seamless integration with OEM head units or factory amplifiers. For signal sources with a lowlevel output, the module offers an additional 3.5 mm stereo input with adjustable input sensitivity from 0.5 to 8 V.
Freely configurable via DSP PC-Tool
The inputs can be freely configured in the DSP PC-Tool – either as additional main inputs or as an AUX source. This way, the system adapts precisely to your specific needs.
Seamless integration – maximum compatibility
The Extension Card 2.0 ANALOG IN is compatible with all HELIX and MATCH DSP products featuring an Extension Card 2.0 slot. A module-specific plastic cover is included for easy installation into the device’s side panel. A well-designed solution for even more connection options.
Features
- Extends the DSP device by two additional analog input channels
- Highlevel input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts
- Lowlevel stereo line input via 3.5 mm jack with an adjustable input voltage range from 0.5 to 8 Volts
- Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source
- Including plastic cover panel with injected threated inserta and MOLEX connection cable for the highlevel input
- Made in Germany
Technical data
| Input voltage highlevel |
1.5 - 30 Volts (adjustable) |
| Input voltage lowlevel |
0.5 - 8 Volts (adjustable) |
| Lowlevel input |
3.5 mm jack |
| Additional features |
ADEP.3, Auto Remote function |
Compatibility
All HELIX and MATCH DSP devices featuring Extension Card 2.0 slot
Scope of delivery
1 x ANALOG IN module
1 x Module-specific cover panel
1 x MOLEX connection cable for the highlevel input
1 x Mounting screws
