BRAX DSP – Upgrade Output Analog ESS
Our engineers faced the monumental task of enhancing the BRAX DSP to fulfill our commitment to uncompromising sound quality. Every detail, even those seemingly insignificant at first glance, must be continually scrutinized and optimized – even at the level of BRAX products. This rigorous process enables us to push the boundaries of sound quality and technical performance further.

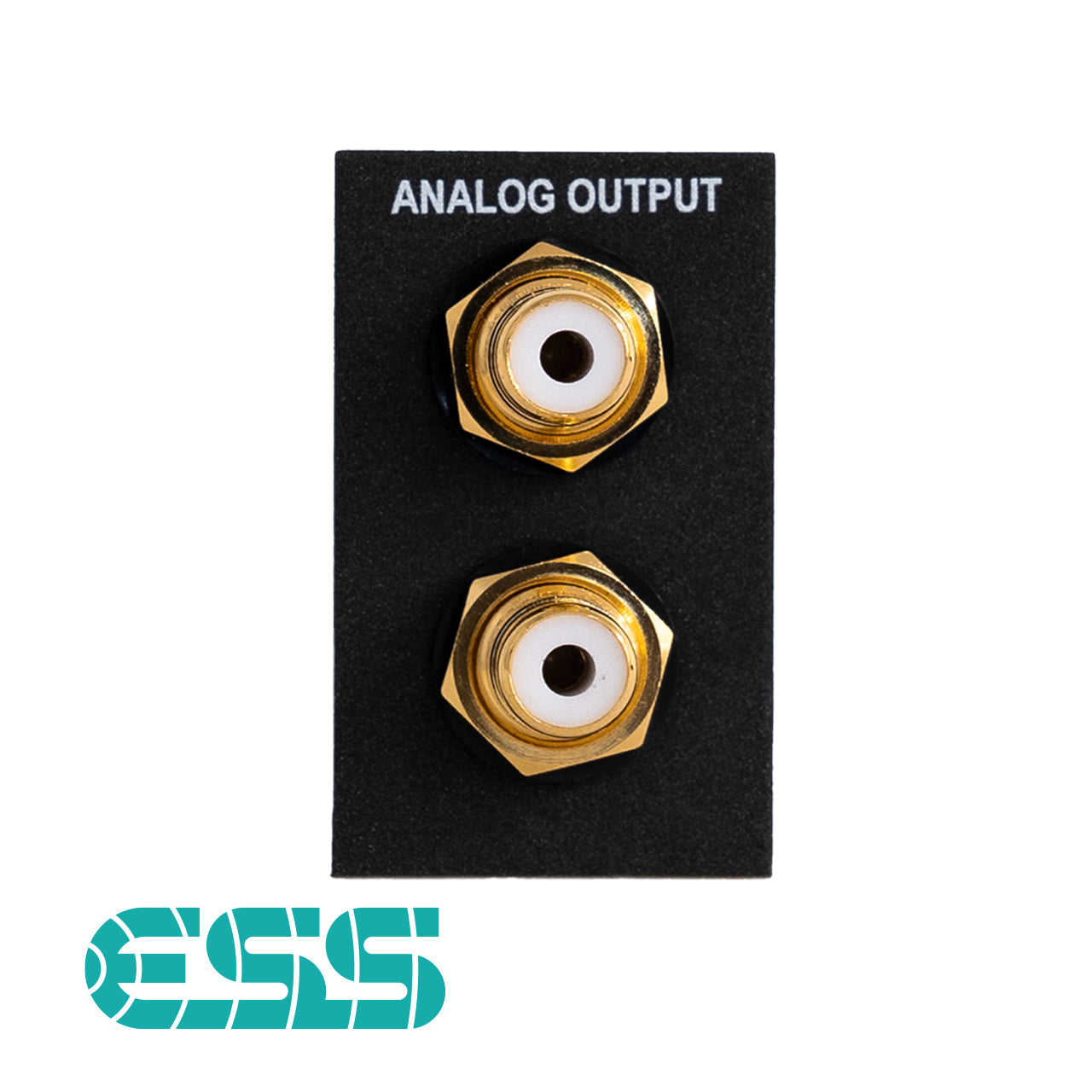

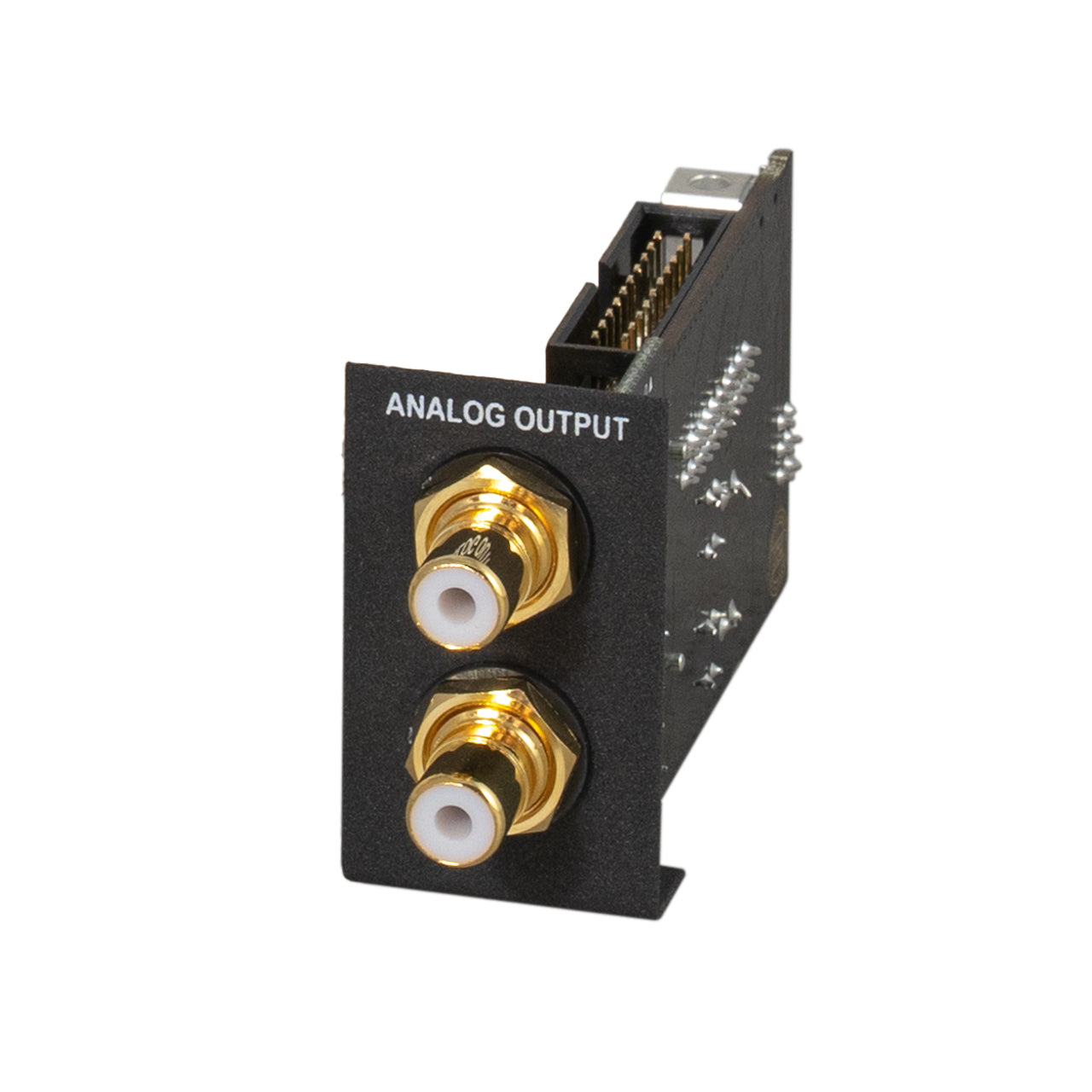

The outcome is the new Analog Output Module ESS. It employs first-class components such as the high-performance ESS ES9039Q2M 32 Bit, 2-channel D/A converter with HyperStream IV Dual DAC technology and advanced SABRE HiFi architecture as well as the TI/BurrBrown OPA1612 operational amplifier, ensuring unparalleled dynamics, extremely low distortion, and high-end audio playback for the utmost enjoyment. Additionally, seven configurable digital FIR output filters and the adjustable output voltage allow a precise adaptation to any sound profile. The Analog Output Module ESS is upgradeable in any BRAX DSP and facilitates automatic detection and display of all relevant measurements in the DSP PC-Tool (from V5.05).
Features
- Exceptionally pure, authentic music reproduction with ultimate, outstanding sound quality thanks to the use of the latest and most modern component selections from the world’s leading-edge manufacturers
- Latest ultra advanced Analog Stereo Output Module for BRAX DSP featuring the latest flagship DAC model from ESS, the ES9039Q2M
- ESS ES9039Q2M is a high performance 32 Bit, 2-channel audio D/A converter with HyperStream IV Dual DAC technology and advanced SABRE HiFi architecture for unprecedented dynamic range and ultra-low distortion
- Analog signal path with the highest quality OpAmp in its class, the TI/BurrBrown OPA1612 with SoundPlus technology
- Power is supplied via an ingenious dual-supply concept in which each stereo channel has its own power supply
- 7 different, software-configurable digital FIR output filters with different characteristics for a perfectly fine-tuned audio experience
- Can be upgraded in any BRAX DSP including automatic detection of the module and display of the relevant measured values in the DSP PC-Tool (min. DSP PC-Tool V5.05 required)
- Switchable output voltage of 2, 4 or 8 Volts
Technical data
|
Signal converter |
ESS 9039Q2M with HyperStream IV Dual DAC technology and advanced SABRE HiFi architecture |
|
Operational amplifier |
TI/BurrBrown OPA1612 with SoundPlus technology |
|
Sampling rate |
192 kHz |
|
Frequency range |
10 Hz - 80 kHz |
|
Signal-to-noise ratio |
130 dB (A-weighted) |
|
Total harmonic distortion (THD+N) |
-116 dB (= 0.00015 %) |
|
IM distortion (IMD) |
-106 dB (= 0.0005 %) |
|
Crosstalk |
> 110 dB (@1 kHz) |
|
Output voltage |
2 / 4 / 8 Volt RMS adjustable |
Compatibility
- BRAX DSP
Scope of delivery
1 x BRAX DSP – Upgrade Module – Analog Output with ESS
