Description
HELIX IK E8.1-SVC2
The HELIX IK E8.1-SVC2 combines compactness with a powerful low-frequency punch. Its downfire enclosure ensures optimal bass dispersion while offering robust protection for the speaker, making it a smart solution for tight spaces without compromising on sound quality.
Overview

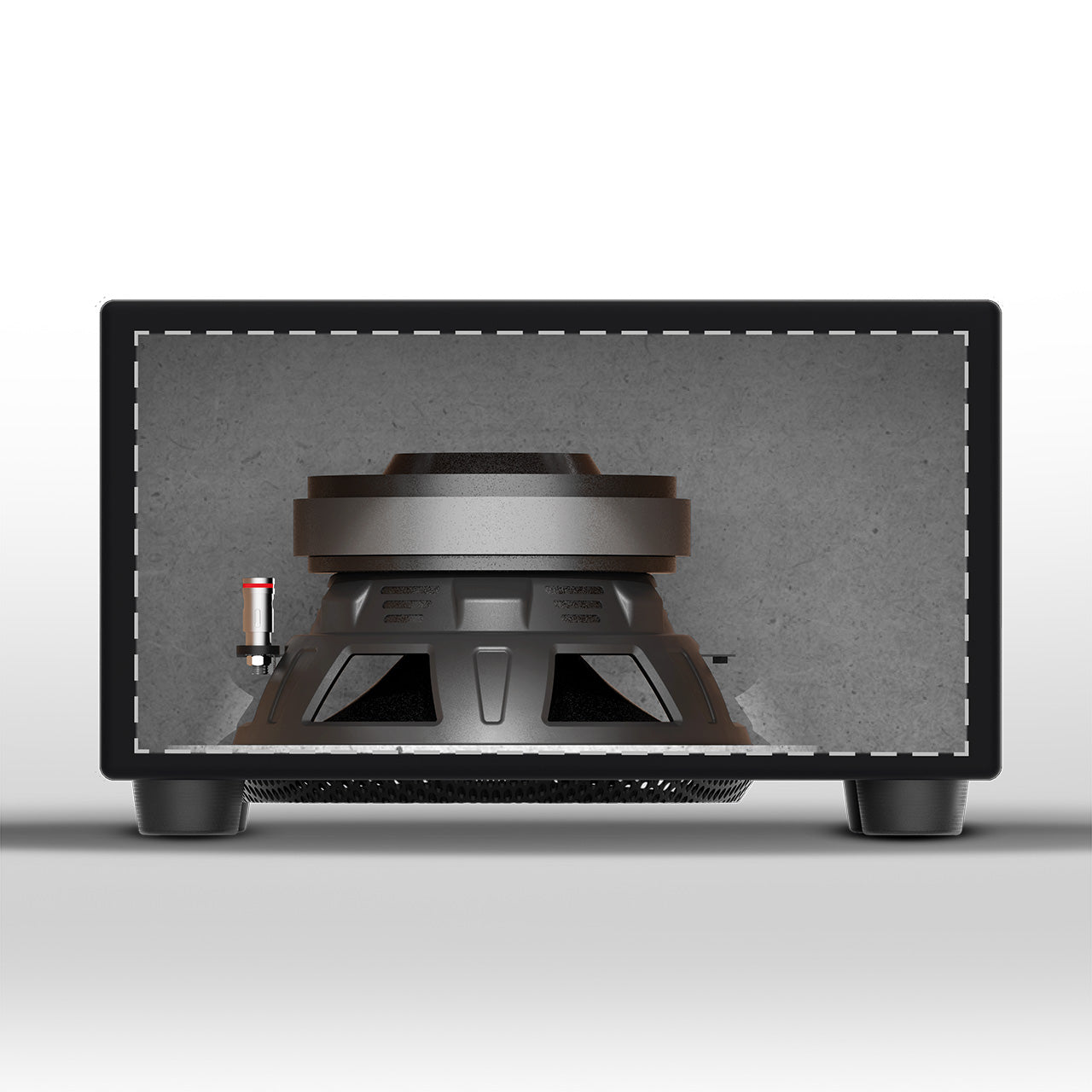

Compact and efficient design
The sophisticated and compact ported enclosure design of the IK E8.1-SVC2 delivers impressive sound pressure and deep bass, even in the tightest spaces. Equipped with an 8” (200 mm) subwoofer featuring a hand-scooped paper cone, this subwoofer ensures rich, powerful low-frequency performance across the entire vehicle.
Comfortable installation and configuration
With the pluggable screw terminal, installation or removal of the subwoofer is fast and secure. The single 2 Ohms voice coil provides the groundwork for the maximum power output from the amplifier.
Built for durability
The enclosure is covered with a sturdy carpet featuring the embroidered HELIX logo, ensuring both style and resilience. Furthermore, the feet, equipped with Velcro tape, provide a secure and stable stand within the vehicle.
Features
- Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
- Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
- Equipped with one powerful 200 mm / 8” subwoofer with hand-scooped paper cone for rich, deep bass
- Chassis with 1 x 2 Ohms single voice coil for maximum power output of the amplifier

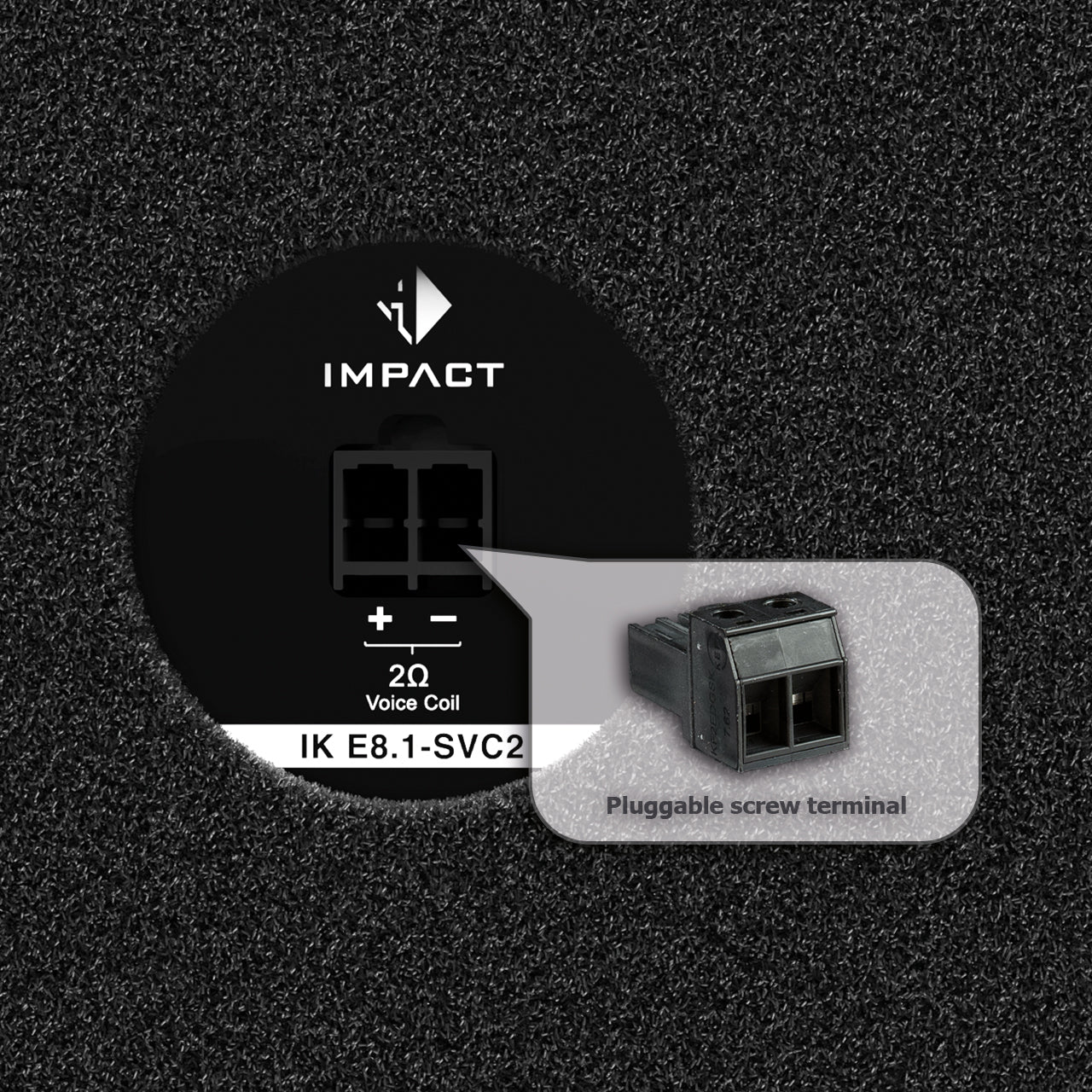

- Pluggable screw terminal for quick and safe installation and removal
- Feet with Velcro tape for a secure stand in the vehicle
- Sturdy carpet surface with embroidered HELIX logo
Technical data
| Power handling RMS | P | 300 Watts |
| Recommended amplifier power | RMS | 150 - 300 Watts |
| Impedance | z | 1 x 2 Ω |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Port tuning frequency | Fb | 43 Hz |
| Sensitivity |
SPL |
91 dB @ 2.83V / 1m |
| Dimensions (H x W x D) |
184 x 310 x 285 mm |
|
| Integrated subwoofer chassis | HELIX IK W8-SVC2 | |
| Recommended DSP settings | "Self-define" highpass 44 Hz / Q = 1.6; EQ filter: 115 Hz / Q = 0.9 / -3.5 dB |
Scope of delivery
1 x Downfire enclosure subwoofer IK E8.1-SVC2
1 x Data sheet
