Description
Overview
The HELIX IK E8.1 combines compactness with a powerful low-frequency punch. Its downfire enclosure ensures optimal bass dispersion while offering robust protection for the speaker, making it a smart solution for tight spaces without compromising on sound quality.
Compact and efficient design
The sophisticated and compact ported enclosure design of the IK E8.1 delivers impressive sound pressure and deep bass, even in the tightest spaces. Equipped with an 8” (200 mm) subwoofer featuring a hand-scooped paper cone, this subwoofer ensures rich, powerful low-frequency performance across the entire vehicle.
Comfortable installation and configuration
With the pluggable screw terminal, installation or removal of the subwoofer is fast and secure. With the option of a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.
Built for durability
The enclosure is covered with a sturdy carpet featuring the embroidered HELIX logo, ensuring both style and resilience. Furthermore, the feet, equipped with Velcro tape, provide a secure and stable stand within the vehicle.
Features
- Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
- Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
- Equipped with one powerful 200 mm / 8” subwoofer with hand-scooped paper cone for rich, deep bass
- Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm

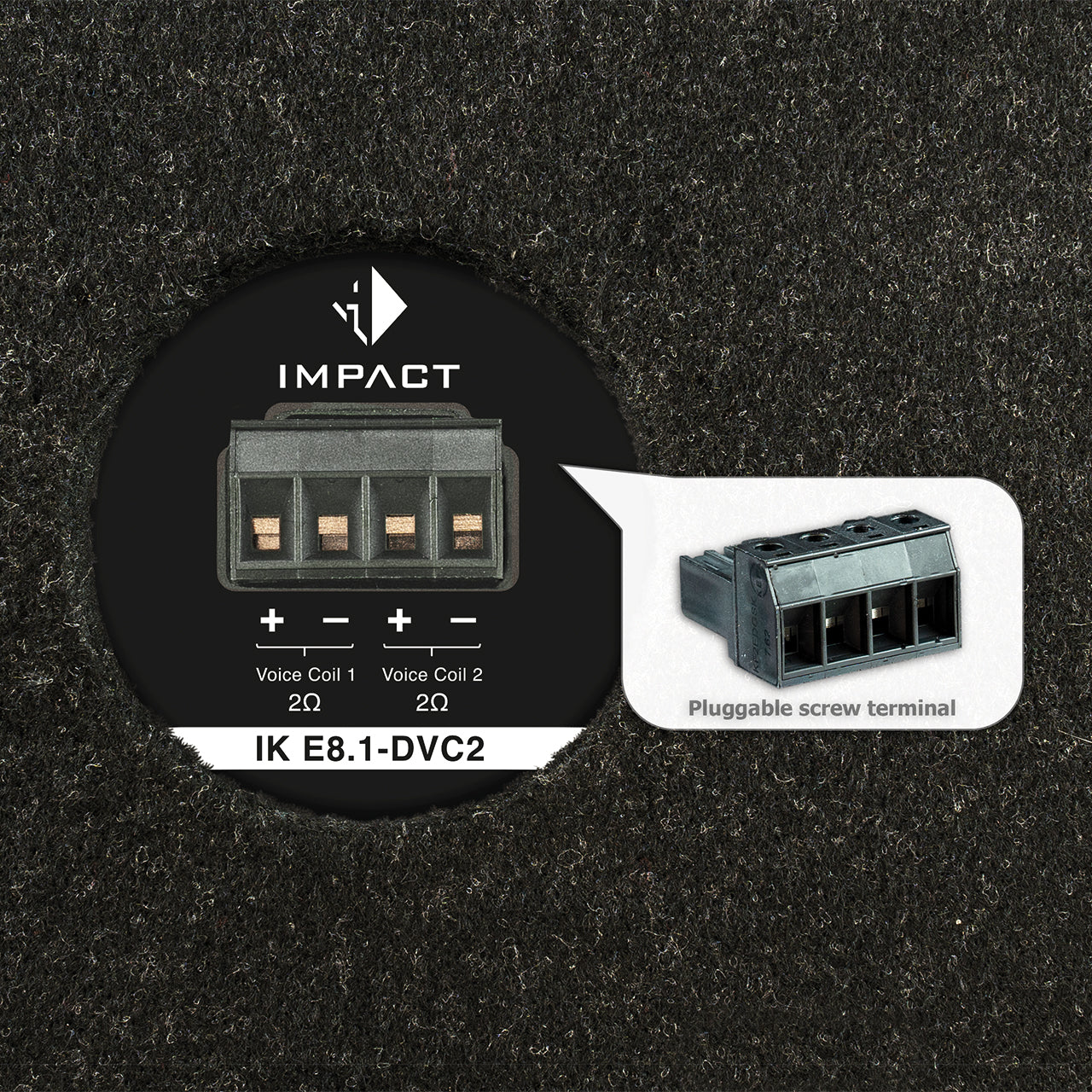

- Pluggable screw terminal for quick and safe installation and removal
- Feet with Velcro tape for a secure stand in the vehicle
- Sturdy carpet surface with embroidered HELIX logo
Technical data
| IK E8.1-DVC2 | ||
| Power handling RMS | P | 300 Watts |
| Recommended amplifier power | RMS | 150 - 300 Watts |
| Impedance | z | 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Port tuning frequency | Fb | 43 Hz |
| Sensitivity |
SPL |
89 dB @ 2.83V / 1m |
| Dimensions (H x W x D) |
184 x 310 x 285 mm |
|
| Integrated subwoofer chassis | HELIX IK W8-DVC2 | |
| Recommended DSP settings | "Self-define" highpass 44 Hz / Q = 1.6; EQ filter: 115 Hz / Q = 0.9 / -3.5 dB |
Scope of delivery
