Description
Overview
Powerful bass, compact format – the performance subwoofer for everyday use
The HELIX IK E10.1 delivers deep, punchy bass in a space-saving design – ideal for those who want rich low-frequency performance without the bulk of a conventional subwoofer enclosure.
Smart downfire design
The intelligent downfire construction ensures optimal bass dispersion in the vehicle. It uses the vehicle floor as an acoustic reflection surface to intensify low-frequency output, offers optimum protection for the speaker, and allows for a lower-profile design. Combined with bass-reflex technology and a powerful 250 mm chassis, it provides a dynamic bass experience with impressive sound pressure while making efficient use of available space.
High-grade components for sonic strength
The IK E10.1 features the 250 mm IK W10 chassis. Its extremely stiff cone made of hand-scooped paper fibers combined with the heavy-duty driver system converts amplifier power easily and without compression effects into loads of sound pressure – while also scores sonically with subtle beats.
Flexible connection
With the option of a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.
Rugged, practical, and easy to install

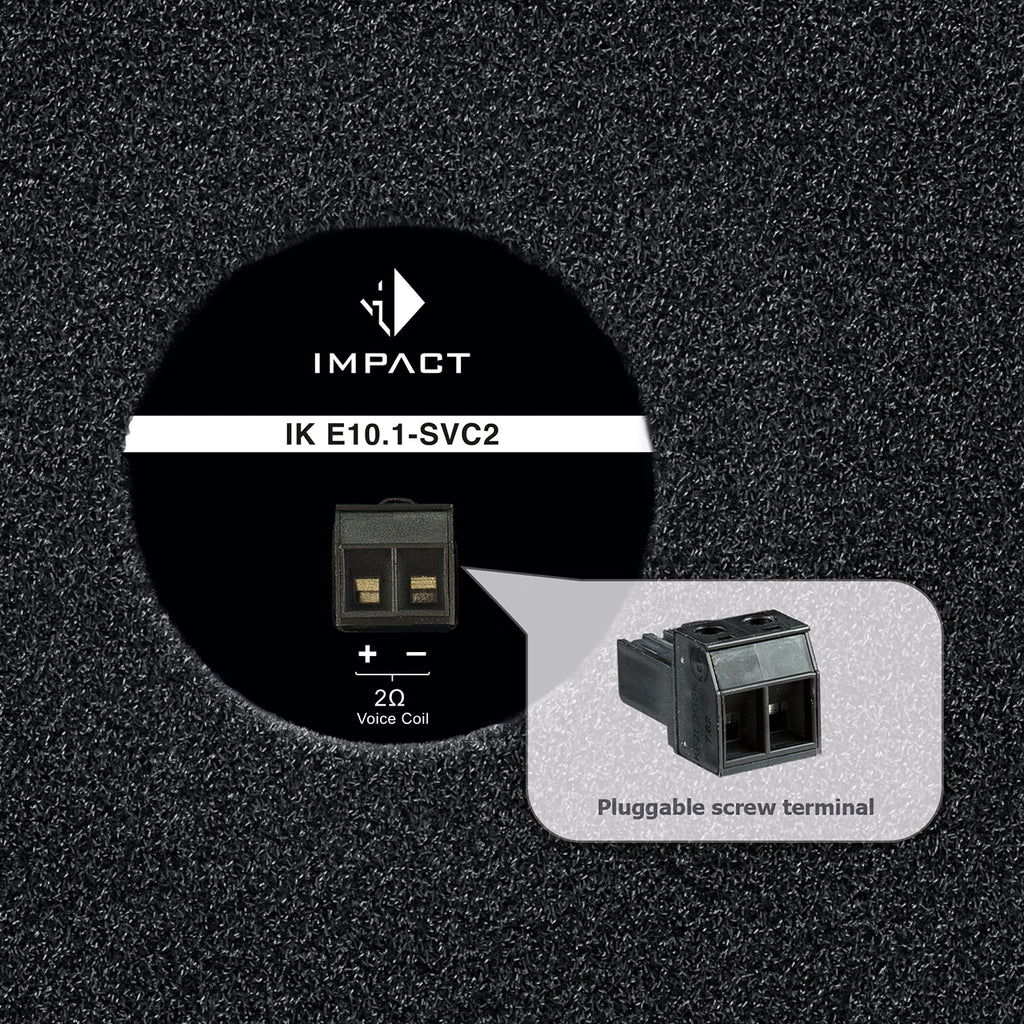

The enclosure is covered with a sturdy carpet featuring the embroidered HELIX logo, making it not only visually appealing but also robust enough for everyday use. The feet, equipped with Velcro tape, provide a secure and stable stand within the vehicle. Furthermore, the pluggable screw terminal greatly simplifies installation and facilitates the removal of the subwoofer when extra space is needed while the detachable connector prevents short circuits by ensuring that no exposed wiring remains in the vehicle.
Features
- Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
- Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
- Equipped with one powerful 250 mm / 10” subwoofer with hand-scooped paper cone for rich, deep bass
- Chassis with 1 x 2 Ohms single voice coil for maximum power output of the amplifier
- Pluggable screw terminal for quick and safe installation and removal
- Feet with Velcro tape for a secure stand in the vehicle
- Sturdy carpet surface with embroidered HELIX logo
Technical data
| IK E10.1-SVC2 – 1 x 2 Ohms | ||
| Power handling RMS | P | 300 Watts |
| Recommended amplifier power | RMS | 150 - 300 Watts |
| Impedance | z | 1 x 2 Ω |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Port tuning frequency | Fb | 43 Hz |
|
Sensitivity |
SPL |
93 dB @ 2.83V / 1m |
| Dimensions (H x W x D) |
187 x 470 x 375 mm |
|
| Integrated subwoofer chassis | HELIX IK W10-SVC2 | |
| Recommended DSP settings | "Self-define" highpass 37 Hz / Q = 1.5; EQ filter: 115 Hz / Q = 0.7 / -2 dB |
Scope of delivery
1 x Downfire enclosure subwoofer IK E10.1-SVC2
1 x Data sheet
